The Architect’s Checklist: 9 Key Components for Building a High-Performance Fiber Optic Network

In fiber optic communication systems, the fiber itself is merely the foundational medium. The true determinants of network stability, maintainability, and testing efficiency often lie in the various fiber optic accessories. From connection and adaptation to splicing, testing, and cleaning, these accessories permeate the entire lifecycle of fiber optic network construction, operation, maintenance, and upgrades. This article systematically outlines common types of fiber optic accessories and their functions to help readers quickly build a comprehensive understanding.

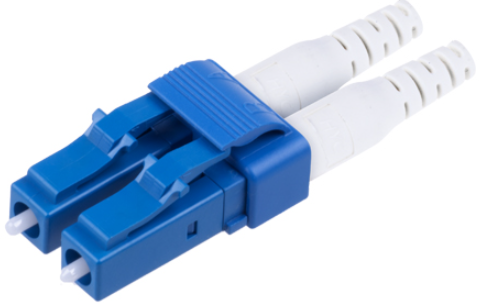

Fiber optic connectors are critical components in fiber network connections, primarily ensuring efficient and stable optical signal transmission at junction points.

Due to non-uniform standardized designs, numerous connector types exist. The most common variants on the market include LC, SC, and ST connectors, each suited for specific application scenarios and installation environments. For a detailed classification, refer to the article "Comprehensive Guide to Fiber Optic Connector Types."

Using fiber connectors eliminates the need for on-site fiber splicing. Their plug-and-play functionality significantly enhances the flexibility and maintenance efficiency of fiber connections. Additionally, fiber connectors typically feature low insertion loss. When paired with specialized ultra-low-loss connectors, they can further reduce overall link loss.

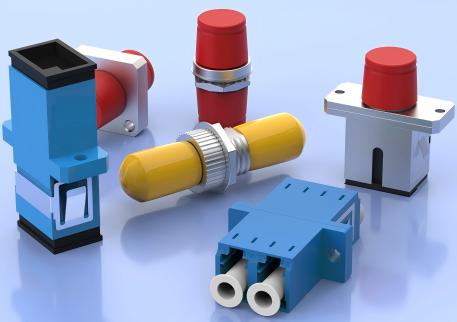

A fiber adapter, also known as a fiber coupler, is a device used to achieve detachable connections between fiber patch cords. Its core function is to precisely align the end faces of two fibers, ensuring maximum coupling of light energy from the transmitting fiber to the receiving fiber, thereby minimizing the impact of connections on system performance.

Fiber adapters are typically categorized into simplex and duplex structures, which determine the number of fiber connections they accommodate. They are also classified by single-mode and multi-mode types. Notably, single-mode connectors often feature an APC (Angled Physical Contact) polish. Due to the angled end face of APC connectors, a flip-style structure is usually required during mating to ensure full contact between the surfaces.

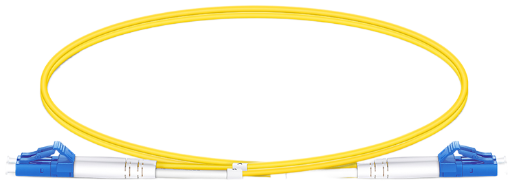

Fiber patch cords are available in single-core or dual-core configurations, as well as single-mode and multi-mode variants. Single-mode patch cords typically have a yellow outer jacket, while multi-mode ones use distinct colors based on fiber grades:

This color-coding facilitates on-site identification and management.

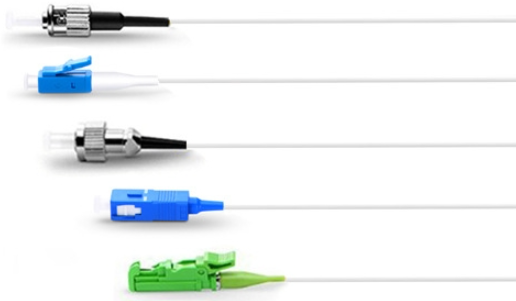

A fiber pigtail is a fiber assembly with a bare fiber on one end and a connector on the other. Typically, cutting a fiber patch cord in half yields two pigtails. Pigtails are commonly used for splicing to optical cables or patch panels, making them essential components in engineering installations.

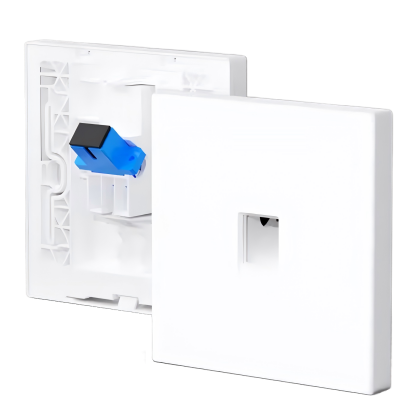

Fiber optic wall outlets are widely used fiber accessories in recent years, serving as terminal devices in fiber networks. Their design resembles common wall outlets or wall-mounted APs in households, typically housing SC or LC fiber adapters internally.

Fiber optic wall outlets enable end-users to achieve full fiber-optic network access, realizing true "Fiber to the Desk" (FTTD). This approach gradually replaces traditional hierarchical cabling (e.g., "server room → weak current room → room") by establishing a direct fiber link from the server room to the terminal desk, eliminating the need for intermediate access switches and significantly simplifying network architecture.

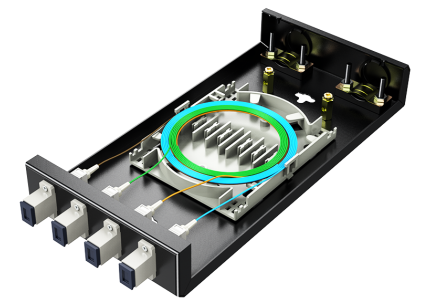

A fiber splice closure is a protective enclosure for connecting and safeguarding optical cables and fiber equipment, usually deployed at the termination point of cabling systems. Its primary functions include organizing, splicing, and shielding fibers within the cable, providing reliable interfaces for downstream device connections.

By shielding splice points and connectors from dust, moisture, and other environmental factors, splice closures ensure long-term stability of fiber systems, making them critical components for reliable operation.

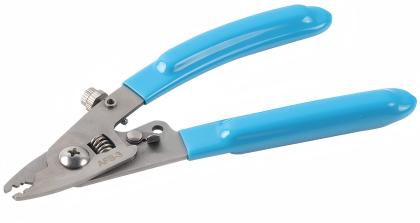

A fiber stripper is a specialized tool for removing the tight-buffered coating from optical fibers, commonly used in preparatory steps before fiber splicing. It performs the stripping operation without damaging the fiber core.

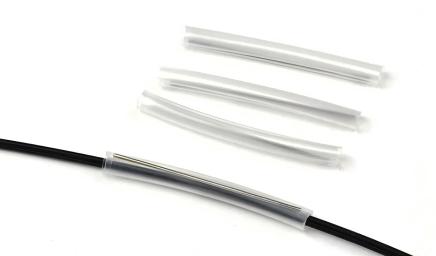

Also known as a fusion splice protector, a heat-shrink sleeve typically consists of three layers: a stainless steel reinforcement rod, an inner meltable tube, and an outer shrinkable sleeve.

During splicing, the exposed fusion point (after coating removal) is highly vulnerable to external forces or environmental damage. The Heat-shrink sleeve provides mechanical reinforcement and environmental protection, ensuring stable and durable fiber connections.

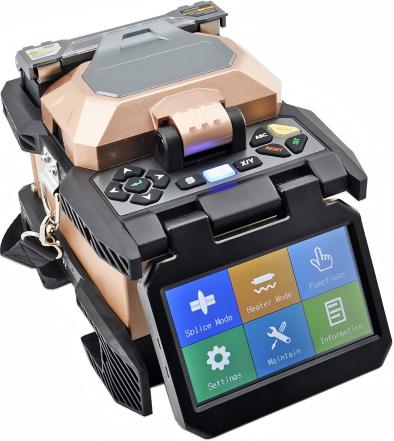

A fusion splicer permanently joins two optical fibers or cables. It employs a high-voltage arc to generate heat, melting the fiber ends. Under precise control, the fibers are fused into a single strand, achieving low-loss, high-reliability connections.

A light source is a testing device used in conjunction with an optical power meter to measure relative loss in fiber links. In fiber-optic communication systems, it serves as a stable and calibrated reference for evaluating link loss, connection loss, and receiver sensitivity, requiring consistent output power and wavelength.

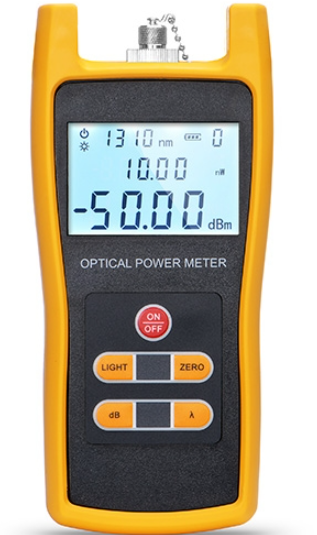

An optical power meter measures absolute optical power and relative loss in fiber links. Paired with a light source, it verifies patch cord loss, checks link continuity, and assesses overall transmission quality.

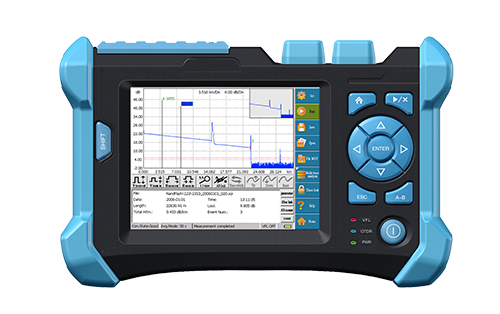

The OTDR is one of the most commonly used fiber optic test instruments, widely applied in the construction, maintenance, and acceptance phases of fiber optic projects.

The OTDR clearly displays the overall characteristics of a fiber link and locates splice points, connection points, and fault locations along the route, making it an indispensable tool for fiber optic operations and maintenance.

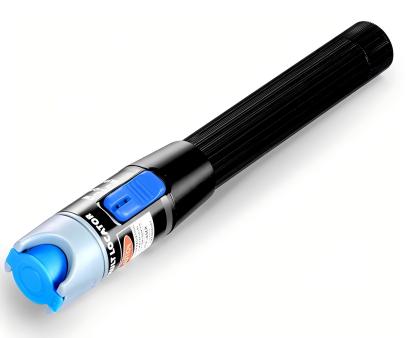

Also called a visual fault locator (VFL) or "red pen," this tool checks fiber continuity and rapidly identifies breaks. When testing:

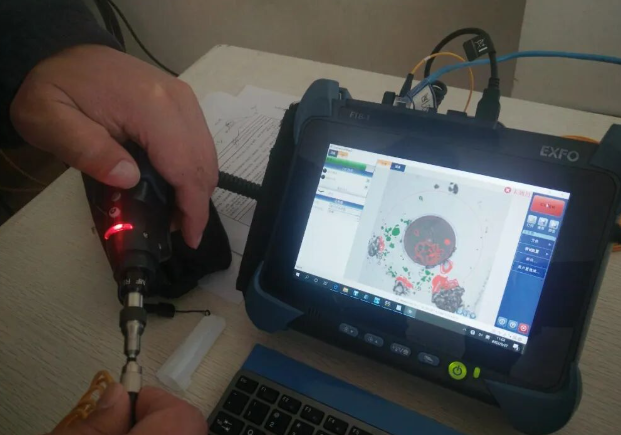

The end-face inspection tool is not only essential equipment for fiber optic patch cord manufacturers but also indispensable in engineering construction and data center operations.

Contaminated or damaged end-faces not only cause signal loss but may also contaminate other optical end-faces they connect to. By magnifying and displaying images of connector end-faces, the inspection tool enables visual assessment of contamination, scratches, or damage.

The fiber optic cassette cleaner features a compact, portable design with a high-density woven cleaning tape, enabling dry cleaning (no alcohol required) that eliminates static and lint.

In optical experiments and manufacturing, anhydrous ethanol, acetone, and isopropyl alcohol are the three most commonly used cleaning solvents.

Anhydrous ethanol is ideal for removing oil and water-soluble stains with high safety; acetone possesses strong degreasing capabilities for stubborn residues but may dissolve certain plastics and coatings; isopropyl alcohol offers a balanced cleaning performance and material compatibility, making it a common daily cleaner in optical labs and production lines.

From connectivity and splicing to testing and cleaning, fiber optic accessories underpin every phase of network deployment and maintenance. Proper selection and standardized use of these tools minimize insertion loss while enhancing stability, serviceability, and longevity, forming the critical foundation for building high-quality fiber optic communication systems.
