The transition to 800G connectivity is no longer a future roadmap—it is a present-day necessity driven by the explosive growth of AI clusters and hyperscale cloud infrastructure. When designing next-generation single-mode fiber optical networks, architects face a critical decision: 800G 2×DR4 or 800G 2×FR4 optical transceiver?
While both solutions facilitate the essential 800G-to-400G breakout, they represent two distinct engineering philosophies—Parallel Optics versus Wavelength Division Multiplexing (WDM). Choosing the right one determines your data center's latency, cabling costs, and scalability.
What Is 800G 2×DR4 Architecture?
The 800G 2×DR4 transceiver solution is built on a foundation of architectural simplicity. It utilizes Parallel Single Mode (PSM) technology, distributing the 800G signal across eight independent channels, each operating at 100G.
Why AI Clusters Choose 800G 2×DR4 Optical Module:
Ultra-Low Latency: By bypassing complex optical multiplexing and demultiplexing, the internal design remains streamlined. This minimizes signal processing time—a non-negotiable requirement for backend GPU networks.
Physical Layer Integrity: The use of MPO-12/APC (Angled Physical Contact) connectors is critical for 800G PAM4 signals, as the angled polish minimizes back-reflection and effectively lowers the Bit Error Rate (BER).
Flexible Breakout: It allows a single 800G port to be split into two 400G DR4 links or even eight 100G DR links, providing high granularity for connecting to various Network Interface Cards (NICs).
Reliability: Fewer internal components often translate to a more straightforward manufacturing process and lower power consumption. This architecture is also natively suited for LPO (Linear Pluggable Optics) technology, which removes the DSP to further reduce power and latency.
The Trade-off: The primary challenge is the fiber count. 800G 2×DR4 module requires dual MPO-12 connectors. In large-scale deployments, the sheer volume of fiber cabling can lead to physical congestion and higher infrastructure CapEx.

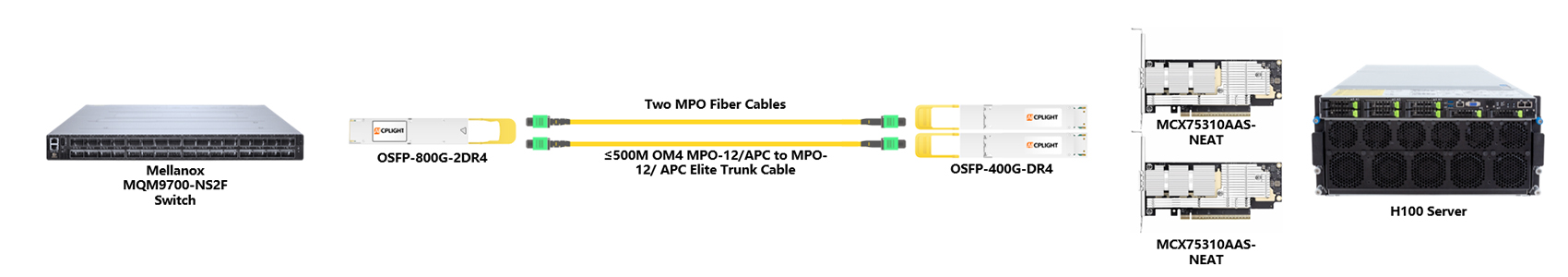

Figure 1: An 800G 2×DR4 breakout architecture, demonstrating how a high-density 800G switch port is split into dual 400G DR4 links via MPO fiber cabling to connect with H100 GPU servers.
What Is 800G 2×FR4 Architecture?
In contrast, 800G 2×FR4 optical module is designed for maximum fiber efficiency. It leverages CWDM4 (Coarse Wavelength Division Multiplexing) to multiplex four distinct wavelengths onto a single fiber pair.
Why Hyperscale Clouds Choose 800G 2×FR4 Optical Module:
Cabling Efficiency: It reduces the required fiber count by 75% compared to parallel solutions. A task that would require eight fibers for DR4 can be handled by just two fibers with FR4.
Extended Reach: Supporting distances up to 2 kilometers, the 800G 2×FR4 transceiver is the ideal candidate for bridging connections across different data halls or inter-room Spine-to-Leaf links.
Infrastructure Compatibility: Since it operates over standard Duplex LC single-mode fiber, it offers a seamless upgrade path for "brownfield" data centers without needing to overhaul existing fiber plants.
Maintenance Simplicity: LC connectors are significantly easier to clean and maintain in the field compared to multi-fiber MPO connectors, reducing operational risk during high-density deployments.
The Trade-off: The internal complexity is higher due to the need for optical filters (Mux/Demux) and more robust DSP (Digital Signal Processing) to manage dispersion over longer distances, which can slightly increase the power envelope per module.

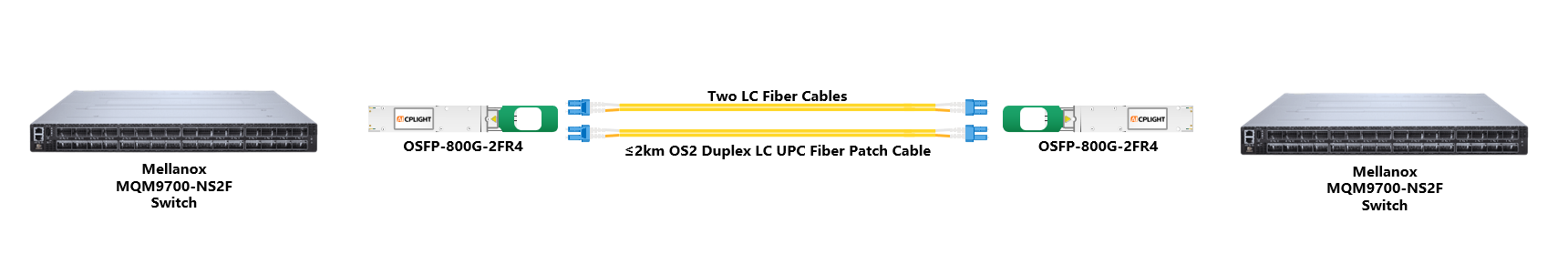

Figure 2: An 800G 2×FR4 optical interconnect architecture, illustrating a high-efficiency connection between two switches using duplex LC single-mode fiber to achieve a transmission reach of up to 2 kilometers.
800G 2×DR4 vs. 800G 2×FR4 Optical Module: What's the Difference?
To help you decide, here is a breakdown of the key technical metrics:
| Feature | 800G 2×DR4 | 800G 2×FR4 | Technical Insight |
|---|---|---|---|
| Optical Technology | Parallel (PSM8) | WDM (CWDM4) | FR4 requires higher wavelength stability. |
| Max Reach | 500 Meters | 2 Kilometers | 2×FR4 is superior for inter-room links. |
| Connector Type | Dual MPO-12 APC | Dual Duplex LC UPC | LC is easier for field maintenance. |
| Latency | Extremely Low | Standard | Crucial for AI GPU synchronization. |
| Best For | AI Clusters, GPU Interconnects | Enterprise Cloud, Core Interconnects | Hybrid strategies are common. |
800G 2×DR4 vs. 800G 2×FR4 Optical Module: How to Choose?
Choosing between 800G 2×DR4 and 800G 2×FR4 optical transceiver depends on your specific network architecture and priorities.
AI-Driven Data Centers (The 800G 2×DR4 Domain)
In environments where East-West traffic dominates—such as distributed AI training—the 800G 2×DR4 optical module is superior. Its deterministic performance ensures that GPU synchronization is not bottlenecked by optical jitter or excessive latency.
Generalized Cloud & Enterprise (The 800G 2×FR4 Domain)
For operators managing a mix of workloads across larger physical distances, the 800G 2×FR4 optical module offers the most balanced TCO. It simplifies cable management and provides the reach necessary for diverse data center topologies.
Summary
The evolution to 800G is not a "one-size-fits-all" race. The most resilient data centers often employ a hybrid strategy:
-
Deploy 800G 2×DR4 optical module within the rack or pod for high-performance compute fabrics.
-
Utilize 800G 2×FR4 optical module for long-distance aggregation and cross-hall interconnections.
As we look toward the 1.6T horizon, understanding these physical layer nuances ensures that your network foundation is not just fast, but also scalable and economically sustainable.
