Fiber polarity is one of the most critical yet often misunderstood concepts in optical networking. In any fiber link, data transmission is directional—signals travel from a transmitter (Tx) to a receiver (Rx). If polarity is incorrect, such as Tx connected to Tx, the link will fail entirely. This makes fiber polarity design essential for reliable data center connectivity, especially in high-speed environments like 40G, 100G, 400G, and 800G networks.
What Is Duplex Fiber Patch Cable Polarity?
In duplex fiber applications, data is transmitted bi-directionally through two fibers, where each end of a fiber is connected to a transmitter and the other end to a receiver. The role of polarity is to ensure this connection is maintained.
As shown in the diagram below, it is easy to see that Tx (B) should always connect to Rx (A), regardless of how many patch panel adapters or cable segments are in the channel. If polarity is not maintained—for example, connecting a transmitter to another transmitter (B to B)—data will not flow.

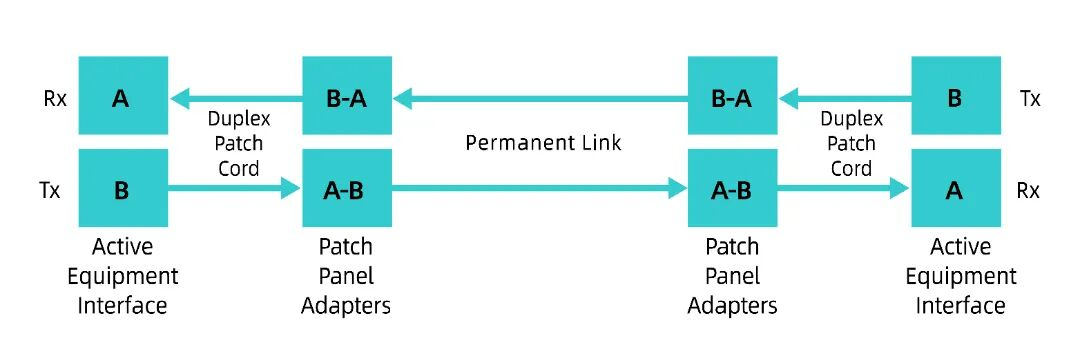

Figure 1: Fiber optic polarity and signal flow between two active equipment interfaces via duplex patch cords and a permanent link, ensuring the transmitter (Tx) on one end connects to the receiver (Rx) on the other.
Duplex Fiber Polarity: A-to-B vs. A-to-A Explained
There are two types of duplex fiber patch cord polarity: A-to-B and A-to-A. To ensure the selection and installation of correct components for maintaining proper polarity, the TIA-568.3-D standard recommends the A-to-B polarity scheme for duplex patch cords.
A-to-B Duplex Patch Cords: A-to-B duplex patch cords shall be of an orientation such that Position A connects to Position B on one fiber, and Position B connects to Position A on the other fiber. Each end of the patch cord shall indicate Position A and Position B if the connector can be separated into its simplex components. For connector designs utilizing latches, the latch defines the positioning in the same manner as the keys.

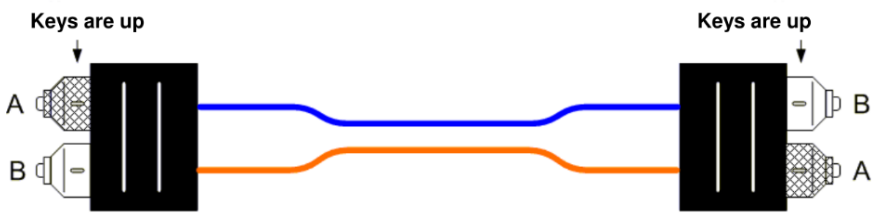

Figure 2: This diagram demonstrates an A-to-B fiber optic patch cord with a "key-up to key-up" orientation, showing the crossover connection where the fiber from position A on one end terminates at position B on the other.
Keying: Each fiber connector features a keyway to prevent rotation and maintain the correct Tx and Rx positions when connectors are mated.
A-to-A Duplex Patch Cords: A-to-A patch cords do not reverse the fiber positions. The A-to-A duplex patch cords shall be of an orientation such that Position A goes to Position A on one fiber, and Position B goes to Position B on the other fiber. The A-to-A duplex patch cords shall be clearly identified (by color or prominent labeling) to distinguish them from A-to-B patch cords.
Note: A-to-A patch cords are not commonly deployed and should only be used when necessary as part of a specific polarity method.

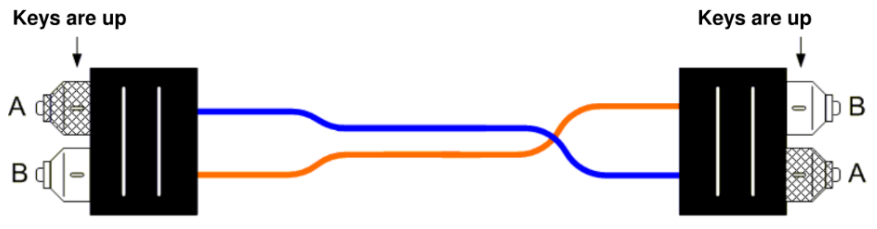

Figure 3: This diagram depicts an A-to-A fiber optic patch cord featuring a "key-up to key-up" configuration, where the internal fibers are crossed to maintain a straight-through mapping of position A to position A and B to B.
MPO Fiber Polarity: Type A vs. Type B vs. Type C
While duplex cable polarity is relatively simple, handling multi-fiber MPO cables and connectors is more complex. Industry standards define three different polarity methods for MPO: Method A, Method B, and Method C. Each method utilizes a different type of MPO cable.
What Are MPO Male and Female Connectors
MPO connectors consist of the fiber, jacket, coupling components, metal ring, pins (PINs), and dust caps.
-
Male connector: Features two PINs.
-
Female connector: Does not have PINs.

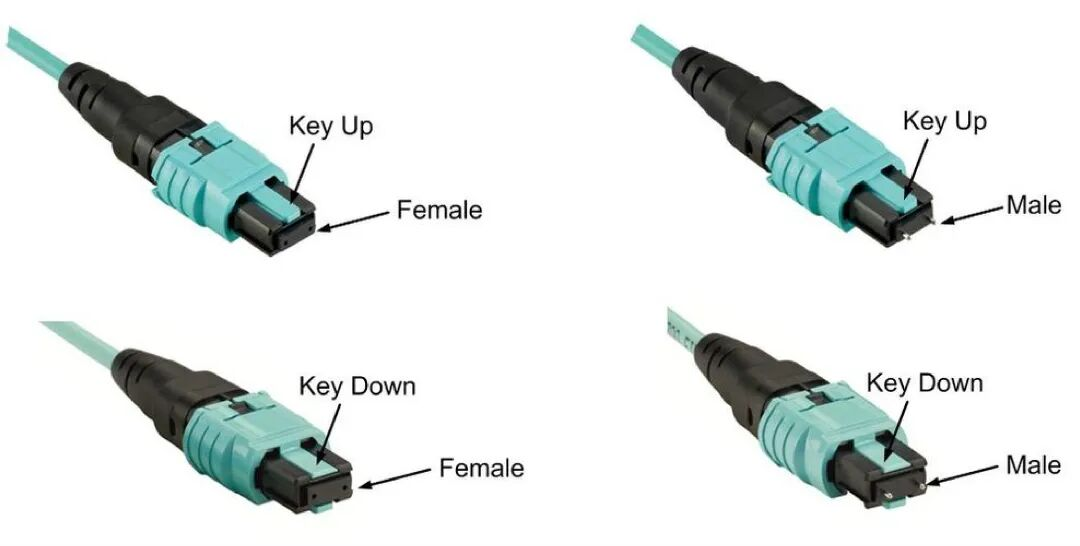

Figure 4: Various configurations of MPO/MTP fiber connectors, identifying the differences between male (pinned) and female (unpinned) interfaces as well as the key-up versus key-down orientation used to define cable polarity.
Connections between MPO connectors are precisely aligned using these PINs; therefore, a connection must always involve one male and one female connector.
Method A (Type A): Straight-Through Polarity
This is the simplest wiring scheme where the fiber positions are maintained from end to end.
Fiber Alignment: The fiber sequence at one end matches the other exactly (Position 1 to 1, Position 12 to 12).
Key Orientation: The connectors use an "Opposite" orientation, meaning one end is Key Up and the other is Key Down.

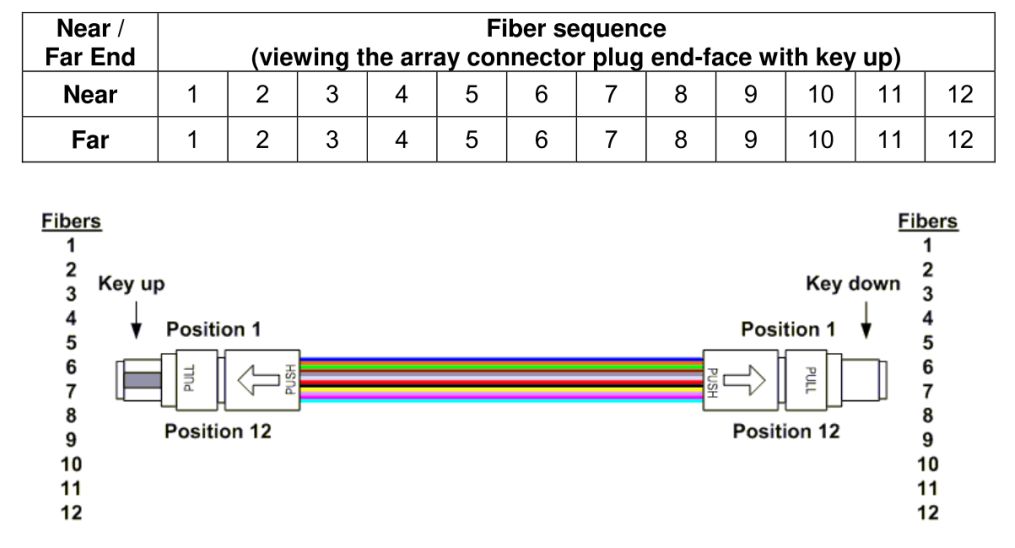

Figure 5: Type-A MPO array patch cord, showing a "key-up to key-down" orientation that results in a straight-through 1-to-1 fiber sequence mapping from the near end to the far end.
Method B (Type B): Reversed Polarity (Recommended)
This method uses a "flip" in the wiring to allow for different hardware configurations.
Fiber Alignment: The fiber sequence is completely reversed. Position 1 at one end connects to Position 12 at the other, and Position 12 connects to Position 1.
Key Orientation: The connectors use a "Same" orientation, meaning both ends are Key Up (or both Key Down).

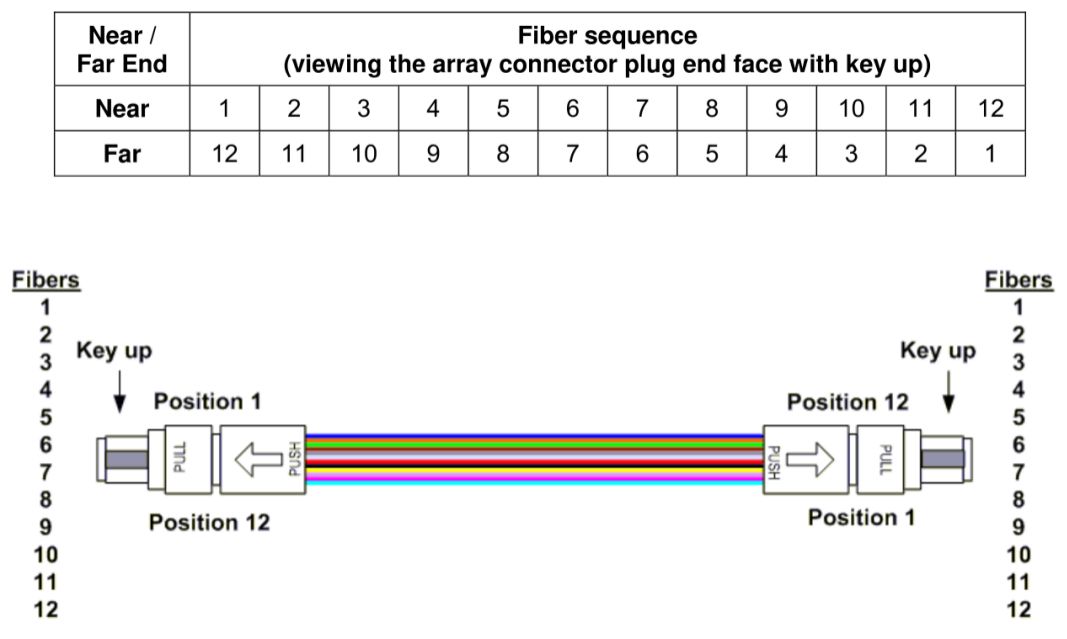

Figure 6: Type-B MPO array patch cord, showing a "key-up to key-up" orientation that creates a flipped fiber sequence where position 1 at the near end maps to position 12 at the far end.
Method C (Type C): Pairwise Crossover
This method is designed to support duplex applications by crossing individual pairs of fibers.
Fiber Alignment: Adjacent pairs are flipped. For example, Position 1 connects to Position 2, and Position 2 connects to Position 1. Similarly, Position 11 connects to 12 and 12 to 11.
Key Orientation: Like Method 1, the keys are "Opposite" (Key Up to Key Down).

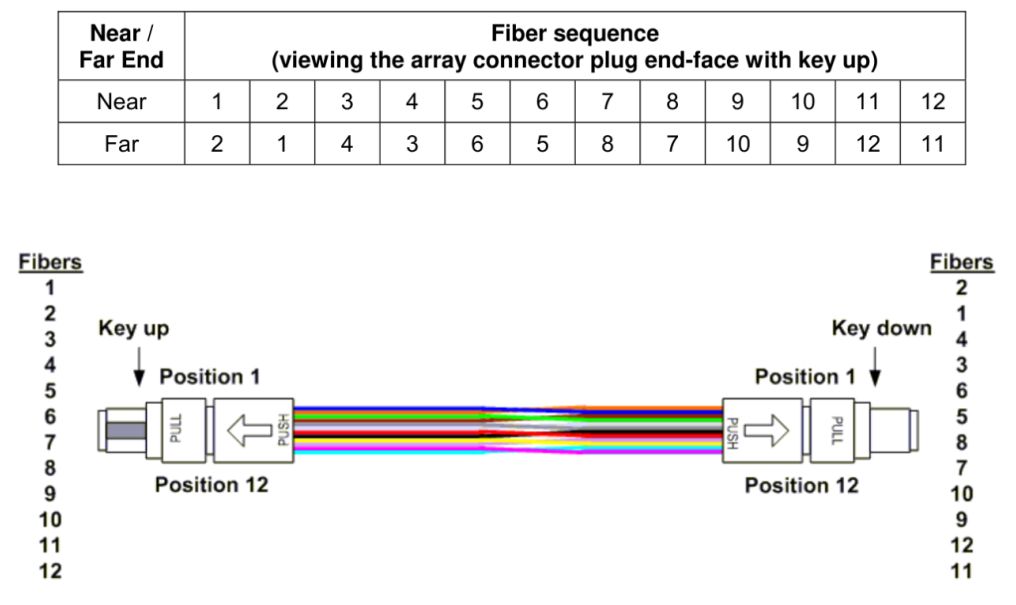

Figure 7: Type-C MPO array patch cord, which utilizes a "key-up to key-down" orientation and a pair-wise flip to map fibers in adjacent pairs (e.g., 1-2 to 2-1) from the near end to the far end.
MPO Polarity Types Summary
| Method | Type | Fiber Sequence | Key Orientation |
|---|---|---|---|
| Method A | Type A (Straight-through) | 1-to-1, 12-to-12. The sequence is identical at both ends. | Opposite: Key Up to Key Down |
| Method B | Type B (Crossover) | 1-to-12, 12-to-1. The sequence is reversed at both ends. | Same: Key Up to Key Up (or Down to Down) |
| Method C | Type C (Pair-wise Crossover) | Adjacent pairs are crossed: 1-to-2, 2-to-1, 11-to-12, 12-to-11. | Opposite: Key Up to Key Down |
Note on Method C: While suitable for duplex applications, Type C does not support parallel 8-fiber 40G and 100G applications (where positions 1-4 are for transmit and 9-12 are for receive). Therefore, this method is not recommended for those specific high-speed applications.
Why MPO Type B Is the Preferred Choice for Modern Data Centers?
In modern data center deployments, Method B (Type B) has emerged as the most widely adopted polarity scheme due to its native support for parallel optics and simplified infrastructure management.
Method B is the industry standard for links utilizing parallel transmission protocols, such as 40GBASE-SR4 and 100GBASE-SR4.
Native Alignment: Because Type B cables utilize a reversed fiber sequence (1-to-12) and a Key Up to Key Up orientation, they automatically align the transmit (Tx) signals from one transceiver with the receive (Rx) ports of the other.
Direct Transceiver Interconnect: This method is the preferred choice for directly connecting two QSFP+ or QSFP28 transceivers without the need for complex internal module re-wiring.
Maintaining polarity consistency is a significant challenge in large-scale fiber deployments.
Symmetry and Consistency: Method B allows for the use of identical Type B components (cables and adapters) throughout the entire link. This symmetry reduces the complexity of inventory management and minimizes the risk of installation errors caused by mixing different cable types.
Scalability: It facilitates high-density interconnects within Leaf-Spine architectures, allowing for rapid scaling of network capacity.
As data centers transition toward 400G (e.g., DR4) and 800G architectures, precise channel matching becomes critical.
Technical Alignment: The "flip" logic inherent in Method B aligns perfectly with the internal optical path designs of most modern high-performance switches and AI compute clusters.
Investment Protection: Adopting a Method B-based cabling system ensures that the physical infrastructure can support next-generation hardware upgrades with minimal reconfiguration.
Comparative Analysis: Why Method B Over Others?
Against Method A (Type A): While Method A is straightforward, it requires different patch cord types (A-to-A and A-to-B) at opposite ends of the link to achieve proper duplex communication. This inconsistency increases the likelihood of human error during maintenance.
Against Method C (Type C): Method C was designed for duplex applications by flipping adjacent pairs. However, it is not recommended for 40G/100G parallel applications because the pair-wise flip disrupts the continuous channel sequence required for parallel signal transmission.
Conclusion
Fiber polarity directly impacts network performance and reliability. While duplex A-to-B remains the standard for simple links, MPO Type B has become the dominant choice for modern data centers. For organizations deploying 40G, 100G, 400G, or 800G networks, adopting a Type B-based MPO cabling system ensures simplicity, scalability, and future readiness.
