Introduction
High-density fiber optic patch panels play a critical role in modern 100G and 400G data center networks, enabling large numbers of fiber connections within limited rack space. However, evaluating these panels requires more than simply counting ports.
Key performance indicators (KPIs) such as port density, insertion loss, return loss, reliability, and environmental durability directly impact signal integrity and long-term network stability.
This guide explains the most important KPIs for high-capacity fiber optic patch panels, outlines common testing methods, and provides practical recommendations for selecting the right solution for data centers, enterprise networks, and edge deployments.
1. Core KPIs for High-Capacity Fiber Optic Patch Panels
1.1 Density-Related KPIs

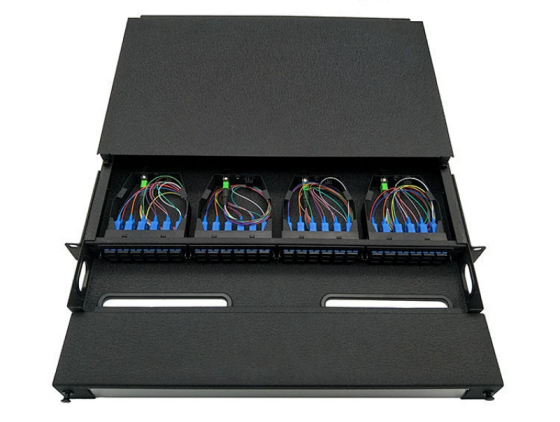

A core requirement for high-capacity scenarios is accommodating and managing more fiber links within limited space, making port density and space efficiency the primary KPIs for assessment. Port density refers to the number of fiber ports a patch panel can house per unit space, typically quantified as "ports per unit height (U)" (1U = 44.45 mm). Common high-capacity patch panel densities include 48 ports/U, 72 ports/U, and 96 ports/U.
Evaluation criteria must align with application scenarios:
-
Data centers should prioritize patch panels with 96 ports/U or higher, ensuring reasonable port arrangement and sufficient operational clearance.
-
Enterprise campuses may opt for 48–72 ports/U products to balance density and maintenance convenience.
Space efficiency should account for the patch panel's depth, width, and installation method. Standard 19-inch rack-compatible panels must ensure compatibility with other equipment to avoid wasted space. Note that higher density is not always better—it must be balanced with thermal performance and ease of access to prevent operational bottlenecks.
1.2 Transmission Performance KPIs
Transmission performance is a core technical metric, directly affecting fiber link quality. Insertion loss (IL) and return loss (RL) are the most critical KPIs:
-
IL measures power attenuation as light passes through the patch panel link. Lower attenuation indicates higher transmission efficiency.
-
RL quantifies reflected signal power relative to incident power at the interface. Higher values (less reflection) reduce signal interference.
International standards dictate:
-
Single-mode fiber patch panels: IL ≤ 0.3 dB, RL ≥ 50 dB.
-
Multi-mode fiber patch panels: IL ≤ 0.2 dB, RL ≥ 35 dB.
For high-capacity transmission, strict IL control is essential to prevent excessive cumulative attenuation in cascaded links, which compromises distance and stability. Consistency is also critical: IL variation across ports should be ≤ 0.1 dB to ensure uniform performance.
1.3 Reliability and Durability KPIs
High-capacity fiber systems often operate for 10–15 years, making reliability and durability vital for long-term stability. Key metrics include:
-
Mating cycle life: The number of plugging/unplugging operations a connector withstands while maintaining performance.
-
Environmental resilience: Performance stability under temperature fluctuations, humidity, vibration, and dust.
Evaluation standards:
-
High-quality patch panels should endure ≥1,000 mating cycles, with post-test IL increase ≤ 0.1 dB and no significant RL degradation.
-
Operating temperature: -10°C to 60°C; humidity: 10–90% RH (non-condensing).
-
Vibration resistance: 10–50 Hz at 1g acceleration without performance fluctuation.
-
Material robustness: Cold-rolled steel or aluminum alloy for corrosion/aging resistance.
2. KPI Testing Methods for High-Capacity Patch Panels
2.1 Insertion Loss Testing
Insertion loss testing is the core practical procedure for verifying the transmission performance of distribution frames. The accuracy of its test results directly impacts the validity of KPI assessments. Prior to testing, establish instrument selection criteria. Prioritize high-precision optical power meters paired with light sources (suitable for single-mode/multi-mode wavelengths, e.g., 1310nm, 1550nm for single-mode; 850nm, 1300nm for multi-mode). Instrument accuracy must reach ±0.01dB to ensure test errors remain within acceptable limits.
2.2 High-Density Port Consistency Testing
For high-density, high-capacity fiber distribution frames, testing individual ports is inefficient. Batch consistency testing methods must be employed. A common approach utilizes fiber test matrix switches to enable automatic multi-port switching. This allows simultaneous insertion loss and return loss testing across multiple ports, significantly boosting efficiency. Calibrate the test matrix before testing to prevent introducing additional loss during switching.
2.3 Environmental Reliability Testing
Environmental reliability testing must simulate the actual operating conditions of high-capacity fiber optic distribution frames, such as high-temperature environments in data centers and temperature/humidity fluctuations in outdoor equipment rooms. Common test items include thermal cycling, humidity testing, and vibration testing.
-
Thermal cycling: -10°C to 60°C, 5 cycles (2 hours per cycle), monitoring IL variations.
-
Humidity testing: 48 hours at 40°C/90% RH, assessing performance stability.
-
Vibration testing: 10–50 Hz at 1g for 30 minutes, checking for loosening or degradation.
3. KPI-Based Selection for Application Scenarios
High-capacity fiber distribution frame selection must center on KPI evaluation, establishing metric priorities based on specific application scenarios.
-
Data centers: Focus on density (≥96 ports/U) and transmission (IL ≤ 0.3 dB) for 100G/400G needs, while ensuring easy access for maintenance.
-
Enterprise campuses: Balance density (48–72 ports/U) and cost, emphasizing reliability for standard environments.
-
Outdoor edge nodes: Prioritize environmental resilience (weatherproofing, corrosion resistance) and durability (≥1,000 cycles).
Additionally, ensure compatibility between fiber optic patch panels and ODFs by matching interface types and installation dimensions to prevent compatibility issues.
