OSFP vs. QSFP-DD: Selection Guide for 400G/800G Networks

As networks scale to 400G and 800G for AI workloads, the debate between OSFP and QSFP-DD is no longer just about form factors—it's about thermal limits, upgrade paths, and long-term scalability. Understanding the difference between OSFP vs QSFP-DD is essential if you are planning an AI data center, upgrading to 800G optics, or evaluating future 1.6T readiness.

QSFP-DD, or Quad Small Form-factor Pluggable Double Density, extends the traditional QSFP interface by doubling the number of electrical lanes from 4 to 8. This allows QSFP-DD to support 200G, 400G, and 800G optics while maintaining a familiar footprint.

One of the biggest advantages of QSFP-DD is backward compatibility. Network operators can reuse existing QSFP28 optics, cables, and infrastructure, which significantly reduces upgrade costs. This is particularly important in large-scale enterprise data centers where replacing cabling systems would be extremely expensive.

QSFP-DD also enables high port density. Because its physical size remains compact, switches can support a larger number of ports, which is beneficial for spine-leaf architectures where density directly affects cost per bit.

For these reasons, QSFP-DD remains the dominant form factor in current 400G deployments and early-stage 800G optics adoption.

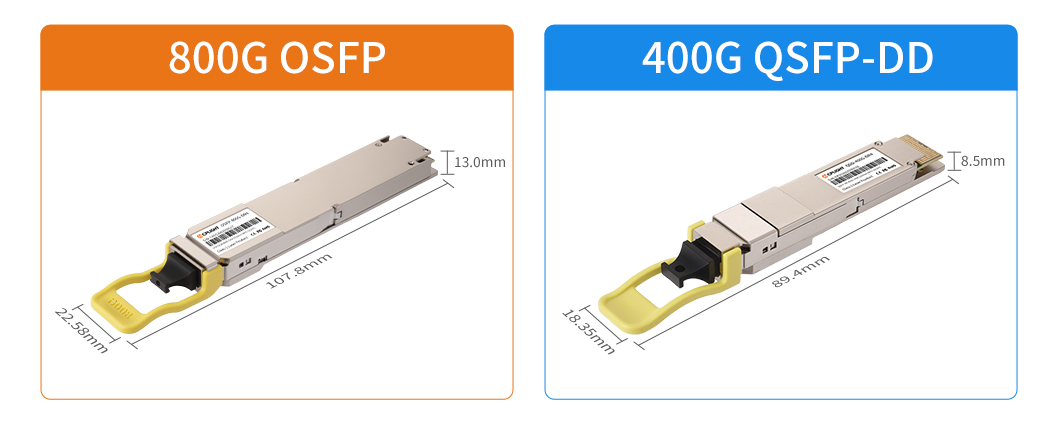

OSFP, or Octal Small Form-factor Pluggable, is specifically engineered for high-performance networking environments where power consumption and heat generation are major constraints. Unlike QSFP-DD, OSFP introduces a larger mechanical design combined with an integrated heatsink. This allows the module to dissipate heat more efficiently, supporting higher power levels that are common in 800G optics and expected in 1.6T optical modules.

In AI data centers, where GPU clusters generate bursty and high-throughput traffic, thermal stability becomes critical. Even minor overheating can lead to performance throttling or packet loss, directly affecting training efficiency. OSFP addresses this challenge by providing a more robust thermal solution and improved signal integrity.

As a result, OSFP is increasingly adopted in AI networking architectures, high-performance computing environments, and next-generation 800G Ethernet deployments.

When comparing OSFP vs QSFP-DD, the core difference lies in the trade-off between backward compatibility and performance headroom.

QSFP-DD is built as an evolution of the QSFP ecosystem, which means it prioritizes compatibility with existing QSFP28 and QSFP56 modules. This makes it highly attractive for enterprises that want to upgrade from 100G to 400G or even 800G without redesigning their entire infrastructure.

OSFP, on the other hand, is designed without legacy constraints. It adopts a larger form factor with integrated thermal management, enabling significantly better heat dissipation and signal integrity. This makes OSFP more suitable for high-power 800G optics and future 1.6T optical modules.

In practical deployments, QSFP-DD is often associated with density and cost efficiency, while OSFP is associated with performance and scalability in AI and HPC environments.

Thermal performance is one of the most important factors when evaluating OSFP vs QSFP-DD, especially for 800G optics.

QSFP-DD modules typically operate within a lower power envelope and rely heavily on the switch chassis for cooling. As data rates increase, this dependency can become a limitation, particularly in dense deployments where airflow is constrained.

OSFP, by contrast, is designed to handle higher power consumption. Its integrated heatsink enables more efficient heat dissipation, reducing the thermal burden on the switch and improving overall system stability.

This difference becomes especially significant in AI data centers, where sustained high workloads push network components to their limits. In such environments, OSFP provides a clear advantage in maintaining consistent performance.

Another critical aspect of OSFP vs QSFP-DD is signal integrity at ultra-high speeds.

As networks move beyond 800G toward 1.6T, maintaining signal quality becomes increasingly challenging. The larger physical spacing in OSFP modules helps reduce crosstalk and electromagnetic interference, which are key factors affecting high-speed data transmission.

QSFP-DD, while capable of supporting 800G optics, operates closer to its physical and thermal limits. This makes future scalability more challenging compared to OSFP.

For organizations planning long-term infrastructure investments, OSFP offers a more future-proof path, especially in environments where 1.6T adoption is expected.

Choosing between OSFP vs QSFP-DD depends largely on your deployment scenario and long-term strategy.

If your priority is to upgrade existing infrastructure while minimizing cost and complexity, QSFP-DD is the more practical choice. Its backward compatibility and high port density make it ideal for enterprise networks and gradual upgrades from 100G to 400G.

If your focus is on building a high-performance AI data center or preparing for 800G and beyond, OSFP is the better option. Its superior thermal design and scalability provide a more stable foundation for demanding workloads.

In essence, QSFP-DD supports continuity, while OSFP enables future growth.

The debate between OSFP vs QSFP-DD reflects a broader shift in networking priorities. As data centers evolve to support AI workloads and ultra-high-speed interconnects, the limitations of traditional designs are becoming more apparent.

QSFP-DD remains a strong choice for compatibility and cost-effective scaling, particularly in existing environments. However, OSFP is emerging as the preferred solution for next-generation networks where thermal performance, signal integrity, and scalability are critical.

Understanding the difference between OSFP vs QSFP-DD is not just about choosing a form factor—it is about aligning your infrastructure with the future of high-speed networking.

Pro Tip: Always verify your switch's physical port type before ordering. An OSFP module will not physically fit into a QSFP-DD slot, and vice versa. Matching your optics to your hardware vendor's ecosystem is the first step to a successful deployment.
