5m (16ft) NVIDIA Compatible 100G QSFP28 Passive Direct Attach Copper Twinax Cable
5m (16ft) NVIDIA Compatible 100G QSFP28 Passive Direct Attach Copper Twinax Cable
5m (16ft) NVIDIA Compatible 100G QSFP28 Passive Direct Attach Copper Twinax Cable
P/N: QSFP-100G-CU
US$40.00
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 0.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Minimum Bend Radius 33.5mm for Flexible Routing
Simplifies the Patching and Offers a Cost-effective Way for Short Links
Hot Pluggable QSFP28 MSA Compliant
Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
Class 1 FDA Laser Safety and RoHS-6 Compliant
See more
Specifications
Q&A
Reviews
Resources
5m (16ft) NVIDIA Compatible 100G QSFP28 Passive Direct Attach Copper Twinax Cable

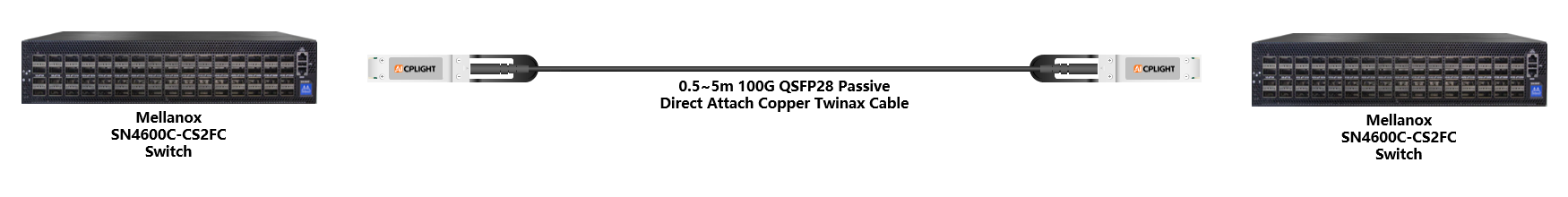

The 100G QSFP28 Passive Direct Attach Copper Twinax Cable offers a cost-effective solution for establishing a 100-Gigabit link between switches' QSFP-100G ports within racks and across adjacent racks. This Direct Attach Copper cable provides low insertion loss and ultra-low crosstalk. It complies with IEEE 802.3, SFF-8662, and hot-pluggable QSFP28 MSA standards, ensuring compatibility and reliability.With its power-efficiency, this cable delivers reliable connectivity for short-distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Specifications
Part Number
QSFP-100G-CU
Vendor Name
CPLIGHT
Form Factor
QSFP28 to QSFP28
Max Data Rate
100Gbps
Minimum Bend Radius
33.5mm
Wire AWG
30AWG
Cable Length
5m (16ft)
Jacket Material
PVC (OFNR)
Cable Type
Passive Twinax
MTBF
≈50 Million Hours
Power Consumption
≤0.5W
Power Supply
3.3V
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Protocols
IEEE 802.3,QSFP28 MSA, SFF-8662
Media
Copper
Application
100G Ethernet
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Features
Questions & Answers
edit icon Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
edit icon Write a review
all (0)
Resources
