3m (10ft) Generic Compatible 200G QSFP56 Active Optical Cable
P/N: Q56-200G-A
US$1019.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Semtech Chip and Max. Power Consumption 4.5W
Minimum Bend Radius 30mm Enables Flexible Routing and Maximum Air flow Cooling
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
4x 50G PAM4 Retimed 200GAUI-4 Electrical Interface
Hot Pluggable QSFP56 MSA Compliant
Class 1 Laser Safety
See more
Specifications
Q&A
Reviews
Resources
3m (10ft) Generic Compatible 200G QSFP56 Active Optical Cable
The 200G QSFP56 active optical cable is designed for use in 200 Gigabit Ethernet links over OM3 multimode fiber, it contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s. This active optical cable is compliant with IEEE 802.3, SFF-8665, SFF-8636, QSFP56 MSA.
Specifications
Part Number
Q56-200G-A
Vendor Name
CPLIGHT
Form Factor
QSFP56 to QSFP56
Max Data Rate
200Gbps
Minimum Bend Radius
30mm
Cable Length
3m (10ft)
Jacket Material
LSZH
Cable Type
OM3
Receiver Type
PIN
Transmitter Type
VSCEL
Wavelength
850nm
Power Consumption
≤4.5W
Modulation Format
PAM4
Power Supply
3.3V
Commercial Temperature Range
0 to 70°C (32 to 158°F)
DDM/DOM
Supported
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Protocols
IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636
MTBF
≈3.2 Million Hours
Warranty
5 Years
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line

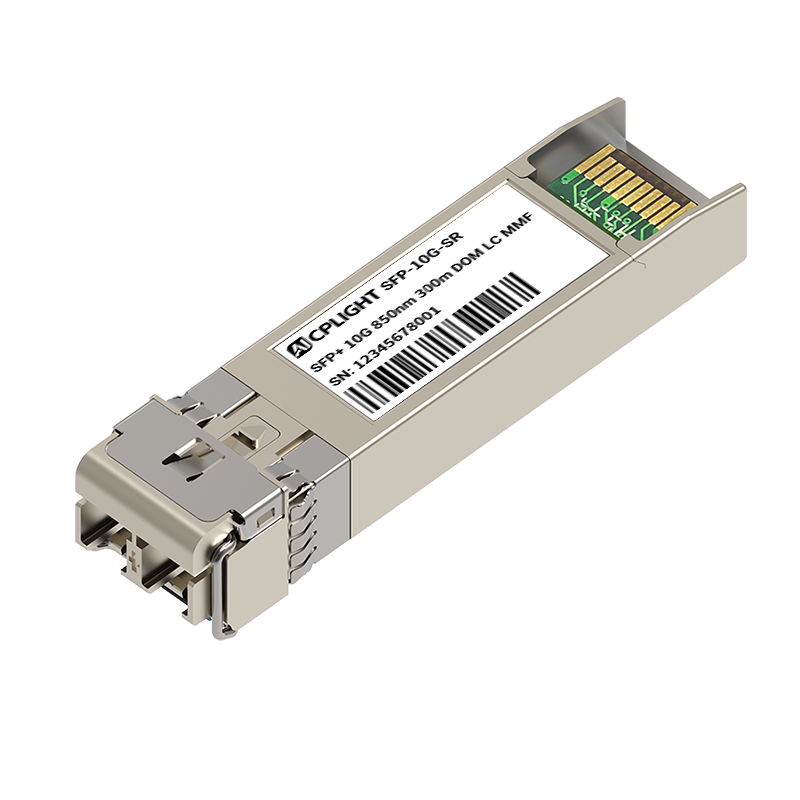

Arista Compatible 10GBASE-SR SFP+ 10G 850nm 300m Duplex LC/UPC MMF Transceiver Module
US$59.00
100G QSFP28 Passive DAC, 1m (3ft)
US$40.00
NVIDIA/Mellanox Compatible 400G QSFP112 SR4 50m 850nm MPO-12/APC Transceiver Module
US$2900.00
Ciena Compatible 10GBASE-LR SFP+ 10G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
US$98.00
H3C Compatible 25GBASE-SR SFP28 25G 850nm 100m Duplex LC/UPC MMF Transceiver Module
US$135.00

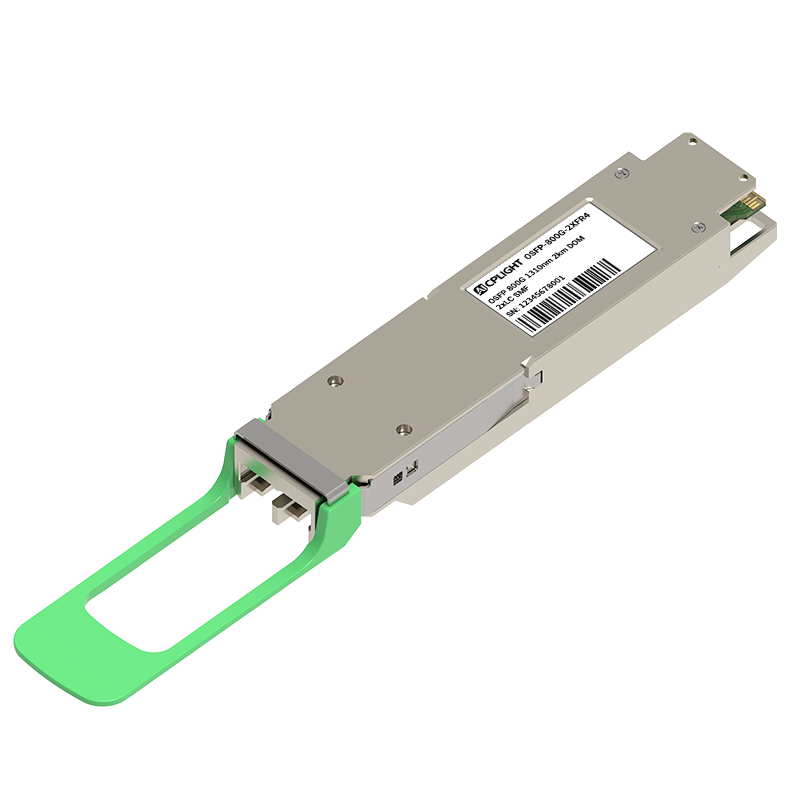

Arista Compatible 800G OSFP Finned Top OSFP 2x FR4 2km 1310nm Dual LC/UPC, Finned Top
