30m (98ft) Ciena Compatible 100G QSFP28 Active Optical Cable
P/N: QSFP-100G-A
US$199.00
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 2.2W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Minimum Bend Radius 30mm for Flexible Routing
Simplifies the Patching and Offers a Cost-effective Way for Short Links
Hot Pluggable QSFP28 MSA Compliant
Class 1 FDA Laser Safety and RoHS Compliant
See more
30m (98ft) Ciena Compatible 100G QSFP28 Active Optical Cable

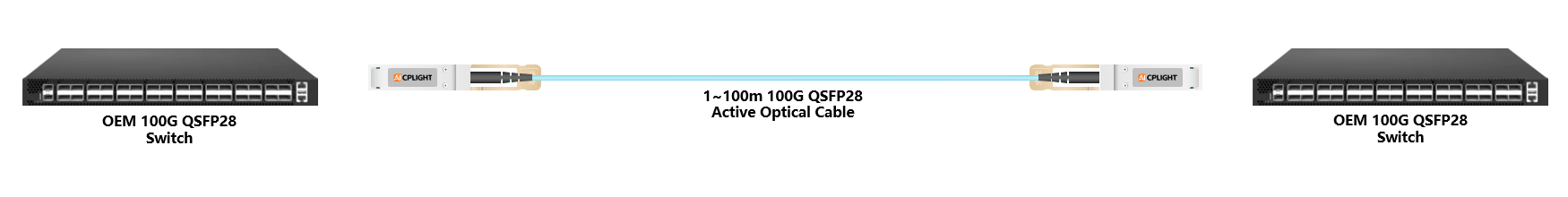

The Ciena QSFP-100G-AOC1M Compatible QSFP28 Active Optical Cables are fiber assemblies with QSFP28 connectors designed for direct-attach connections over Multi-Mode Fiber (MMF). These AOCs comply with hot-pluggable QSFP28 MSA and RoHS-6 standards, ensuring compatibility and adherence to environmental regulations. By offering a cost-efficient alternative to discrete optical transceivers and patch cables, these AOCs are ideal for establishing 100Gbps connections within racks and adjacent racks. Active optical cables provide a lightweight and slim alternative to copper cables, simplifying cable management.
Specifications
Part Number
QSFP-100G-A
Vendor Name
CPLIGHT
Form Factor
QSFP28 to QSFP28
Max Data Rate
100Gbps
Minimum Bend Radius
30mm
Cable Length
30m (98ft)
Jacket Material
PVC (OFNR)
Cable Type
Optical Cable
Receiver Type
PIN
Transmitter Type
VSCEL
Wavelength
850nm
Power Consumption
≤2.2W
MTBF
≈50 Million Hours
Power Supply
3.3V
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Protocols
IEEE 802.3 bm, SFF-8665
Application
100G Ethernet
Warranty
5 Years
