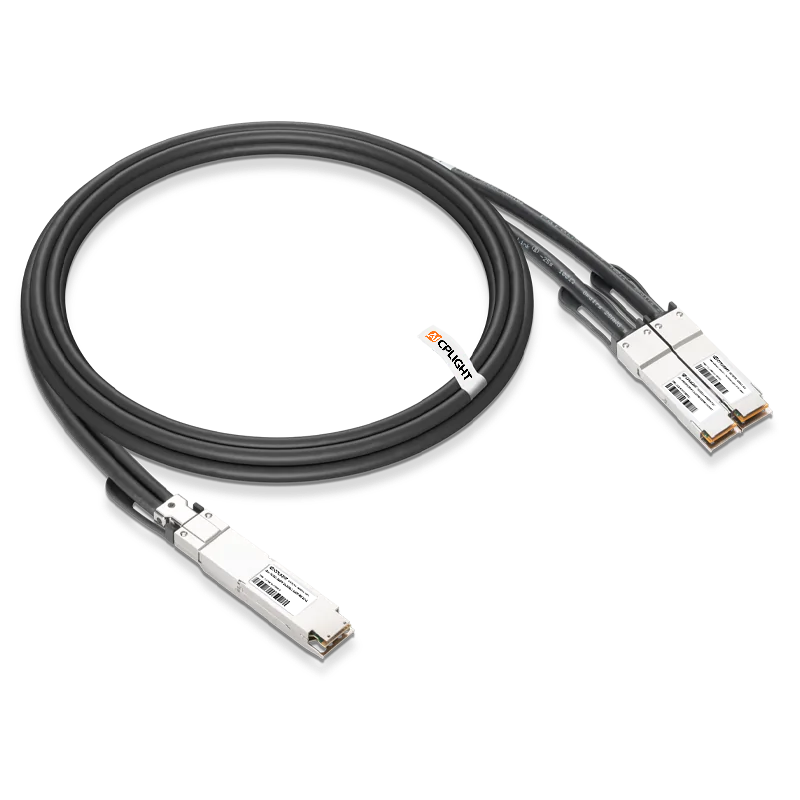

1m (3ft) Generic Compatible 400G OSFP Finned Top to 2 x 200G QSFP56 Passive Direct Attach Copper Breakout Cable
P/N: O2Q56-400G-CU
US$139.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 0.1W Each OSFP and QSFP56 Ends
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Simplifies Patching and Offers a Cost-effective Way for Short Links
Supports 400G to 2x 200G Ethernet Interoperability
Hot Pluggable OSFP MSA Compliant
Based on 50G-PAM4 Modulation
Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
See more
Specifications
Q&A
Reviews
Resources
1m (3ft) Generic Compatible 400G OSFP Finned Top to 2 x 200G QSFP56 Passive Direct Attach Copper Breakout Cable
The OSFP to 2x QSFP56 cable assemblies are high performance, high bandwidth and cost effective interconnect solutions. OSFP pluggable solutions enable 400G standard applications with different data rates. It is fully compliant with OSFP MSA, CMISRev4.0, IEEE802.3cd, SFF-8436, SFF-8665, SFF-8679, and SFF-8636 standards, ideal for 400G Ethernet application.
Specifications
Part Number
O2Q56-400G-CU
Vendor Name
CPLIGHT
Form Factor
OSFP (Finned Top) to 2x QSFP56
Max Data Rate
400Gbps
Media
Copper
Cable Type
Passive Twinax
Cable Length
1m (3ft)
Wire AWG
30AWG
Minimum Bend Radius
34.5mm
Power Consumption
≤0.1W
Jacket Material
PVC (OFNR)
Temperature
0 to 70°C (32 to 158°F)
Modulation Technology
PAM4
Application
400G Ethernet
Protocols
OSFP MSA, CMISRev4.0, IEEE802.3cd, SFF-8436, SFF-8665, SFF-8679, SFF-8636
Warranty
5 Years
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
Brocade Compatible 100GBASE-CWDM4 QSFP28 100G 1310nm 2km DOM Duplex LC/UPC SMF Transceiver Module
US$760.00

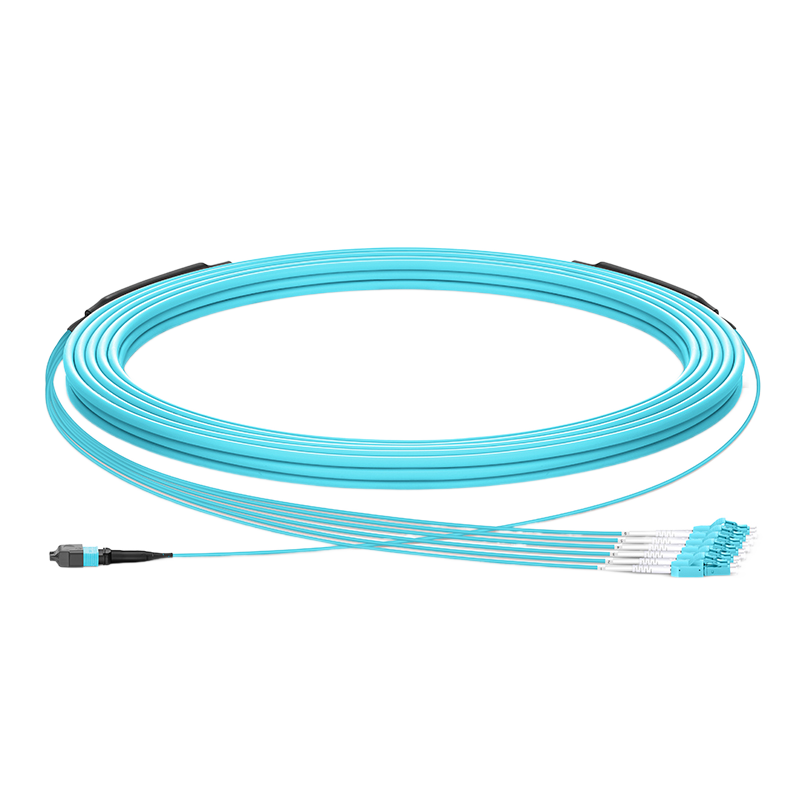

MTP-12 to LC UPC Harness, Female, 12 Fibers, OM3, Type B
