3m(10ft) Cisco Compatible 800G OSFP Finned Top to 2 x 400G OSFP Flat Top Ethernet Passive Direct Attach Copper Breakout Cable
3m(10ft) Cisco Compatible 800G OSFP Finned Top to 2 x 400G OSFP Flat Top Ethernet Passive Direct Attach Copper Breakout Cable
3m(10ft) Cisco Compatible 800G OSFP Finned Top to 2 x 400G OSFP Flat Top Ethernet Passive Direct Attach Copper Breakout Cable
P/N: O800-2O400-C3
$143.00
1
Solds
5
Reviews
1
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Minimum Bend Radius 72mm for Flexible Routing
Support 2x 400G Breakout for Higher Port Density
Simplifies Patching and Offers a Cost-effective Way for Short Links
Hot Pluggable OSFP MSA Compliant
Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
High-Speed Connectivity Compliant to IEEE 802.3ck and CMIS v4.0
See more
Specifications
Certification
Connectivity Solutions
Comparison Table
Q&A
Reviews
Resources
3m(10ft) Cisco Compatible 800G OSFP Finned Top to 2 x 400G OSFP Flat Top Ethernet Passive Direct Attach Copper Breakout Cable
The 800G OSFP Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with OSFP MSA(Multi-Source Agreement) and IEEE 802.3ck standards. It provides a high-speed connection of an 800G OSFP port on one end and two 400G OSFP ports on the other end. Each end contains EEPROM coding that offers product identification and characteristics to the host system. It is power-efficient and suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.
Specifications
Connector Type
OSFP(Finned Top) to 2x OSFP(Flat Top)
Data Rate
850Gbps to 2x 425Gbps
Media
Copper
Cable Type
DAC
Cable Length
1m~3m(3ft~10ft)
Outer Diameter
1m@AWG 30 1.5m~3m@AWG 26
Jacket Material
PVC
Minimum Bend Radius
23mm@AWG 30 33mm@AWG 26
Power Consumption
≤0.1W
Case Operating Temperature
0 to 70°C (32 to 158°F)
Protocol
2x 400G Breakout Ethernet 2x 400G RoCE 2x 400G Infiniband NDR
Application
Switch to NIC
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Connectivity Solutions

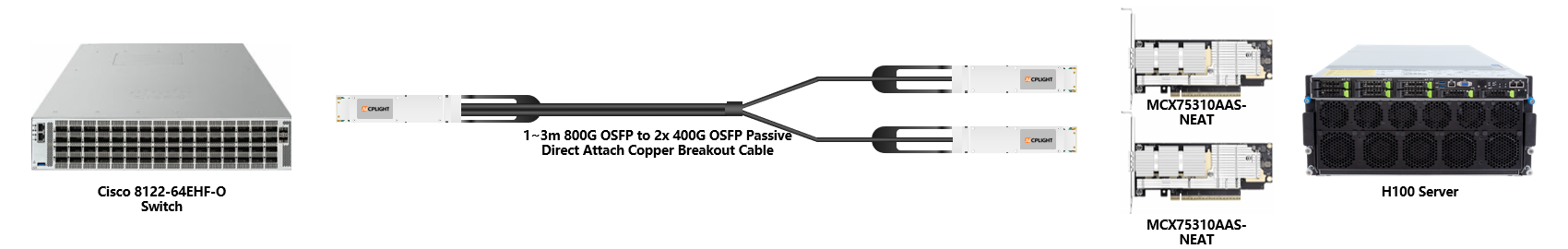

Cisco 400G RoCE links：800G OSFP to 2×400G OSFP
All
Cisco 400G RoCE links：800G OSFP to 2×400G OSFP
Comparison Table
Cisco Compatible 800G OSFP Finned Top to 4x200G OSFP Finned Top NDR Passive Breakout DAC, 1m(3ft)
O800-4O200-C1
Cisco Compatible 800G OSFP Finned Top to 2x 400G OSFP Flat Top Passive Breakout DAC, 1m(3ft)
O800-2O400-C1
Cisco Compatible 800G OSFP Finned Top Passive DAC, 1m (3ft)
O800-O800-C1
Cisco Compatible 800G OSFP Finned Top to 2x 400G QSFP112 Passive Breakout DAC, 1m(3ft)
O800-2Q400-C1
Cisco Compatible 800G OSFP Finned Top to 4x 200G QSFP112 Passive Breakout DAC, 1m (3ft)
O800-4Q200-C1
Connector Type OSFP(Finned Top) to 4x OSFP(Flat Top)OSFP(Finned Top) to 2x OSFP(Flat Top)OSFP(Finned Top) to OSFP(Finned Top)OSFP(Finned Top) to 2x QSFP112OSFP(Finned Top) to 4x QSFP112
Data Rate 850Gbps to 4x 212.5Gbps850Gbps to 2x 425Gbps850Gbps to 850Gbps850Gbps to 2x 425Gbps850Gbps to 4x 212.5Gbps
Media CopperCopperCopperCopperCopper
Cable Type DACDACDACDACDAC
Cable Length 1m~3m(3ft~10ft)1m~3m(3ft~10ft)0.5m~3m(2ft~10ft)1m~3m(3ft~10ft)1m~3m(3ft~10ft)
Outer Diameter 1m~3m@AWG 281m@AWG 30 1.5m~3m@AWG 260.5M~1m@AWG 30 1.5m~3m@AWG 261m~3m@AWG 281m~3m@AWG 28
Jacket Material PVCPVCPVCPVCPVC
Minimum Bend Radius 25mm@AWG 2823mm@AWG 30 33mm@AWG 2623mm@AWG 30 33mm@AWG 2625mm@AWG 2825mm@AWG 28
Power Consumption ≤0.1W≤0.1W≤0.1W≤0.1W≤0.1W
Case Operating Temperature 0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Protocol 4x 200G Breakout Ethernet 4x 200G RoCE 4x 200G Infiniband NDR2002x 400G Breakout Ethernet 2x 400G RoCE 2x 400G Infiniband NDR800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR2x 400G Breakout Ethernet 2x 400G RoCE 2x 400G Infiniband NDR4x 200G Breakout Ethernet 4x 200G RoCE 4x 200G Infiniband NDR200
Application Switch to NICSwitch to NICSwicth to SwitchSwitch to NICSwitch to NIC
Connector Type
Data Rate
Media
Cable Type
Cable Length
Outer Diameter
Jacket Material
Minimum Bend Radius
Power Consumption
Case Operating Temperature
Protocol
Application
Cisco Compatible 800G OSFP Finned Top to 4x200G OSFP Finned Top NDR Passive Breakout DAC, 1m(3ft)
O800-4O200-C1
Cisco Compatible 800G OSFP Finned Top to 2x 400G OSFP Flat Top Passive Breakout DAC, 1m(3ft)
O800-2O400-C1
Cisco Compatible 800G OSFP Finned Top Passive DAC, 1m (3ft)
O800-O800-C1
Cisco Compatible 800G OSFP Finned Top to 2x 400G QSFP112 Passive Breakout DAC, 1m(3ft)
O800-2Q400-C1
Cisco Compatible 800G OSFP Finned Top to 4x 200G QSFP112 Passive Breakout DAC, 1m (3ft)
O800-4Q200-C1
OSFP(Finned Top) to 4x OSFP(Flat Top)
OSFP(Finned Top) to 2x OSFP(Flat Top)
OSFP(Finned Top) to OSFP(Finned Top)
OSFP(Finned Top) to 2x QSFP112
OSFP(Finned Top) to 4x QSFP112
850Gbps to 4x 212.5Gbps
850Gbps to 2x 425Gbps
850Gbps to 850Gbps
850Gbps to 2x 425Gbps
850Gbps to 4x 212.5Gbps
Copper
Copper
Copper
Copper
Copper
DAC
DAC
DAC
DAC
DAC
1m~3m(3ft~10ft)
1m~3m(3ft~10ft)
0.5m~3m(2ft~10ft)
1m~3m(3ft~10ft)
1m~3m(3ft~10ft)
1m~3m@AWG 28
1m@AWG 30 1.5m~3m@AWG 26
0.5M~1m@AWG 30 1.5m~3m@AWG 26
1m~3m@AWG 28
1m~3m@AWG 28
PVC
PVC
PVC
PVC
PVC
25mm@AWG 28
23mm@AWG 30 33mm@AWG 26
23mm@AWG 30 33mm@AWG 26
25mm@AWG 28
25mm@AWG 28
≤0.1W
≤0.1W
≤0.1W
≤0.1W
≤0.1W
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
4x 200G Breakout Ethernet 4x 200G RoCE 4x 200G Infiniband NDR200
2x 400G Breakout Ethernet 2x 400G RoCE 2x 400G Infiniband NDR
800 Gigabit Ethernet 800G RoCE 2x 400G Infiniband NDR
2x 400G Breakout Ethernet 2x 400G RoCE 2x 400G Infiniband NDR
4x 200G Breakout Ethernet 4x 200G RoCE 4x 200G Infiniband NDR200
Switch to NIC
Switch to NIC
Swicth to Switch
Switch to NIC
Switch to NIC
