2m (7ft) Generic Compatible 800G OSFP Finned Top to 2 x 400G QSFP112 Passive Direct Attach Copper Breakout Cable
P/N: O2Q112-800G-CU
US$299.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 0.1W
Minimum Bend Radius 40.5mm for Flexible Routing
Support 2x 400G Breakout for Higher Port Density
Simplifies the Patching and Offers a Cost-effective Way for Short Links
High-speed Connectivity Compliant to IEEE 802.3ck and CMIS v5.0
Hot Pluggable OSFP MSA and QSFP112 MSA Compliant
8x 106.25G PAM4 Retimed 2x 400GAUI-4 Electrical Interface
Plug-and-Play Operation, Faster Deployment and Easier Use
See more
Specifications
Q&A
Reviews
Resources
2m (7ft) Generic Compatible 800G OSFP Finned Top to 2 x 400G QSFP112 Passive Direct Attach Copper Breakout Cable

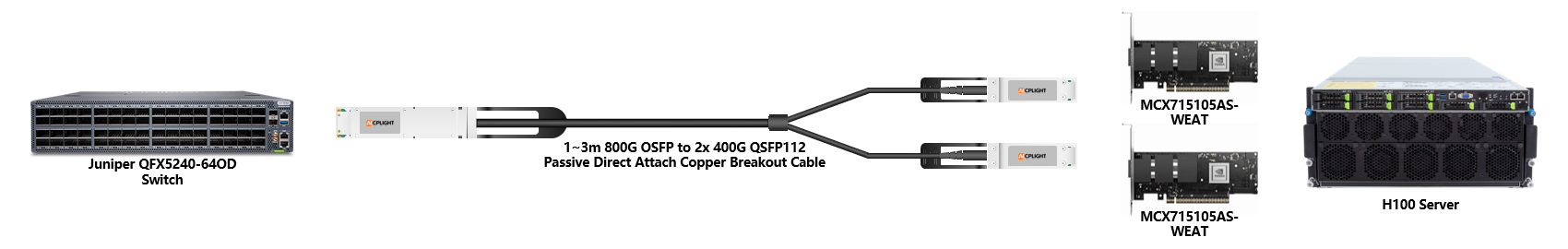

Generic Compatible 800G OSFP to 2x 400G QSFP112 direct attach cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with OSFP MSA, QSFP112 MSA, CMIS Rev 5.0, and IEEE 802.3ck standards. It provides a connection of a OSFP 800G port on one end and two 400G QSFP112 ports on the other end and is suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.
Specifications
Part Number
O2Q112-800G-CU
Vendor Name
CPLIGHT
Form Factor
OSFP (Finned Top) to 2x QSFP112
Max Data Rate
800Gbps
Media
Copper
Cable Type
Passive Twinax
Minimum Bend Radius
40.5mm
Power Consumption
0.1W
Cable Length
2m (7ft)
Wire AWG
28AWG
Temperature Range
0 to 70°C (32 to 158°F)
Jacket Material
PVC (OFNR)
Protocols
OSFP MSA, QSFP112 MSA, IEEE 802.3ck, CMIS v5.0
Modulation Format
PAM4
Certification
