2m (7ft) H3C Compatible 200G QSFP56 Passive Direct Attach Copper Twinax Cable
2m (7ft) H3C Compatible 200G QSFP56 Passive Direct Attach Copper Twinax Cable
2m (7ft) H3C Compatible 200G QSFP56 Passive Direct Attach Copper Twinax Cable
P/N: Q56-200G-CU
US$99.00
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 0.1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Minimum Bend Radius 34.5mm for Flexible Routing
Simplifies the Patching and Offers a Cost-effective Way for Short Links
Hot Pluggable QSFP56 MSA Compliant
Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
RoHS Compliant
See more
Specifications
Q&A
Reviews
Resources
2m (7ft) H3C Compatible 200G QSFP56 Passive Direct Attach Copper Twinax Cable

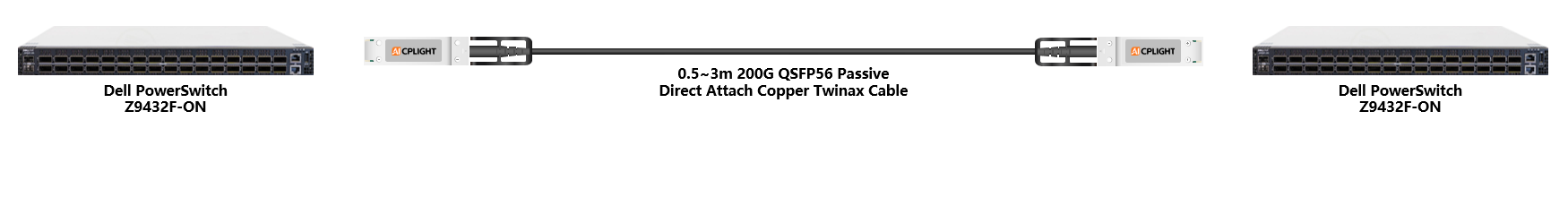

The 200G QSFP56 DAC primarily enables high-bandwidth 200G links and supports 200G Ethernet rate. It provides a QSFP56-to-QSFP56 copper direct-attach solution. 200G QSFP56 DAC cables are suitable for very short links and offer a cost-effective way to establish a 200-Gigabit link between QSFP-200G ports of switches/routers within racks and across adjacent racks.
Specifications
Part Number
Q56-200-CU
Vendor Name
CPLIGHT
Form Factor
QSFP56 to QSFP56
Max Data Rate
200Gbps
Media
Copper
Cable Type
Passive Twinax
Cable Length
2m (7ft)
Wire AWG
30AWG
Minimum Bend Radius
34.5mm
Power Consumption
≤0.5W
Cable Type
Passive Twinax
MTBF
≈50 Million Hours
Jacket Material
PVC (OFNR)
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Protocols
IEEE 802.3cd, SFF-8661, SFF-8636, SFF-8417, SFF-8679
Application
200G Ethernet
Warranty
5 Years
