1m (3ft) Juniper Compatible 400G OSFP Flat Top to 400G QSFP-DD Passive Direct Attach Copper Twinax Cable
1m (3ft) Juniper Compatible 400G OSFP Flat Top to 400G QSFP-DD Passive Direct Attach Copper Twinax Cable
1m (3ft) Juniper Compatible 400G OSFP Flat Top to 400G QSFP-DD Passive Direct Attach Copper Twinax Cable
P/N: OSFP-QDD-CU
US$149.00
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 0.1W Per End, and Has Near Zero-latency Delays
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Simplifies Patching and Offers a Cost-effective Way for Short Links
Hot Pluggable OSFP MSA and QSFP-DD MSA Compliant
Minimum Bend Radius 34.5mm for Flexible Routing
4x 100G PAM4 400GAUI-4 Electrical Interface
Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
See more
Specifications
Q&A
Reviews
Resources
1m (3ft) Juniper Compatible 400G OSFP Flat Top to 400G QSFP-DD Passive Direct Attach Copper Twinax Cable

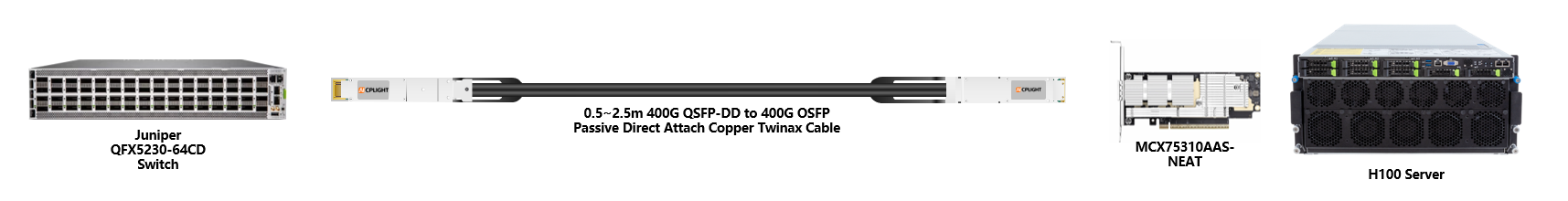

The 400G OSFP to 400G QSFP-DD DAC provides a 400G copper direct-attach solution with a Flat-top (OSFP-RHS) form factor, suitable for very short links and offer a cost-effective way to establish a 400-Gigabit link between 400G ports of switches/routers within racks and across adjacent racks. This DAC is designed with ultra-low loss materials, square rings, twisted pair cable 8 wires and shell extension construction for superior mechanical properties and bending performance. It is tested in actual switching systems to ensure optimal signal integrity and the best end-to-end performance, ideal for SDN, ML, and Cloud Computing.
Note: This 400G QSFP-DD end operates on 4x100G-PAM4 modulation, making it suitable for downspeeding on 800G QSFP-DD switches that support channel disabling (i.e., operating with only 4 lanes enabled). It is not compatible with 400G QSFP-DD switches that use 8x50G-PAM4 modulation.
Specifications
Part Number
OSFP-QDD-CU
Vendor Name
CPLIGHT
Form Factor
OSFP (Flat Top) to QSFP-DD
Max Data Rate
400Gbps
Media
Copper
Cable Type
Passive Twinax
Cable Length
1m (3ft)
Wire AWG
30AWG
Minimum Bend Radius
34.5mm
Power Consumption
≤0.1W
Jacket Material
PVC (OFNR)
Temperature
0 to 70°C (32 to 158°F)
Modulation Technology
OSFP-4x100GPAM4; QDD-4x100GPAM4
Application
400G Ethernet
Protocols
IEEE 802.3cd, OSFP MSA, QSFP-DD MSA, CMIS Rev4.0, SFF-8417
Warranty
5 Years
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Features
