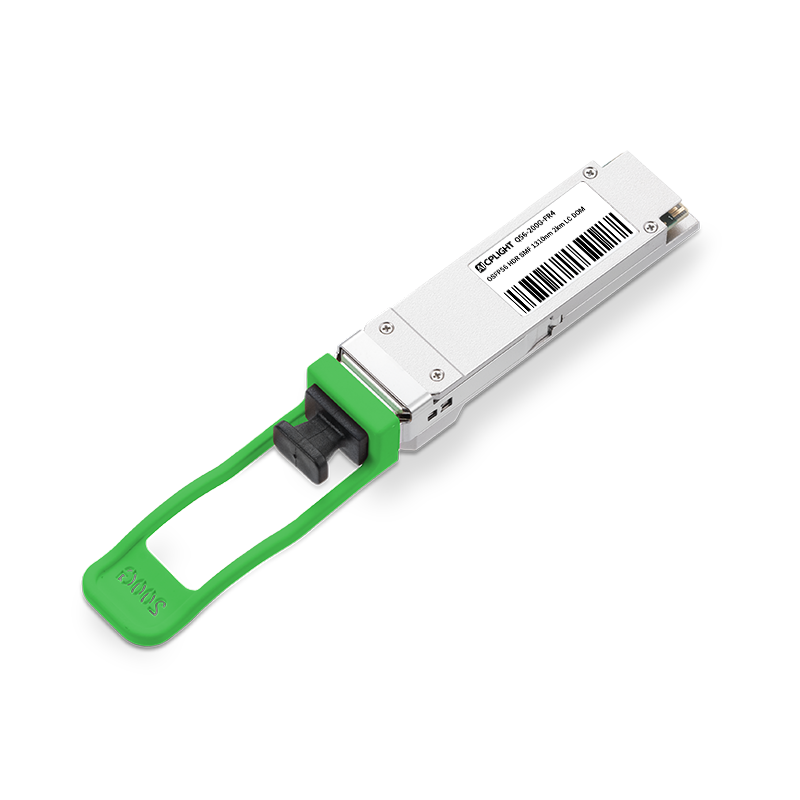

NVIDIA/Mellanox MMS1W50-HM(980-9I055-00H000) Compatible 200GBASE-FR4 QSFP56 1310nm 2km DOM Duplex LC/UPC SMF InfiniBand HDR Optical Transceiver Module
NVIDIA/Mellanox MMS1W50-HM(980-9I055-00H000) Compatible 200GBASE-FR4 QSFP56 1310nm 2km DOM Duplex LC/UPC SMF InfiniBand HDR Optical Transceiver Module
NVIDIA/Mellanox MMS1W50-HM(980-9I055-00H000) Compatible 200GBASE-FR4 QSFP56 1310nm 2km DOM Duplex LC/UPC SMF InfiniBand HDR Optical Transceiver Module
P/N: Q56-200G-FR4
$199.00
3
Solds
2
Reviews
2
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Support 200G-to-200G Links for Switch-to-Switch or Switch-to-Adapter
100% verified by the original, perfectly compatible with NVIDIA QM8700/8790 devices.
Tested for compatibility with multiple firmware versions, compliant with IBTA Industrial BER standards.
Qualified for InfiniBand HDR End-to-end Systems
Specifications
Certification
Q&A
Reviews
Resources
NVIDIA/Mellanox MMS1W50-HM(980-9I055-00H000) Compatible 200GBASE-FR4 QSFP56 1310nm 2km DOM Duplex LC/UPC SMF InfiniBand HDR Optical Transceiver Module
The NVIDIA/Mellanox MMS1W50-HM Compatible QSFP56 InfiniBand HDR Optical Transceiver is an InfiniBand 200Gb/s Single-port QSFP56, FR4 multimode parallel transceiver using a single, 4-channel MPO-12/UPC optical connector. The parallel multimode, short reach 4-channel (SR4) uses 50G-PAM4 modulation and has a maximum fiber reach of 100-meters using 4 multimode fibers. It is qualified for use in InfiniBand HDR end-to-end systems
It is the ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. Used in QM8700/QM8790 switches and ConnectX-6 adapters.
Specifications
NVIDIA/Mellanox InfiniBand Compatible
MMS1W50-HM(980-9I055-00H000)
Vendor Name
AICPLIGHT
Form Factor
QSFP56
Max Data Rate
200Gbps
Wavelength
1310nm
Connector
Duplex LC/UPC
Media
SMF
Transmitter Type
VCSEL 850nm
Receiver Type
PIN
Power Consumption
≤6W
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation（electrical）
4x53.125Gb/s PAM4
Modulation（Optical）
4x53.125Gb/s PAM4
Application
Infiniband HDR
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Questions & Answers
edit icon Ask a question
All (2) Application (1)Compatibility (1)
Q:

Is this product compatible with NVIDIA/Infiniband switches?

by B***m on 2025-08-07 18:58:27

A:

Yes, our IB modules are fully compatible with NVIDIA switches.

by AICPLIGHT on 2025-08-07 23:16:48

like icon Helpful 0
comment icon Comment 0
Q:

Can I use these in telecom networks?

by O***m on 2025-03-15 23:37:51

A:

Some models are suitable for telecom; please check product specs.

by AICPLIGHT on 2025-03-16 17:39:12

like icon Helpful 0
comment icon Comment 0
Customer Reviews
edit icon Write a review
All (2) Performance (1)Ease of Use (1)
E
E***m
2025-09-01 22:54:11
Confirmed Purchase
5.0

The overall performance is on par with much more expensive alternatives. Impressive bandwidth support without compromising stability.

link icon Helpful 0
comment icon Comment 0
r
r***m
2025-07-09 12:27:14
Confirmed Purchase
5.0

Instructions were clear and the connector design made installation in tight spaces much easier.

link icon Helpful 0
comment icon Comment 0
