200G QSFP56 to 2x 100G QSFP56 | Breakout DAC Cables

FREE SHIPPING on Orders Over US$99

Free Quotation

English English

2.5m(8ft) MSA Standard Compatible 200G QSFP56 to 2x 100G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable

P/N: Q200-2Q100-C2.5

US$95.00

Solds

4-Year Warranty

30-Day Returns

30-Day Exchange

（1000 In Stock）

Product Highlights

Max. Power Consumption 0.5W

Tested in Targeted Switches for Superior Performance, Quality, and Reliability

Minimum Bend Radius 26mm for Flexible Routing

Supports 200G to 2x 100G Ethernet Interoperability

Simplifies the Patching and Offers a Cost-effective Way for Short Links

Hot Pluggable QSFP56 MSA Compliant

Low Insertion Loss and Ultra-low Crosstalk for Improved Performance

Specifications

Q&A

Reviews

Resources

2.5m(8ft) MSA Standard Compatible 200G QSFP56 to 2x 100G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable

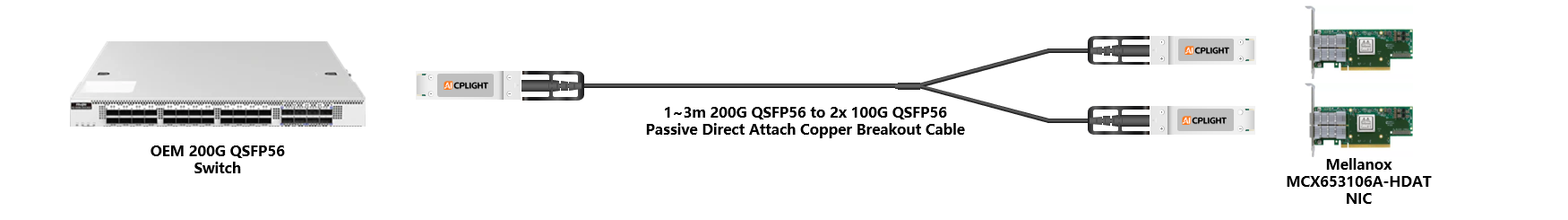

The 200G QSFP56 to 2x100G QSFP56 Ethernet Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with IEEE 802.3cd, SFF-8665, QSFP56 MSA standards. It provides a connection of a 200G QSFP56port on one end and to two 100G QSFP56 ports on the other end and is suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.

Specifications

Part Number

Q200-2Q100-C2.5

Vendor Name

AICPLIGHT

Connector Type

QSFP56 to 2x QSFP56

Max Data Rate

200Gbps

Media

Copper

Cable Type
