50m(164ft) Check Point Compatible 100G QSFP28 Ethernet Active Optical Cable
50m(164ft) Check Point Compatible 100G QSFP28 Ethernet Active Optical Cable
50m(164ft) Check Point Compatible 100G QSFP28 Ethernet Active Optical Cable
P/N: Q100-Q100-A50
$132.50
5
Reviews
3
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Max. Power Consumption 2.2W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Minimum Bend Radius 30mm for Flexible Routing
Simplifies the Patching and Offers a Cost-effective Way for Short Links
Hot Pluggable QSFP28 MSA Compliant
Class 1 FDA Laser Safety and RoHS Compliant
See more
Specifications
Certification
Connectivity Solutions
Comparison Table
Q&A
Reviews
Resources
50m(164ft) Check Point Compatible 100G QSFP28 Ethernet Active Optical Cable
The Check Point QSFP-100G-AOC1M Compatible QSFP28 Active Optical Cables are fiber assemblies with QSFP28 connectors designed for direct-attach connections over Multi-Mode Fiber (MMF). These AOCs comply with hot-pluggable QSFP28 MSA and RoHS-6 standards, ensuring compatibility and adherence to environmental regulations. By offering a cost-efficient alternative to discrete optical transceivers and patch cables, these AOCs are ideal for establishing 100Gbps connections within racks and adjacent racks. Active optical cables provide a lightweight and slim alternative to copper cables, simplifying cable management.
Specifications
Connector Type
QSFP28 to QSFP28
Data Rate
103.125Gbps to 103.125Gbps
Media
Fiber
Cable Type
AOC
Cable Length
1m~100m(3ft~328ft)
Outer Diameter
3.0mm
Jacket Material
OFNP
Minimum Bend Radius
30mm
Power Consumption
≤2.2W
Case Operating Temperature
0 to 70°C (32 to 158°F)
Protocol
100 Gigabit Ethernet 100G Infiniband EDR
Application
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Connectivity Solutions

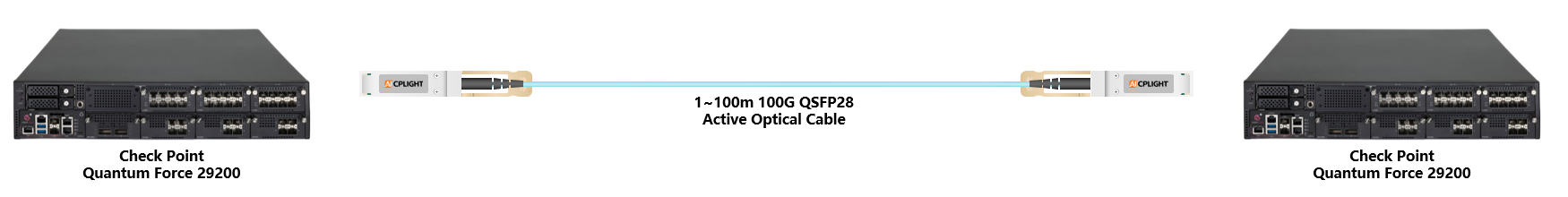

Check Point Switch links：100G QSFP28 to 100G QSFP28
All
Check Point Switch links：100G QSFP28 to 100G QSFP28
Comparison Table
Cisco Compatible 100G QSFP28 Passive DAC, 1m (3ft)
Q100-Q100-C1
Cisco Compatible 100G QSFP28 AOC, 1m (3ft)
Q100-Q100-A1
Cisco Compatible 100G QSFP28 to 4x25G SFP28 Passive Breakout DAC, 1m (3ft)
Q100-4S25-C1
Cisco Compatible 100G QSFP28 to 4x25G SFP28 AOC, 1m (3ft)
Q100-4S25-A1
Connector Type QSFP28 to QSFP28QSFP28 to QSFP28QSFP28 to 4x SFP28QSFP28 to 4x SFP28
Data Rate 103.125Gbps to 103.125Gbps103.125Gbps to 103.125Gbps103.125Gbps to 4x 25.78125Gbps103.125Gbps to 4x 25.78125Gbps
Media CopperFiberCopperFiber
Cable Type DACAOCDACAOC
Cable Length 0.5m~5m(2ft~16ft)1m~100m(3ft~328ft)1m~5m(3ft~16ft)1m~50m(3ft~165ft)
Outer Diameter 0.5m~3m@AWG 30 4m~5m@AWG 263.0mm1m~3m@AWG 30 4m~5m@AWG 263.0mm
Jacket Material PVCOFNPPVCOFNP
Minimum Bend Radius 23mm@AWG 30 33mm@AWG 2630mm23mm@AWG 30 33mm@AWG 2630mm
Power Consumption ≤0.1W≤2.2W≤0.1W≤2.2W@QSFP28 ≤1.0W@SFP28
Case Operating Temperature 0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Protocol 100 Gigabit Ethernet 100G Infiniband EDR100 Gigabit Ethernet 100G Infiniband EDR4x 25G Breakout Ethernet4x 25G Breakout Ethernet
Application Swicth to Switch Switch to NIC Router to NIC Other LinksSwicth to Switch Switch to NIC Router to NIC Other Optical LinksSwicth to Switch Switch to NIC Router to NIC Other LinksSwicth to Switch Switch to NIC Router to NIC Other Optical Links
Connector Type
Data Rate
Media
Cable Type
Cable Length
Outer Diameter
Jacket Material
Minimum Bend Radius
Power Consumption
Case Operating Temperature
Protocol
Application
Cisco Compatible 100G QSFP28 Passive DAC, 1m (3ft)
Q100-Q100-C1
Cisco Compatible 100G QSFP28 AOC, 1m (3ft)
Q100-Q100-A1
Cisco Compatible 100G QSFP28 to 4x25G SFP28 Passive Breakout DAC, 1m (3ft)
Q100-4S25-C1
Cisco Compatible 100G QSFP28 to 4x25G SFP28 AOC, 1m (3ft)
Q100-4S25-A1
QSFP28 to QSFP28
QSFP28 to QSFP28
QSFP28 to 4x SFP28
QSFP28 to 4x SFP28
103.125Gbps to 103.125Gbps
103.125Gbps to 103.125Gbps
103.125Gbps to 4x 25.78125Gbps
103.125Gbps to 4x 25.78125Gbps
Copper
Fiber
Copper
Fiber
DAC
AOC
DAC
AOC
0.5m~5m(2ft~16ft)
1m~100m(3ft~328ft)
1m~5m(3ft~16ft)
1m~50m(3ft~165ft)
0.5m~3m@AWG 30 4m~5m@AWG 26
3.0mm
1m~3m@AWG 30 4m~5m@AWG 26
3.0mm
PVC
OFNP
PVC
OFNP
23mm@AWG 30 33mm@AWG 26
30mm
23mm@AWG 30 33mm@AWG 26
30mm
≤0.1W
≤2.2W
≤0.1W
≤2.2W@QSFP28 ≤1.0W@SFP28
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
100 Gigabit Ethernet 100G Infiniband EDR
100 Gigabit Ethernet 100G Infiniband EDR
4x 25G Breakout Ethernet
4x 25G Breakout Ethernet
Swicth to Switch Switch to NIC Router to NIC Other Links
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
Swicth to Switch Switch to NIC Router to NIC Other Links
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
Questions & Answers
edit icon Ask a question
All (3) Compatibility (2)Installation (1)
Q:

Can these transceivers auto-negotiate with older models?

by J***m on 2025-11-06 04:36:45

A:

Yes, backward compatibility is supported in many cases.

by AICPLIGHT on 2025-11-06 06:50:56

like icon Helpful 0
comment icon Comment 0
Q:

How should cables be routed in a high-density rack?

by T***m on 2025-10-10 05:27:24

A:

Use cable managers to maintain airflow and prevent bending.

by AICPLIGHT on 2025-10-10 08:50:19

like icon Helpful 0
comment icon Comment 0
Q:

How should cables be routed in a high-density rack?

by 1***m on 2025-10-09 10:52:52

A:

Yes, backward compatibility is supported in many cases.

by AICPLIGHT on 2025-10-09 13:59:24

like icon Helpful 0
comment icon Comment 0
Customer Reviews
edit icon Write a review
All (5) Performance (1)Compatibility (1)Ease of Use (2)Value (1)
m
m***m
2025-11-16 09:21:51
Confirmed Purchase
5.0

Pre-labeled and pre-tested AOCs made our rack wiring painless. They’re flexible enough for tight bends and clearly marked on each end.

link icon Helpful 0
comment icon Comment 0
S
S***m
2025-10-10 11:25:02
Confirmed Purchase
5.0

Support walked us through breakout combinations and advised on lengths to minimize signal loss.

link icon Helpful 0
comment icon Comment 0
d
d***m
2025-10-09 09:19:13
Confirmed Purchase
5.0

Used in our GPU training pod (8x H100s) to connect each server node. Latency remained sub-microsecond, even with large tensor workloads.

link icon Helpful 0
comment icon Comment 0
V
V***m
2025-09-02 06:53:22
Confirmed Purchase
5.0

Fully compatible with our NVIDIA ConnectX-6 NICs and Mellanox switches. No firmware warnings or handshake delays.

link icon Helpful 0
comment icon Comment 0
1
1***m
2025-08-16 04:51:46
Confirmed Purchase
5.0

High-quality interconnects at a fraction of the price of branded cables. Ideal for scaling AI clusters on a budget.

link icon Helpful 0
comment icon Comment 0
