2.5m（8ft） HP H3C C-Q200-2Q100-1M Compatible 200G QSFP56 to 2x 100G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable
2.5m（8ft） HP H3C C-Q200-2Q100-1M Compatible 200G QSFP56 to 2x 100G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable
2.5m（8ft） HP H3C C-Q200-2Q100-1M Compatible 200G QSFP56 to 2x 100G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable
P/N: Q200-2Q100-C2.5
$95.00
4
Solds
4
Reviews
5
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Max. Power Consumption 0.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Minimum Bend Radius 26mm for Flexible Routing
Supports 200G to 2x 100G Ethernet Interoperability
Simplifies the Patching and Offers a Cost-effective Way for Short Links
Hot Pluggable QSFP56 MSA Compliant
Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
See more
Specifications
Certification
Connectivity Solutions
Comparison Table
Q&A
Reviews
Resources
2.5m（8ft） HP H3C C-Q200-2Q100-1M Compatible 200G QSFP56 to 2x 100G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable
The 200G QSFP56 to 2x100G QSFP56 Ethernet Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with IEEE 802.3cd, SFF-8665, QSFP56 MSA standards. It provides a connection of a 200G QSFP56port on one end and to two 100G QSFP56 ports on the other end and is suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centers, etc.
Specifications
Part Number
Q200-2Q100-C2.5
Vendor Name
AICPLIGHT
Connector Type
QSFP56 to 2x QSFP56
Max Data Rate
200Gbps
Media
Copper
Cable Type
Passive Twinax
Cable Length
2.5m（8ft）
Wire AWG
30AWG
Minimum Bend Radius
26mm
Power Consumption
≤0.5W
MTBF
≈50 Million Hours
Jacket Material
PVC（OFNR）
Commercial Temperature Range
0 to 70°C（32 to 158°F）
Application
200G Ethernet
Protocols
IEEE 802.3cd, SFF-8665, QSFP56 MSA
Warranty
5 Years
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Connectivity Solutions

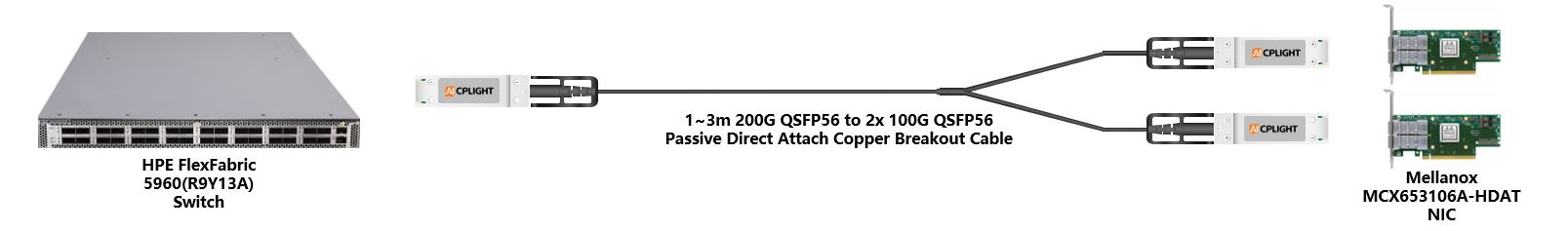

HPE FlexFabric Switch links：200G QSFP56 to 2x 100G QSFP56
All
HPE FlexFabric Switch links：200G QSFP56 to 2x 100G QSFP56
Comparison Table
Cisco Compatible 200G QSFP56 Passive DAC, 1m（3ft）
Q200-Q200-C1
Cisco Compatible 200G QSFP56 AOC, 1m（3ft）
Q200-Q200-A1
Cisco Compatible 200G QSFP56 to 2x100G QSFP56 Breakout AOC, 1m（3ft）
Q200-2Q100-A1
Cisco Compatible 200G QSFP56 to 2x 100G QSFP56 Passive Breakout DAC,1m（3ft）
Q200-2Q100-C1
Connector Type QSFP56 to QSFP56QSFP56 to QSFP56QSFP56 to 2x QSFP56QSFP56 to 2x QSFP56
Data Rate 212.5Gbps to 212.5Gbps212.5Gbps to 212.5Gbps212.5Gbps to 2x 106.25Gbps212.5Gbps to 2x 106.25Gbps
Media CopperFiberFiberCopper
Cable Type DACAOCAOCDAC
Cable Length 0.5m~3m(2ft~10ft)1m~100m(3ft~328ft)1m~50m(3ft~165ft)1m~3m(3ft~10ft)
Outer Diameter 0.5m~2m@AWG 30 3m@AWG 263.0mm3.0mm1m@AWG 30 1.5m~3m@AWG 26
Jacket Material PVCOFNPOFNPPVC
Minimum Bend Radius 23mm@AWG 30 33mm@AWG 2630mm30mm23mm@AWG 30 33mm@AWG 26
Power Consumption ≤0.1W≤4.5W≤4.5W@QSFP56 200G ≤4W@QSFP56 100G≤0.1W
Case Operating Temperature 0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Protocol 200 Gigabit Ethernet 200G Infiniband HDR 100G Infiniband HDR100200 Gigabit Ethernet 200G Infiniband HDR2x 100G Breakout Ethernet 2x 100G Breakout Infiniband HDR2x 100G Breakout Ethernet 2x 100G Breakout Infiniband HDR
Application Swicth to Switch Switch to NIC Router to NIC Other LinksSwicth to Switch Switch to NIC Router to NIC Other Optical LinksSwicth to Switch Switch to NIC Router to NIC Other Optical LinksSwicth to Switch Switch to NIC Router to NIC Other Links
Connector Type
Data Rate
Media
Cable Type
Cable Length
Outer Diameter
Jacket Material
Minimum Bend Radius
Power Consumption
Case Operating Temperature
Protocol
Application
Cisco Compatible 200G QSFP56 Passive DAC, 1m（3ft）
Q200-Q200-C1
Cisco Compatible 200G QSFP56 AOC, 1m（3ft）
Q200-Q200-A1
Cisco Compatible 200G QSFP56 to 2x100G QSFP56 Breakout AOC, 1m（3ft）
Q200-2Q100-A1
Cisco Compatible 200G QSFP56 to 2x 100G QSFP56 Passive Breakout DAC,1m（3ft）
Q200-2Q100-C1
QSFP56 to QSFP56
QSFP56 to QSFP56
QSFP56 to 2x QSFP56
QSFP56 to 2x QSFP56
212.5Gbps to 212.5Gbps
212.5Gbps to 212.5Gbps
212.5Gbps to 2x 106.25Gbps
212.5Gbps to 2x 106.25Gbps
Copper
Fiber
Fiber
Copper
DAC
AOC
AOC
DAC
0.5m~3m(2ft~10ft)
1m~100m(3ft~328ft)
1m~50m(3ft~165ft)
1m~3m(3ft~10ft)
0.5m~2m@AWG 30 3m@AWG 26
3.0mm
3.0mm
1m@AWG 30 1.5m~3m@AWG 26
PVC
OFNP
OFNP
PVC
23mm@AWG 30 33mm@AWG 26
30mm
30mm
23mm@AWG 30 33mm@AWG 26
≤0.1W
≤4.5W
≤4.5W@QSFP56 200G ≤4W@QSFP56 100G
≤0.1W
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
200 Gigabit Ethernet 200G Infiniband HDR 100G Infiniband HDR100
200 Gigabit Ethernet 200G Infiniband HDR
2x 100G Breakout Ethernet 2x 100G Breakout Infiniband HDR
2x 100G Breakout Ethernet 2x 100G Breakout Infiniband HDR
Swicth to Switch Switch to NIC Router to NIC Other Links
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
Swicth to Switch Switch to NIC Router to NIC Other Links
Questions & Answers
edit icon Ask a question
All (5) Application (1)Product (1)Compatibility (1)Installation (1)Performance (1)
Q:

How should cables be routed in a high-density rack?

by 1***m on 2025-11-15 03:59:49

A:

Use cable managers to maintain airflow and prevent bending.

by AICPLIGHT on 2025-11-15 13:44:26

like icon Helpful 0
comment icon Comment 0
Q:

What is the operating temperature range?

by n***m on 2025-09-08 01:50:39

A:

Most modules operate between 0°C to 70°C, with extended versions available.

by AICPLIGHT on 2025-09-08 08:12:42

like icon Helpful 0
comment icon Comment 0
Q:

Can these be used in harsh environments?

by e***m on 2025-08-28 19:10:33

A:

We offer industrial-grade models for rugged applications.

by AICPLIGHT on 2025-08-29 00:39:18

like icon Helpful 0
comment icon Comment 0
Q:

Do these cables support PAM4 modulation?

by T***m on 2025-08-16 12:55:02

A:

Yes, many modules and cables support PAM4 encoding.

by AICPLIGHT on 2025-08-16 17:18:20

like icon Helpful 0
comment icon Comment 0
Q:

Will this work in mixed vendor networks?

by L***m on 2025-07-11 21:52:10

A:

Yes, our products are designed for interoperability.

by AICPLIGHT on 2025-07-12 06:38:31

like icon Helpful 0
comment icon Comment 0
