NVIDIA MQM8700-HS2R Mellanox Quantum™ HDR InfiniBand Switch, 40 QSFP56 Ports, 2 Power Supplies (AC), x86 Dual Core, Standard Depth, C2P Airflow, Rail Kit
P/N: MQM8700-HS2R
US$6999.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

40 HDR 200Gb/s Ports Split into 80X100Gb/s Via Breakout Cables
16Tb/s Non-blocking Switching Fabric for Congestion-Free Data Flow
Hot-swappable Dual Power Modules with 100-240V AC Compatibility
Advanced Adaptive Routing for Dragonfly+ and Slimfly Topologies
Integrated X86 Comex Broadwell CPU For Intelligent Fabric Management
Specifications
Q&A
Reviews
Resources
NVIDIA MQM8700-HS2R Mellanox Quantum™ HDR InfiniBand Switch, 40 QSFP56 Ports, 2 Power Supplies (AC), x86 Dual Core, Standard Depth, C2P Airflow, Rail Kit
40-port non-blocking managed HDR 200Gb/s InfiniBand smart switch, Mellanox provides the world’s smartest switch, enabling in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)™ technology. QM8700 has the highest fabric performance available in the market with up to 16Tb/s of non-blocking bandwidth with sub-130ns port-to-port latency.
Specifications
Manufacturer
Mellanox
Ports
40×QSFP56
Switching Capacity
16Tb/s
Fan Number
5+1 Hot-swappable
Input Voltage
100-127VAC 50/60Hz 4.5A, 200-240VAC 50/60Hz 2.9A
Software
MLNX-OS
Data Rate
40/56/100/200 Gb/s
Latency
130ns
Management
support
Airflow
Front-to-Back (C2P)
AC Power Supplies
1+1 Hot-swappable
Operating Temperature
0 to 40°C (32 to 104°F)
Storage Temperature
-40 to 70°C (-40 to 158°F)
Dimensions (H×W×D)
43.6×433.2×590.6mm
Rack Units
1 RU
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
NVIDIA MQM9700-NS2F Mellanox Quantum™-2 NDR InfiniBand Switch, 64-Ports NDR, 32 OSFP Ports, Managed, Power-to-connector (P2C) Airflow (forward)
US$27999.00
NVIDIA MCX653105A-HDAT Mellanox ConnectX®-6 VPI Adapter Card, HDR IB (200Gb/s) and 200GbE, Single-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00
NVIDIA MCX512A-ACAT Mellanox ConnectX®-5 EN Network Interface Card, 25GbE Dual-port SFP28, PCIe Gen 3.0 x8, Tall Bracket
US$0.00
NVIDIA MCX653106A-HDAT Mellanox ConnectX®-6 VPI Adapter Card, HDR IB (200Gb/s) and 200GbE, Dual-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00
NVIDIA MCX623105AS-VDAT Mellanox ConnectX®-6 Dx EN Adapter Card, 200GbE, Single-port QSFP56, PCIe 4.0 x16, Secure Boot, No Crypto, Tall Bracket
US$0.00

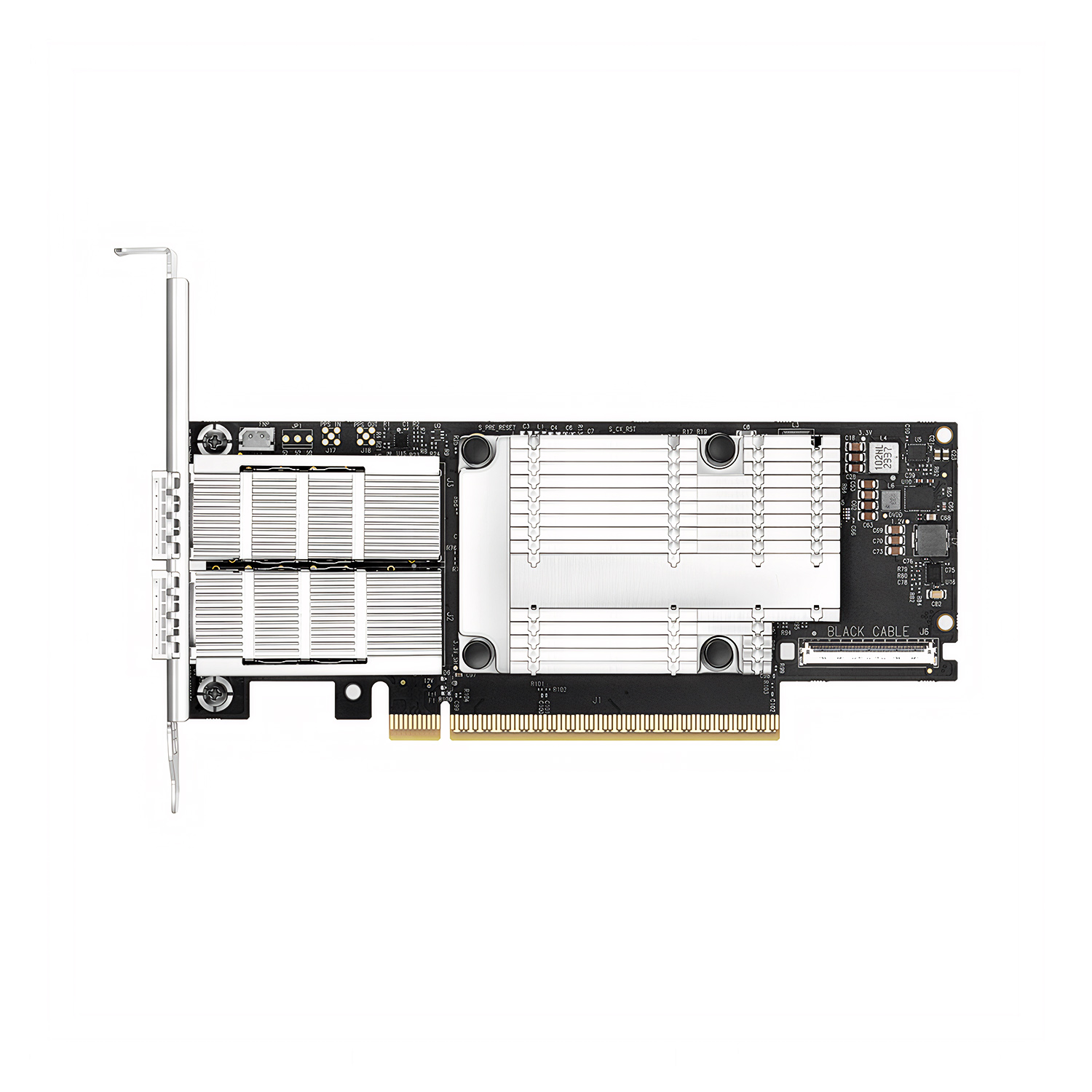

NVIDIA MCX755106AS-HEAT Mellanox ConnectX®-7 VPI Adapter Card 200GbE/NDR200, Dual-port QSFP112, PCIe 5.0 x16, with x16 PCIe Extension Option, Secure Boot, Tall & Short Bracket
US$0.00

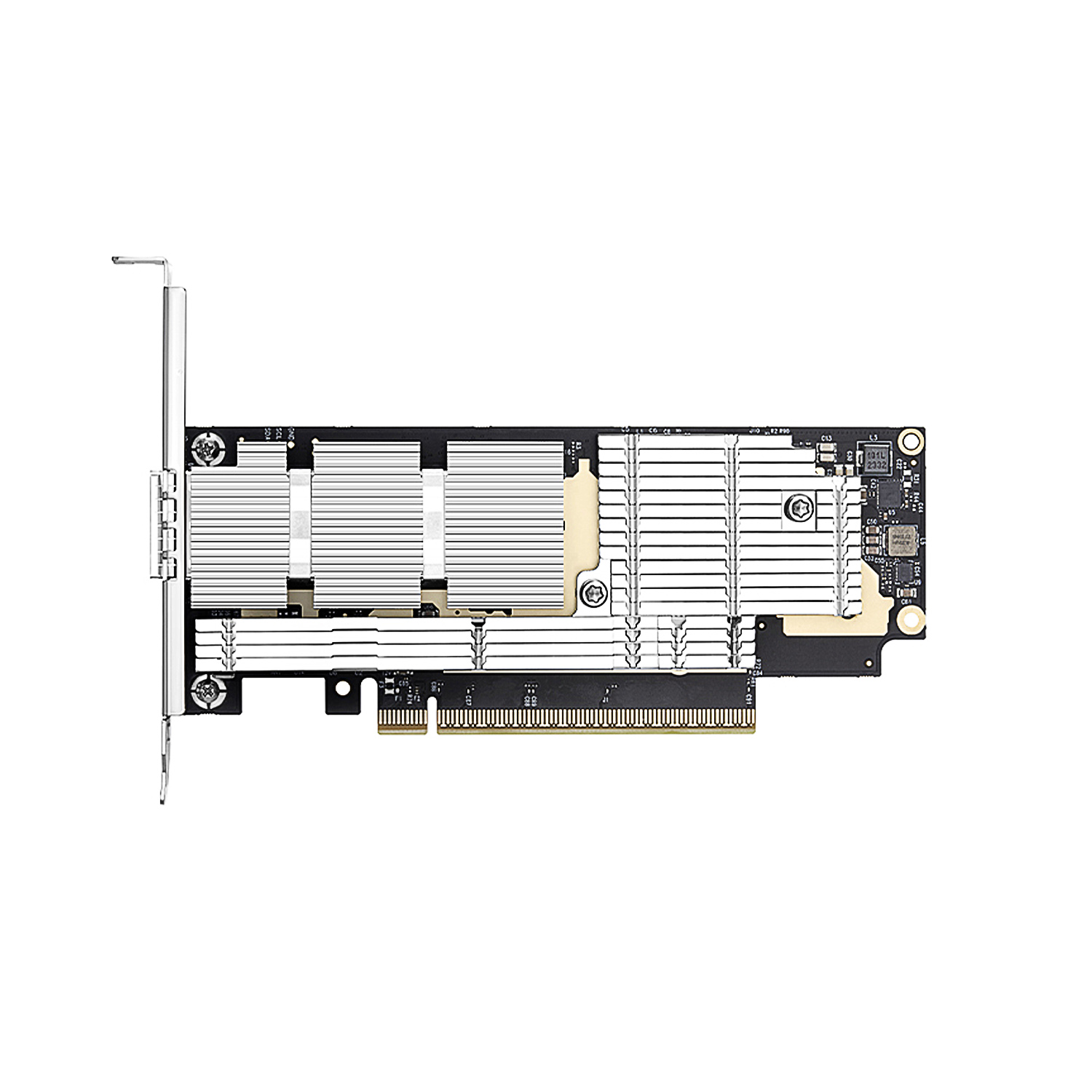

NVIDIA MCX715105AS-WEAT Mellanox ConnectX®-7 InfiniBand/VPI Adapter Card 400GbE/NDR, Single-port QSFP112, PCIe 5.0 x 16, Secure Boot, Tall & Short Bracket
US$0.00
NVIDIA MCX75310AAS-NEAT Mellanox ConnectX®-7 InfiniBand/VPI Adapter Card 400GbE/NDR, Single-port OSFP, PCIe 5.0 x 16, Secure Boot, Tall & Short Bracket
US$0.00

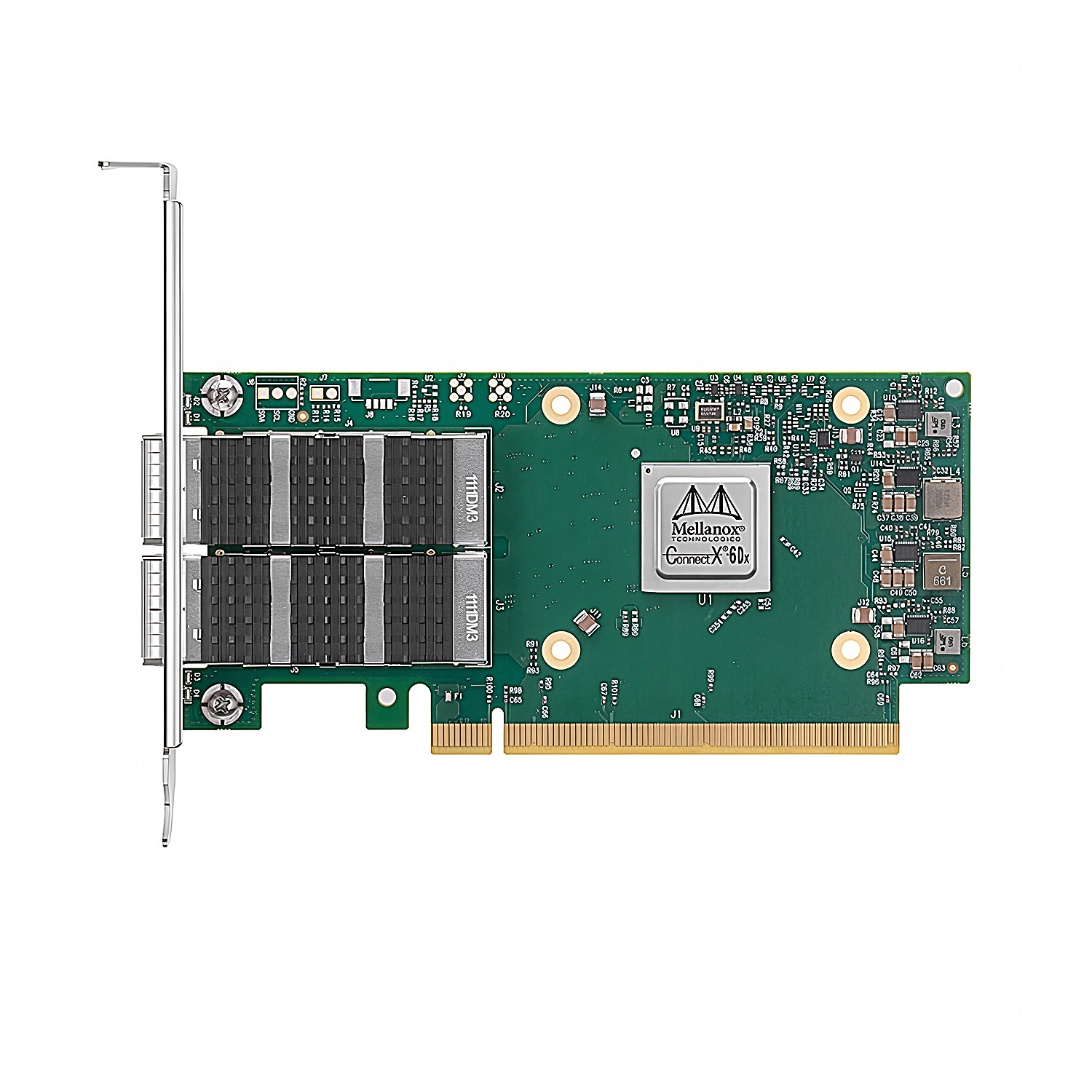

NVIDIA MCX623106AN-CDAT Mellanox ConnectX®-6 Dx EN Adapter Card, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket
