NVIDIA MCX75310AAS-NEAT Mellanox ConnectX®-7 InfiniBand/VPI Adapter Card 400GbE/NDR, Single-port OSFP, PCIe 5.0 x 16, Secure Boot, Tall & Short Bracket
P/N: MCX75310AAS-NEAT
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Single-port OSFP for 400Gb/s NDR InfiniBand & 400GbE Dual-Protocol
Ultra-Low Latency with High Message Rate via RDMA
Hardware-Accelerated XTS-AES Encryption (FIPS-Capable) with Block-Level Security
PCIe 5.0 x16 Interface with Gen 4 Backward Compatibility
End-to-End QoS & Congestion Control for Predictable Performance
NVMe-oF, In-Network Computing, and RoCE v2 Support
See more
Specifications
Q&A
Reviews
Resources
NVIDIA MCX75310AAS-NEAT Mellanox ConnectX®-7 InfiniBand/VPI Adapter Card 400GbE/NDR, Single-port OSFP, PCIe 5.0 x 16, Secure Boot, Tall & Short Bracket
The NVIDIA® ConnectX®-7 family of remote direct-memory access (RDMA) network adapters supports InfiniBand and Ethernet protocols and a range of speeds up to 400 gigabits per second (Gb/s). It enables a wide range of advanced, scalable, and secure networking solutions that address traditional enterprise needs up to the world’s most demanding AI, scientific computing, and hyperscale cloud data center workloads. ConnectX-7 provides a broad set of software-defined, hardware-accelerated networking, storage, and security capabilities, which enable organizations to modernize and secure their IT infrastructures. ConnectX-7 also powers agile and high-performance solutions from edge to core data centers to clouds, all while enhancing network security and reducing total cost of ownership. ConnectX-7 provides ultra-low latency, extreme throughput, and innovative NVIDIA In-Network Computing engines to deliver the acceleration, scalability, and feature-rich technology needed for today’s modern scientific computing workloads.
Specifications
Brand
NVIDIA
Technology
VPI
Ports
Single
Port Type
OSFP
Data Rate
(Eth) 1, 10, 40, 50, 100, 200, 400GbE; (IB) SDR, FDR, EDR, HDR100, HDR, NDR200, NDR
Host Interface
PCIe 5.0×16
Input Voltage
12v
Max. Power Consumption
24.9W
Operating Temperature
0 to 55°C (32 to 131℉)
Storage Temperature
-40 to 70°C (-40 to 158℉)
Dimensions (W×D)
68.90×167.65mm
Controller
ConnectX-7
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
NVIDIA Mellanox UFM Enterprise Platform for NVIDIA® InfiniBand Switches
US$0.00
NVIDIA MSN4600-VS2FC Mellanox Spectrum-3 Based 200GbE 2U Open Ethernet Switch with Cumulus Linux, 64 QSFP56 Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
US$0.00
NVIDIA MCX515A-CCAT Mellanox ConnectX®-5 EN Network Interface Card, 100GbE Single-port QSFP28, PCIe Gen 3.0 x16, Tall Bracket
US$0.00
NVIDIA MQM8790-HS2F Mellanox Quantum™ HDR InfiniBand Switch, 40 QSFP56 Ports, 2 Power Supplies (AC), Unmanaged, Standard Depth, P2C Airflow, Rail Kit
US$3899.00
NVIDIA MSN4700-WS2F Mellanox Spectrum-3 Based 400GbE 1U Open Ethernet Switch with Onyx, 32 QSFPDD Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
US$0.00
NVIDIA MCX653105A-ECAT Mellanox ConnectX®-6 VPI Adapter Card, 100Gb/s (HDR100, EDR IB and 100GbE), Single-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00
NVIDIA MSN4700-WS2FC Mellanox Spectrum-3 Based 400GbE 1U Open Ethernet Switch with Cumulus Linux, 32 QSFPDD Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
US$0.00
NVIDIA MQM9700-NS2F Mellanox Quantum™-2 NDR InfiniBand Switch, 64-Ports NDR, 32 OSFP Ports, Managed, Power-to-connector (P2C) Airflow (forward)
US$27999.00
NVIDIA MSN3700-CS2FC Mellanox Spectrum-2 Based 100GbE 1U Open Ethernet Switch with Cumulus Linux, 32 QSFP28 Ports, 2 Power Supplies (AC), Standard Depth, P2C Airflow, Rail Kit
US$0.00

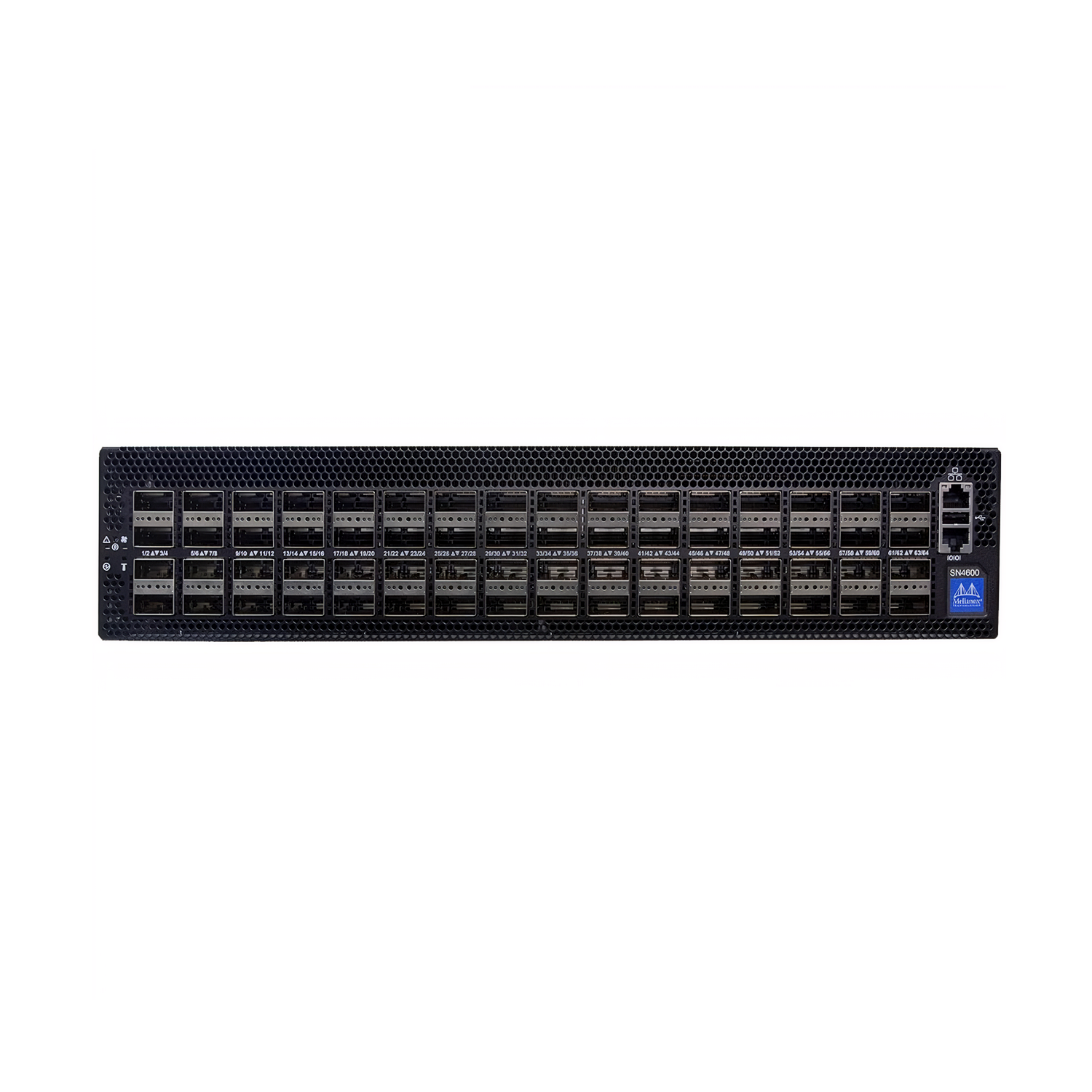

NVIDIA MSN4600-CS2FC Mellanox Spectrum-3 Based 100GbE 2U Open Ethernet Switch with Cumulus Linux, 64 QSFP28 Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
