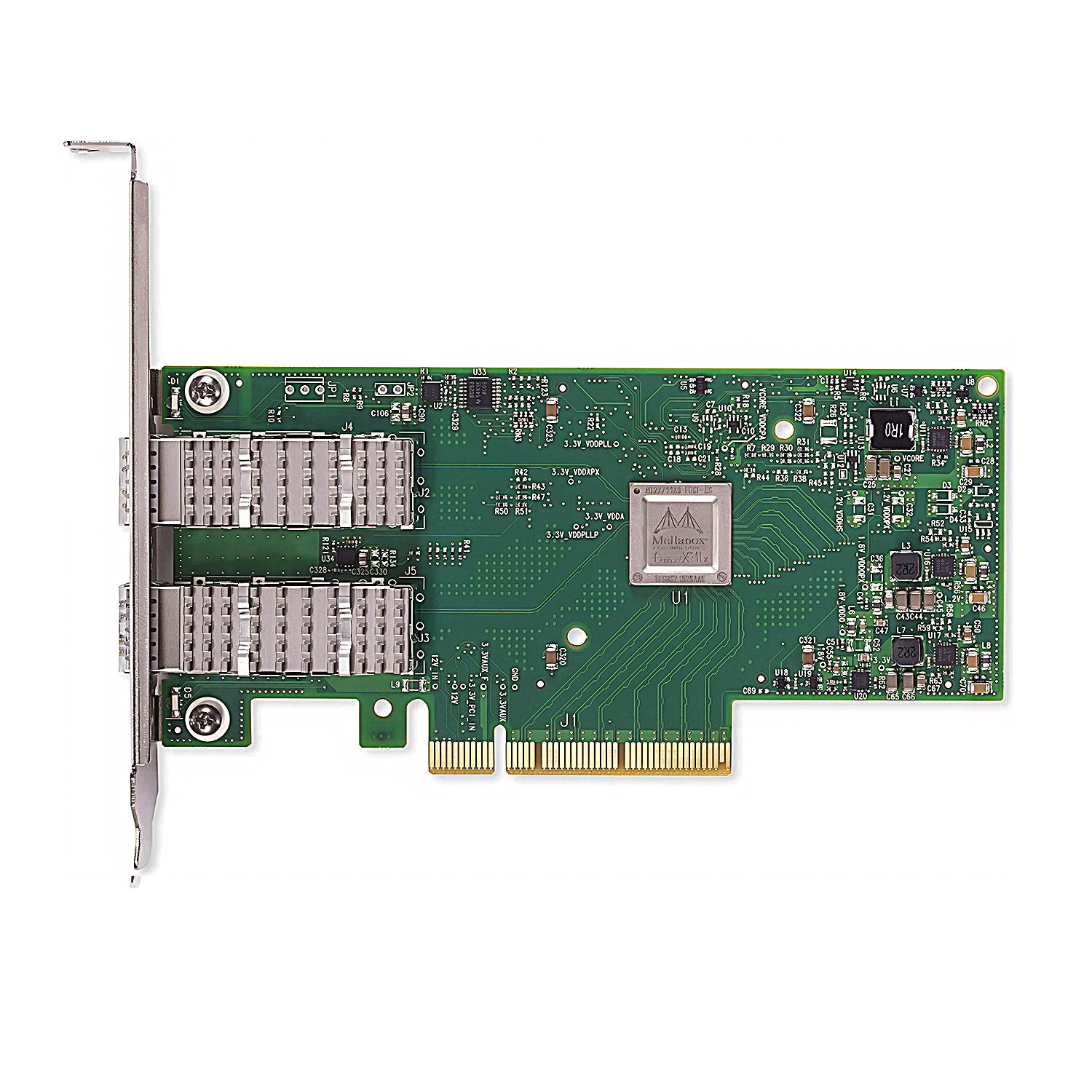

NVIDIA MCX4121A-ACAT Mellanox ConnectX®-4 Lx EN Network Interface Card, 25GbE Dual-port SFP28, PCIe3.0 x8, Tall Bracket
P/N: MCX4121A-ACAT
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Dual-Port 25GbE SFP28 for High-Speed Ethernet Connectivity
Sub-Microsecond Latency with 75M Messages/Second Throughput
Hardware-Offloaded Overlay Networks (VXLAN/NVGRE) for Virtualized Environments
PCIe 3.0 x8 Interface with Gen 2/3 Compatibility
End-to-End QoS & Congestion Control for Predictable Performance
RoCE v1/v2 Support for Low-Latency RDMA over Ethernet
See more
NVIDIA MCX4121A-ACAT Mellanox ConnectX®-4 Lx EN Network Interface Card, 25GbE Dual-port SFP28, PCIe3.0 x8, Tall Bracket
ConnectX-4 Lx EN adapter cards with 1/10/25/40/50 Gb/s Ethernet connectivity addresses virtualized infrastructure challenges for today’s demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, ConnectX-4 Lx EN provides a cost-effective and flexible Ethernet adapter solution for Web 2.0, cloud, data analytics, database, and storage platforms. With the exponential increase in usage of data and the creation of new applications, the demand for the highest throughput, lowest latency, virtualization and sophisticated data acceleration engines continues to rise. ConnectX-4 Lx EN adapter cards enable data centers to leverage leading interconnect adapters for increasing their operational efficiency, improving servers’ utilization, maximizing applications productivity, while reducing total cost of ownership (TCO). ConnectX-4 Lx EN adapter cards provide a combination of 1, 10, 25, 40, and 50 GbE bandwidth, sub-microsecond latency and a 75 million packets per second message rate. They include native hardware support for RDMA over Converged Ethernet (RoCE), Ethernet stateless offload engines, Overlay Networks, GPUDirect® technology and Mellanox Multi-Host® technology.
Specifications
Brand
NVIDIA
Technology
Ethernet
Ports
Dual
Port Type
SFP28
Data Rate
1, 10, 25GbE
Host Interface
PCIe 3.0×8
Input Voltage
12v
Max. Power Consumption
15W
Operating Temperature
0 to 55°C (32 to 131℉)
Storage Temperature
-40 to 70°C (-40 to 158℉)
Dimensions (W×D)
68.90×142.24mm
Controller
ConnectX-4
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line

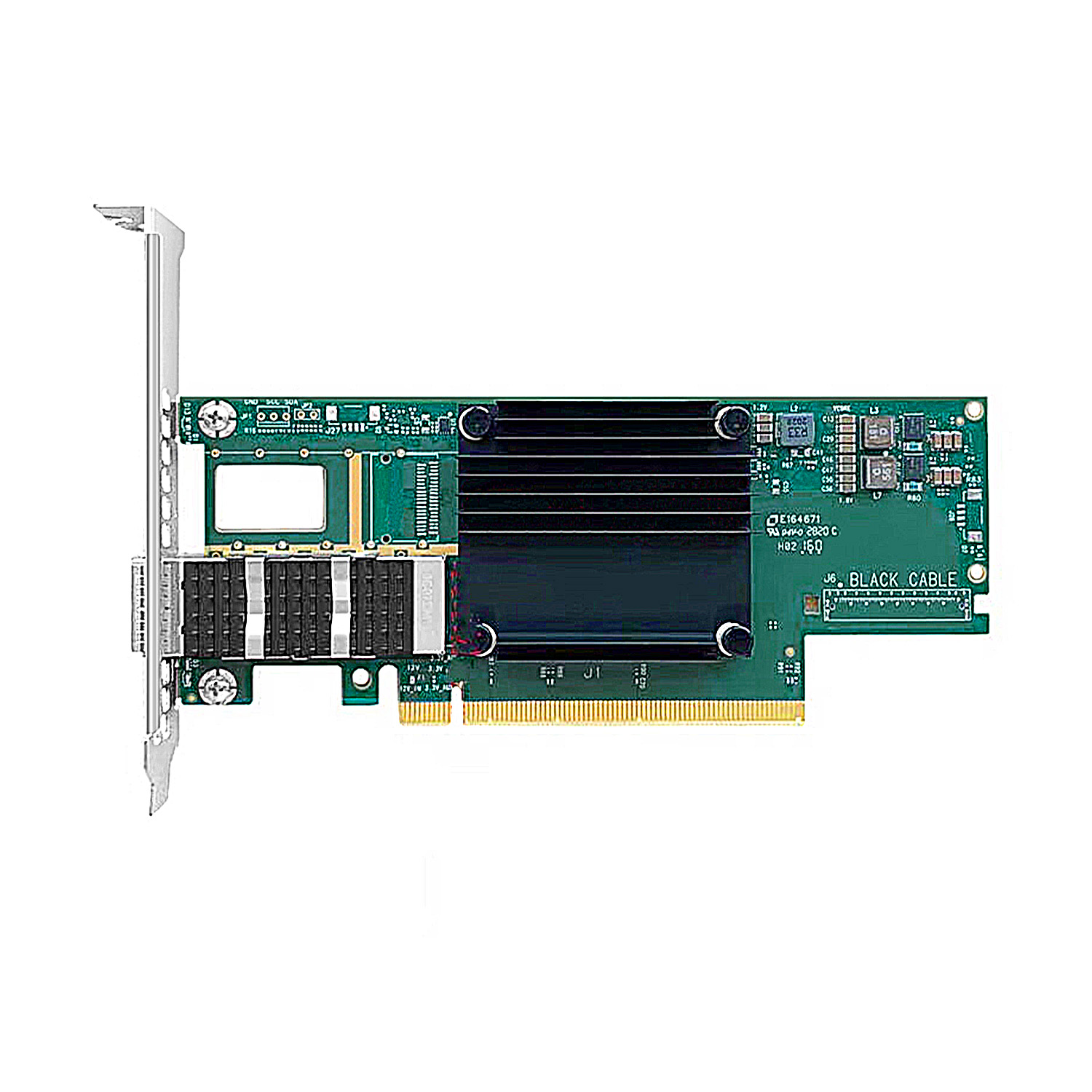

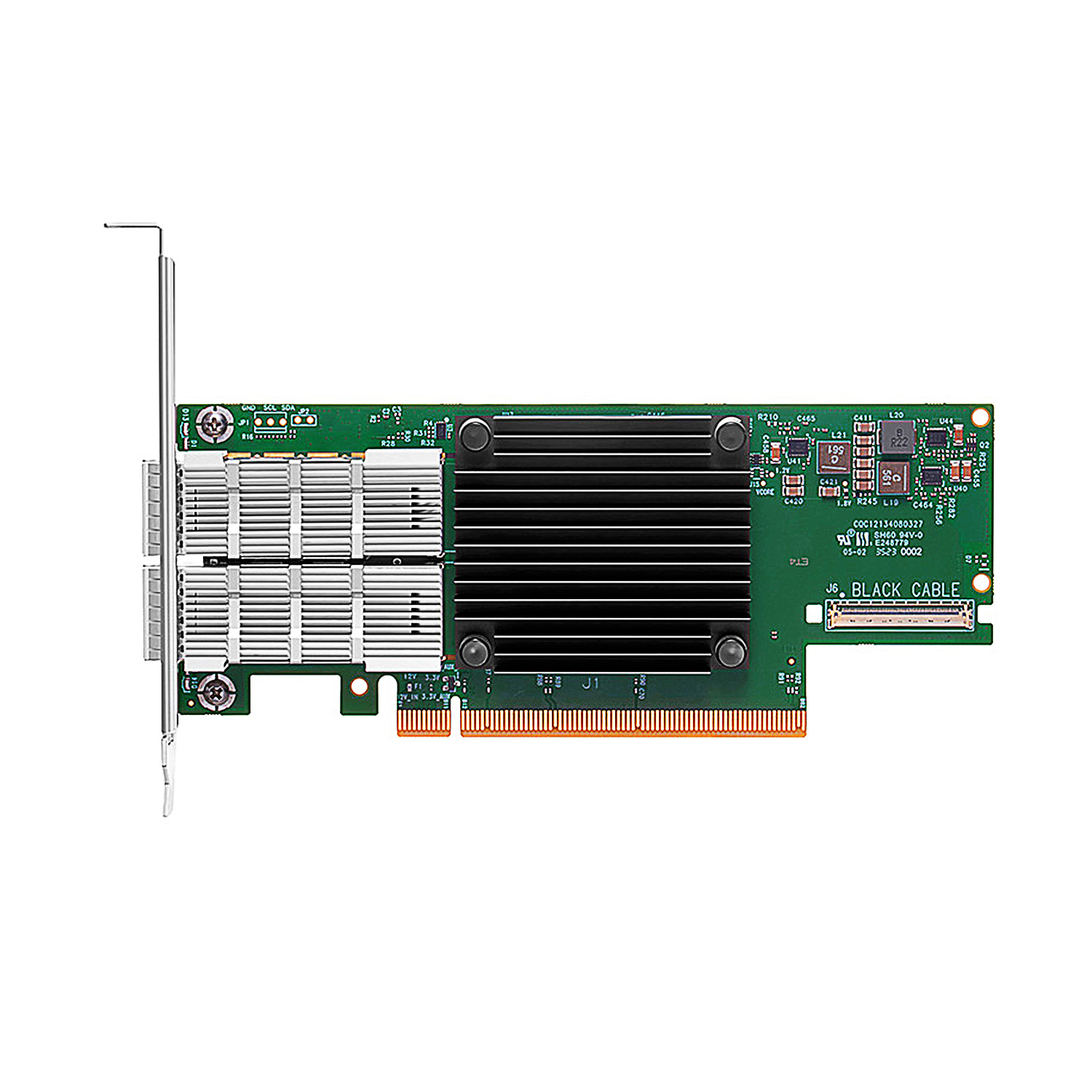

NVIDIA MCX653106A-HDAT Mellanox ConnectX®-6 VPI Adapter Card, HDR IB (200Gb/s) and 200GbE, Dual-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00

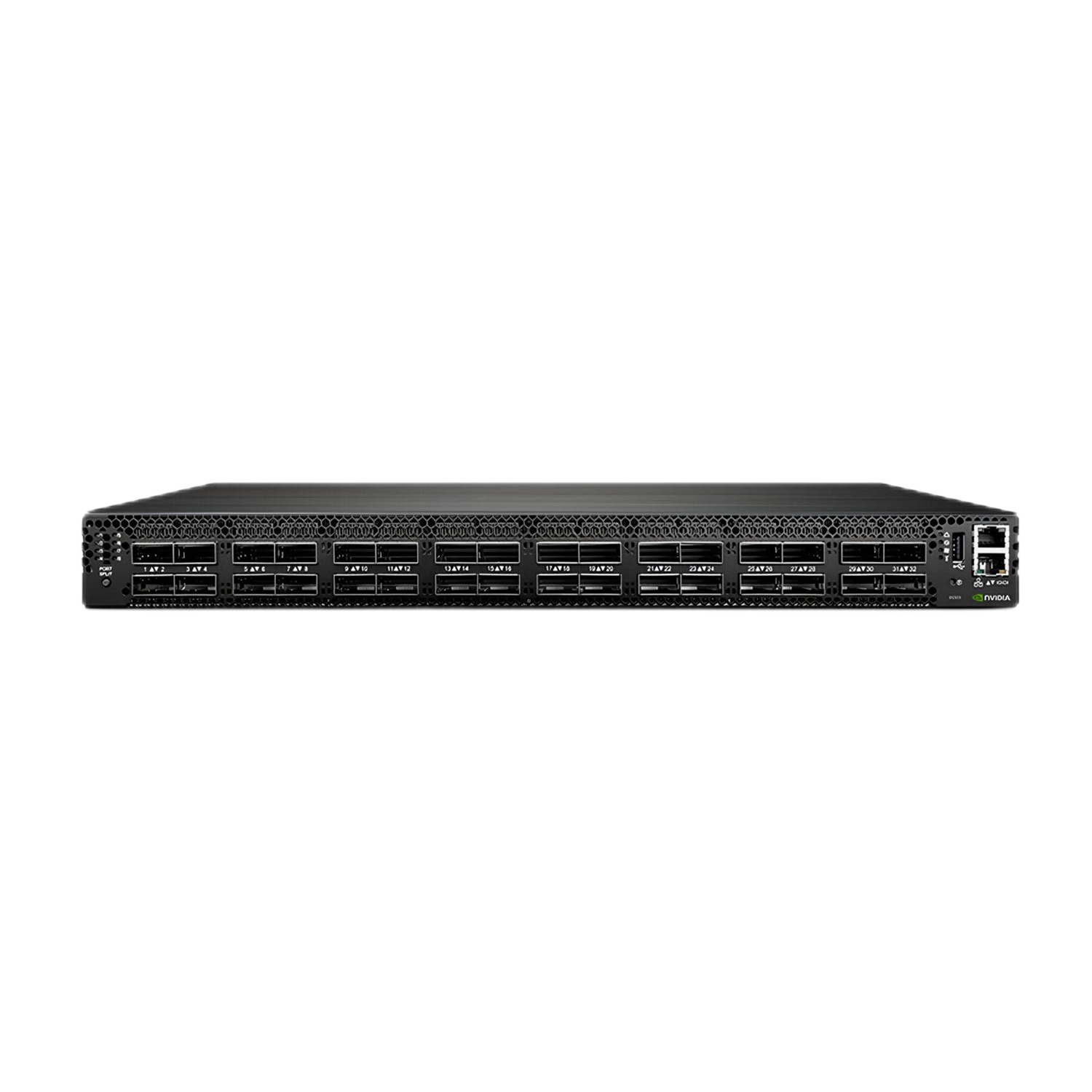

NVIDIA MSN4700-WS2F Mellanox Spectrum-3 Based 400GbE 1U Open Ethernet Switch with Onyx, 32 QSFPDD Ports, 2 Power Supplies (AC), x86 CPU, Standard Depth, P2C Airflow, Rail Kit
US$0.00

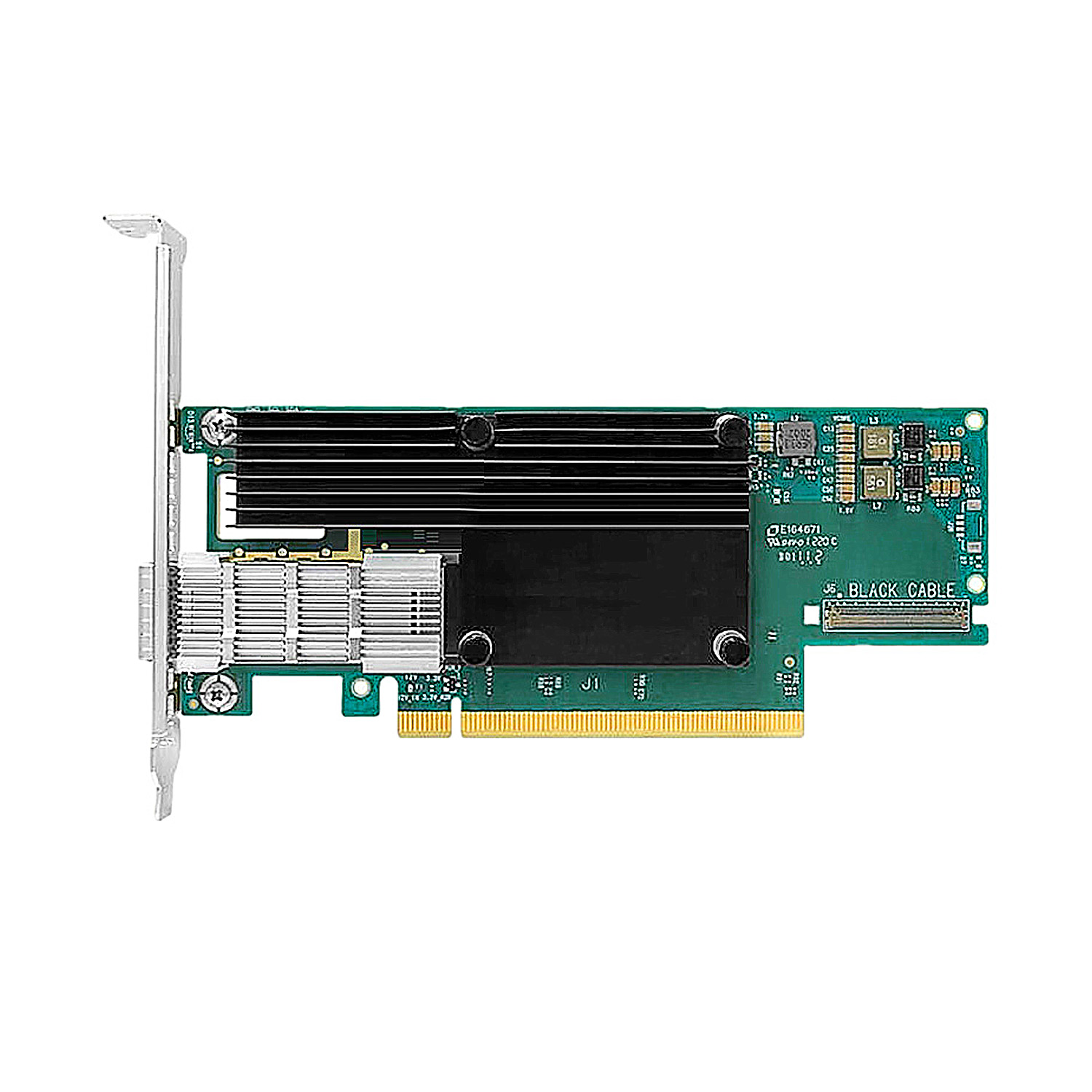

NVIDIA MCX653105A-HDAT Mellanox ConnectX®-6 VPI Adapter Card, HDR IB (200Gb/s) and 200GbE, Single-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00

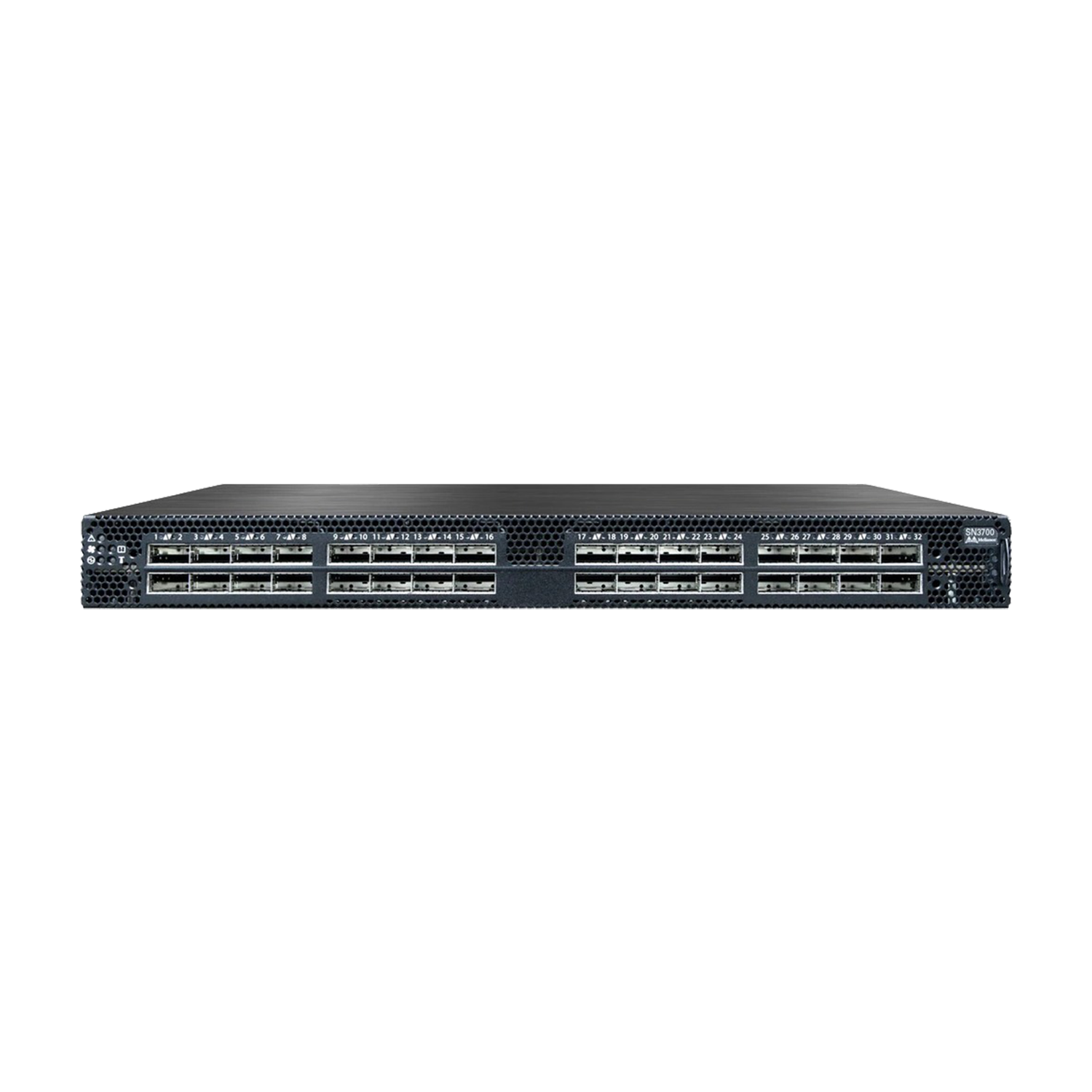

NVIDIA MSN3700-VS2F Mellanox Spectrum-2 Based 200GbE 1U Open Ethernet Switch with NVIDIA Mellanox Onyx, 32 QSFP56 Ports, 2 Power Supplies (AC), Standard Depth, x86 CPU, P2C Airflow, Rail Kit
US$0.00

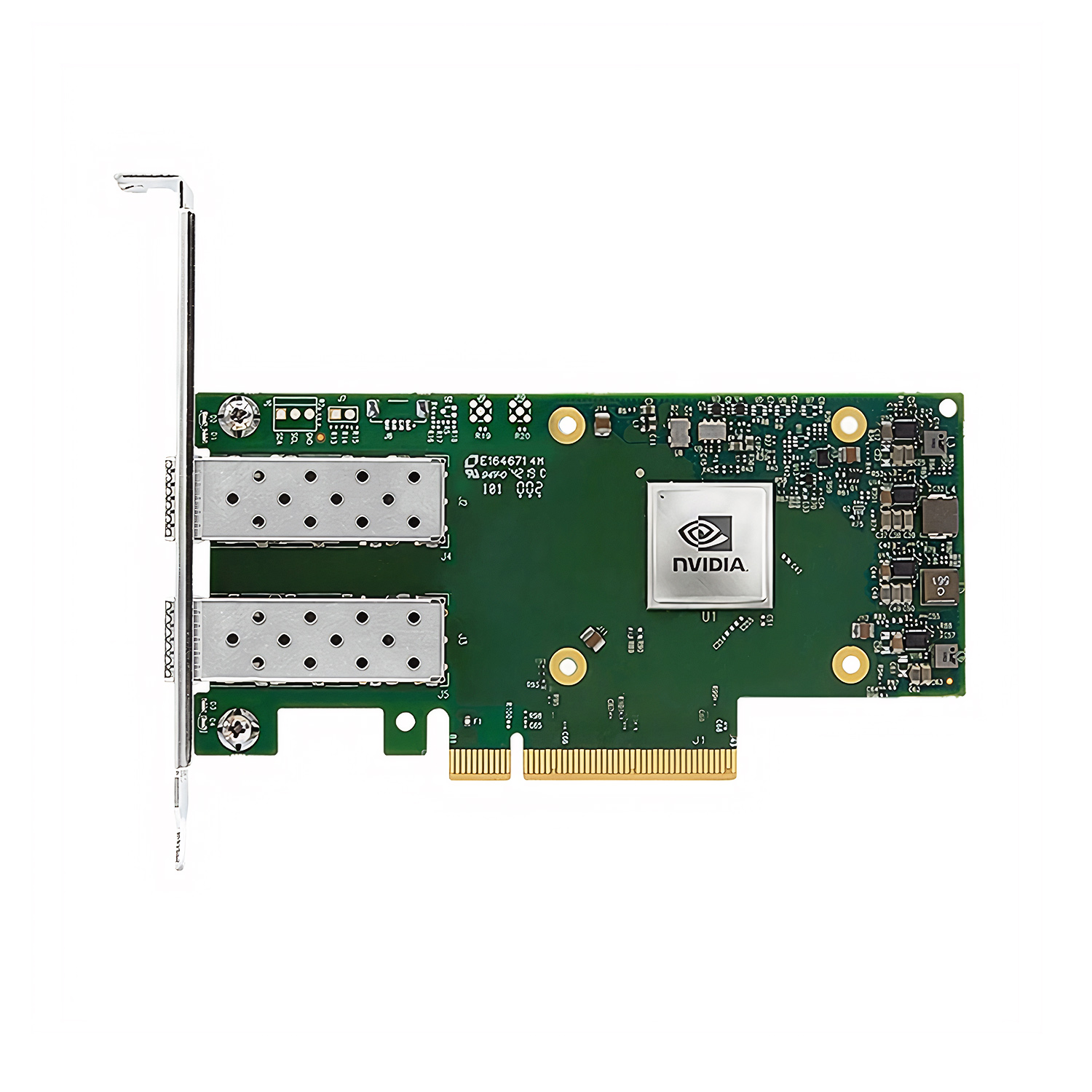

NVIDIA MCX621102AC-ADAT Mellanox ConnectX®-6 Dx EN Adapter Card, 25GbE, Dual-port SFP28, PCIe 4.0 x8, Crypto and Secure Boot, Tall Bracket
US$0.00
NVIDIA MCX516A-CCAT Mellanox ConnectX®-5 EN Network Interface Card, 100GbE Dual-port QSFP28, PCIe Gen 3.0 x16, Tall Bracket
US$0.00

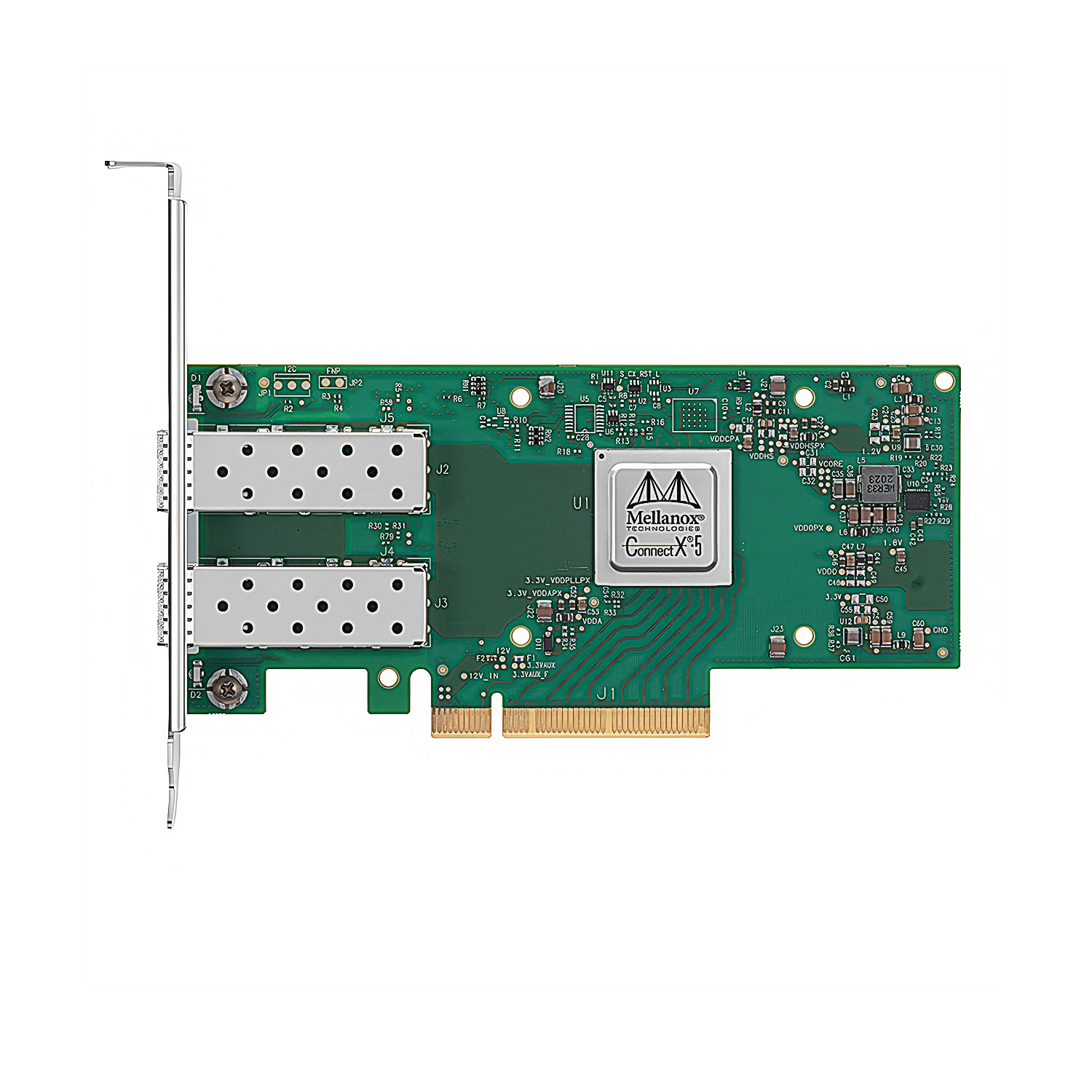

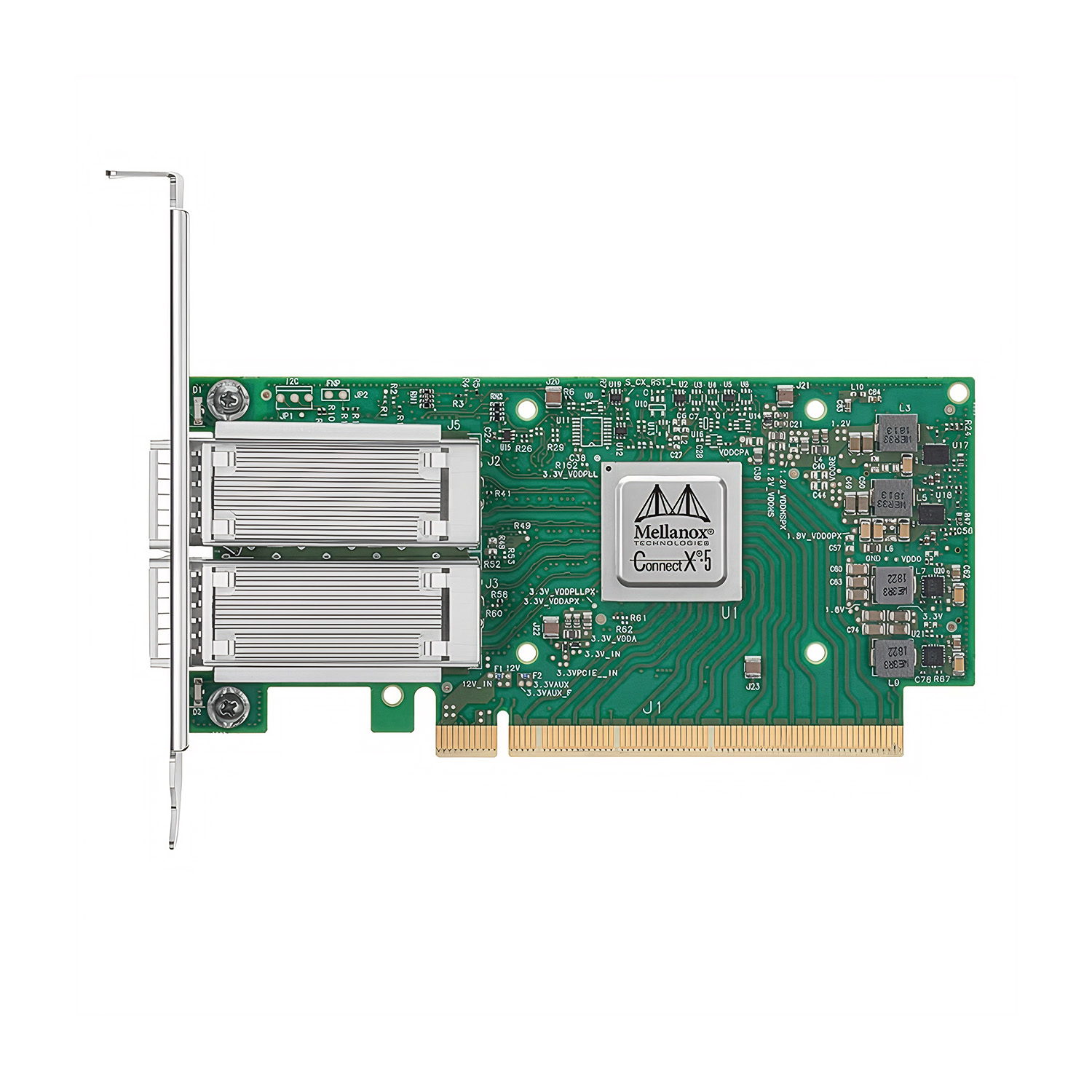

NVIDIA MCX512A-ACAT Mellanox ConnectX®-5 EN Network Interface Card, 25GbE Dual-port SFP28, PCIe Gen 3.0 x8, Tall Bracket
US$0.00
NVIDIA MCX623105AC-CDAT Mellanox ConnectX®-6 Dx EN Adapter Card, 100GbE, Single-port QSFP56, PCIe 4.0 x16, Crypto and Secure Boot, Tall Bracket
US$0.00
NVIDIA MCX653105A-ECAT Mellanox ConnectX®-6 VPI Adapter Card, 100Gb/s (HDR100, EDR IB and 100GbE), Single-port QSFP56, PCIe3.0/4.0 x16, Tall Bracket
US$0.00

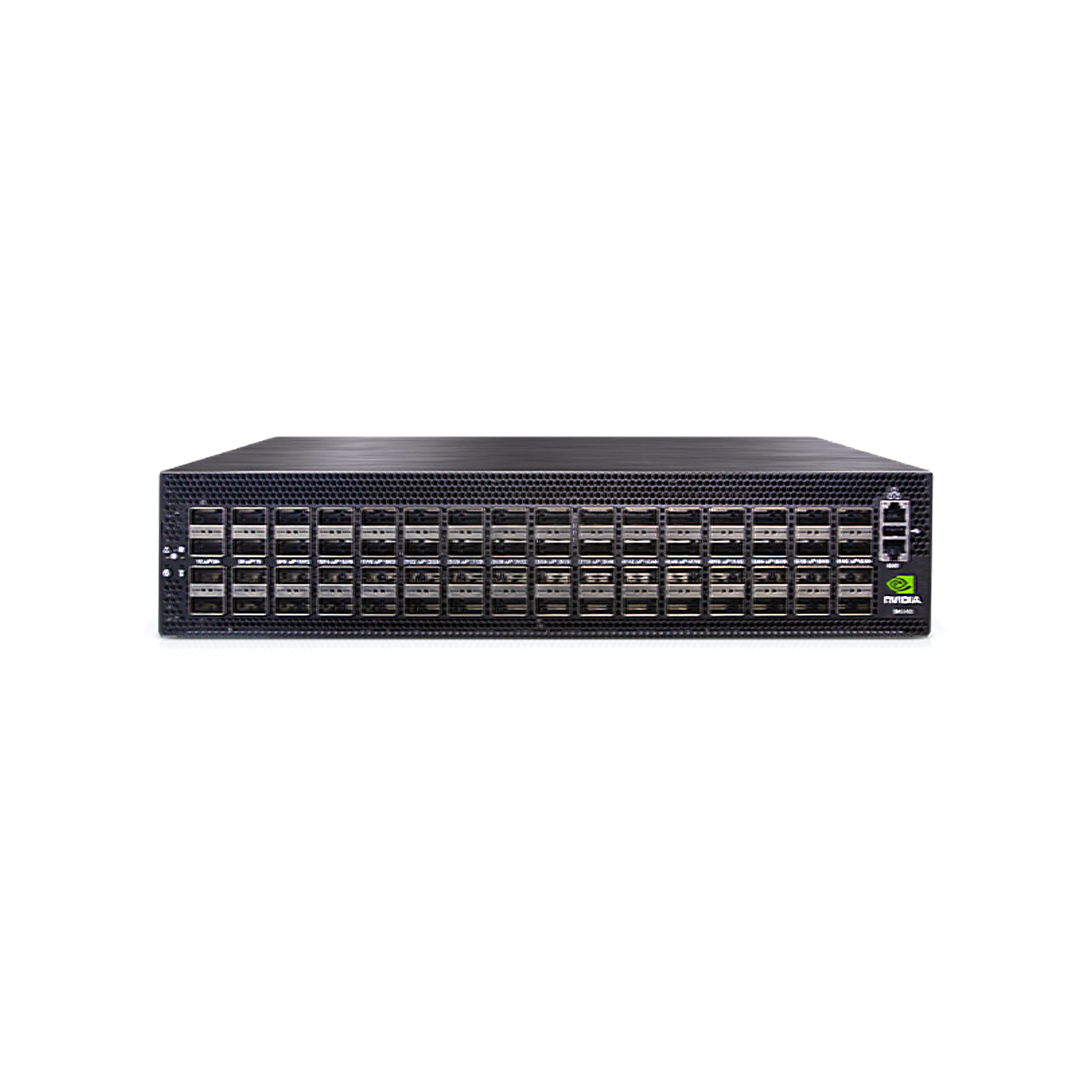

NVIDIA SN5400 Mellanox Spectrum-4 Based 400GbE 2U Open Ethernet Switch with Cumulus Linux Authentication, 64 QSFP56-DD Ports and 1 2xSFP28 Port, 2 Power Supplies (AC), x86 CPU, Secure-boot, Standard Depth, C2P Airflow, Tool-less Rail Kit
