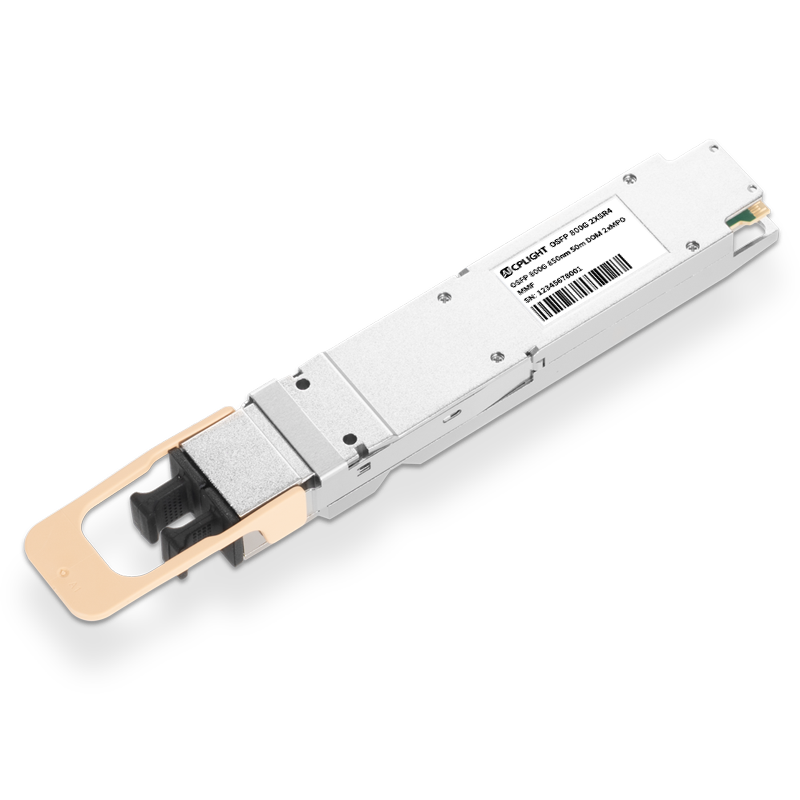

NVIDIA/Mellanox MMA4Z00-NS(980-9I510-00NS00) Compatible 800GBASE 2xSR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF InfiniBand NDR Optical Transceiver Module
NVIDIA/Mellanox MMA4Z00-NS(980-9I510-00NS00) Compatible 800GBASE 2xSR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF InfiniBand NDR Optical Transceiver Module
NVIDIA/Mellanox MMA4Z00-NS(980-9I510-00NS00) Compatible 800GBASE 2xSR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF InfiniBand NDR Optical Transceiver Module
P/N: OSFP-800G-2SR4
US$459.00
4
Solds
8
Reviews
5
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1000 In Stock）

Product Highlights

Qualified for InfiniBand NDR End-to-end Systems
Built-in Marvell 6nm DSP Chip, Max. Power Consumption 16W
Finned-Top OSFP Used in Quantum-2 Air-Cooled Switches
Support 800G-to-Two 400G ConnectX-7 Links or 800G-to-Four 200G ConnectX-7 Links
8x 100G-PAM4 Electrical to Dual 4x 100G-PAM4 Optical Parallel
100% Verified by the Original, Perfectly Compatible with NVIDIA QM9700/9790 Devices
Compliant with OSFP MSA, IEEE 802.3ck, RoHS, and Class 1 Laser Safety, with DDM Support
See more
Specifications
Q&A
Reviews
Resources
NVIDIA/Mellanox MMA4Z00-NS(980-9I510-00NS00) Compatible 800GBASE 2xSR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF InfiniBand NDR Optical Transceiver Module
The NVIDIA/Mellanox InfiniBand MMA4Z00-NS Compatible OSFP Optical Transceiver is an InfiniBand 800Gb/s 2x400Gb/s Twin-port OSFP, SR8 multimode, parallel, 8-channel transceiver using two, 2-fiber, 4-channel MPO-12/APC optical connectors at 400Gb/s each. The parallel multimode, short reach 8-channel (SR8) uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using 8 multimode fibers. It is qualified for use in InfiniBand NDR end-to-end systems.
It is the ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. Used in Quantum-2 air-cooled switches.
Specifications
NVIDIA/Mellanox InfiniBand Compatible
MMA4Z00-NS(980-9I510-00NS00)
Vendor Name
AICPLIGHT
Form Factor
Twin-port OSFP Finned Top
Max Data Rate
850Gbps (8x 106.25Gbps)
Wavelength
850nm
Max Cable Distance
30m@OM3/50m@OM4
Connector
Dual MTP/MPO-12 APC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PD
TX Power
-4.6~4dBm
Minimum Receiver Power
-6.4dBm
Power Budget
1.8dB
Receiver Overload
4dBm
Max Power Consumption
16W
Extinction Ratio
＞2.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
8x100G-PAM4
Modulation (Optical)
Dual 4x100G-PAM4
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
Yes
Protocols
OSFP MSA 5.0 CMIS 5.1
Warranty
5 Years
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Questions & Answers
edit icon Ask a question
All (5) Product (2)Compatibility (1)Installation (1)Performance (1)
Q:

How do I clean MTP connectors before use?

by q***m on 2025-07-08 08:53:04

A:

Use an MTP/MPO one-click cleaner or lint-free wipes with alcohol.

by CPLIGHT on 2025-07-08 09:28:19

like icon Helpful 0
comment icon Comment 0
Q:

What is the maximum distance supported?

by o***m on 2025-07-08 08:48:15

A:

Up to 10km depending on the model and fiber type.

by Helpful on 2025-07-08 09:55:39

like icon Helpful 0
comment icon Comment 0
Q:

Is it compatible with breakout configurations?

by s***m on 2025-07-08 08:11:12

A:

Yes, we support various breakout and parallel transmission structures.

by CPLIGHT on 2025-07-08 09:12:53

like icon Helpful 0
comment icon Comment 0
Q:

Is the firmware upgradeable?

by s***m on 2025-07-07 15:53:14

A:

Some models support firmware upgrades; please contact us for details.

by Helpful on 2025-07-07 17:13:32

like icon Helpful 0
comment icon Comment 0
Q:

What is the average power consumption of this transceiver?

by e***m on 2025-07-07 13:11:23

A:

The average power consumption varies by model, but it typically ranges between 3W to 12W.

by CPLIGHT on 2025-07-07 14:50:04

like icon Helpful 0
comment icon Comment 0
Customer Reviews
edit icon Write a review
All (8) Performance (2)Compatibility (1)Ease of Use (3)Customer Support (2)
G
G***m
2025-07-01 20:44:30
Confirmed Purchase
5.0

This product delivers consistently high-speed transmission with minimal latency. It has become our top choice for deploying in environments that require reliable data throughput, such as AI clusters and financial trading systems.

link icon Helpful 0
comment icon Comment 0
A
A***m
2025-06-23 05:41:54
Confirmed Purchase
5.0

Full compliance with MSA standards made cross-vendor deployment easy. It worked perfectly in our mixed-brand environment.

link icon Helpful 0
comment icon Comment 0
u
u***m
2025-06-06 07:35:45
Confirmed Purchase
5.0

We had a minor configuration issue and received step-by-step remote assistance within an hour. Excellent service.

link icon Helpful 0
comment icon Comment 0
I
I***m
2025-06-03 15:47:14
Confirmed Purchase
5.0

Clearly labeled ports and cables make organizing and managing our high-density racks straightforward.

link icon Helpful 0
comment icon Comment 0
I
I***m
2025-05-26 02:13:17
Confirmed Purchase
5.0

Post-sales follow-up ensured we were satisfied and fully operational. This level of care is rare these days.

link icon Helpful 0
comment icon Comment 0
d
d***m
2025-05-02 03:30:57
Confirmed Purchase
5.0

The installation process was intuitive and required no special training. Our technicians completed the setup within minutes.

link icon Helpful 0
comment icon Comment 0
b
b***m
2025-04-23 12:57:28
Confirmed Purchase
5.0

We deployed this in a mission-critical backbone network, and it has been operating without any issues for over six months.

link icon Helpful 0
comment icon Comment 0
9
9***m
2025-04-14 18:52:24
Confirmed Purchase
5.0

These cables came pre-tested and cleaned, reducing prep time before deployment. A small but valuable touch.

link icon Helpful 0
comment icon Comment 0
