COMPATIBILITY
ALL TRADEMARKS, REGISTERED COMPANIES & REFERENCES CITED ARE THE SOLE PROPERTY OF THEIR RESPECTIVE COMPANY AND ARE USED SOLELY TO ASSIST IN THE IDENTIFICATION OF PRODUCTS.
- NVIDIA/Mellanox MCP7Y00-N00A COMPATIBLE

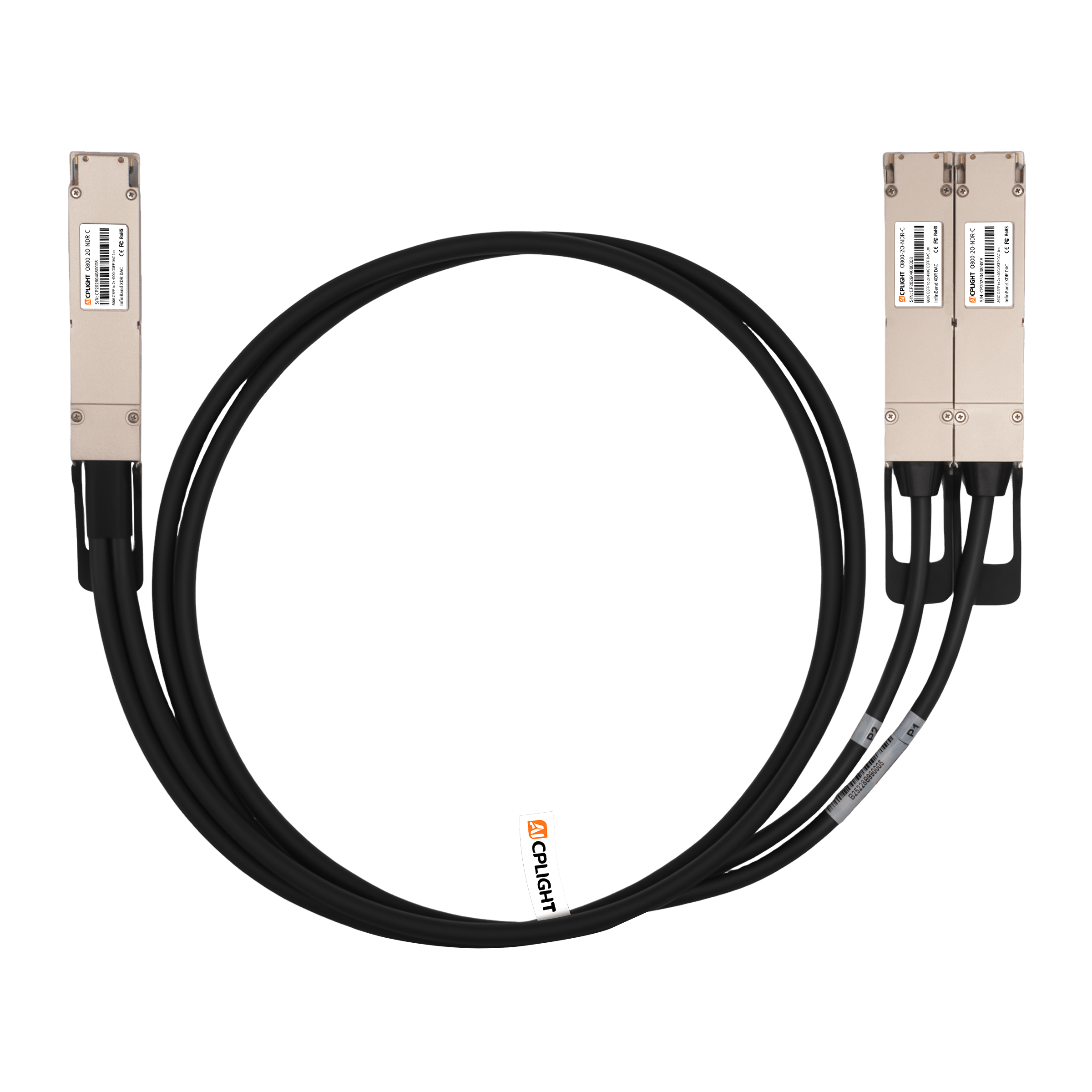

800G OSFP Finned Top to 2x 400G OSFP Flat Top InfiniBand NDR Passive Direct Attach Copper Breakout Cable
P/N: O800-2O-NDR-C SKU: 30301
US$152.00
Compatible Brands:
MSA Standard
NVIDIA(InfiniBand)
Length:
0.5m (1.6ft)
1m (3ft)
1.5m (5ft)
2m (7ft)
3m (10ft)
Length Price Table
| Length | Price |
|---|---|
| 0.5m (1.6ft) | US$152.00 |
| 1m (3ft) | US$169.00 |
| 1.5m (5ft) | US$188.00 |
| 2m (7ft) | US$206.00 |
| 3m (10ft) | US$249.00 |
Quantity:
-
30-day return and refund
-
3-year warranty
-
Available for delivery within 2 days
-
Free shipping for orders over
Products Highlight
- InfiniBand NDR System Qualified
- 800G to 2x400G Breakout
- 8x100G PAM4 Lane Mapping
- Near-Zero Power Consumption
- 58mm Minimum Bend Radius
- OSFP MSA Rev5.0 Compliant
Specifications
| Connector Type | OSFP(Finned Top) to 2x OSFP(Flat Top) | Data Rate | 850Gbps to 2x 425Gbps |
|---|---|---|---|
| Media | Copper | Cable Type | DAC |
| Cable Length | 1m~3m(3ft~10ft) | Outer Diameter | 1m@AWG 30 1.5m~3m@AWG 26 |
| Jacket Material | PVC | Minimum Bend Radius | 23mm@AWG 30 33mm@AWG 26 |
| Power Consumption | ≤0.1W | Case Operating Temperature | 0 to 70°C (32 to 158°F) |
| Protocol | 2x 400G Breakout Ethernet 2x 400G RoCE 2x 400G Infiniband NDR | Application | Switch to NIC |
Applications
Certification
Features
Switch Series & Supported Models
Browse common switch series and models supported for each brand.
Resources
FAQ
Ask a QuestionFind answers to common questions about our products.
How far can this passive 800G to 2x400G OSFP DAC run?
The maximum reach is typically up to 3m. It is intended for short-reach connections within the same rack or between nearby racks.
Why is the power consumption so low on this passive DAC cable?
Because it is a passive copper cable and does not use active optical components or signal retiming electronics. Its maximum power consumption is very low, typically around 0.1W.
Can an NDR200 link connect directly to an HDR 200G link?
No. NDR200 and HDR 200G use different lane architectures, so they are not directly interoperable even though both are described as 200G.
Have a question?
Our technical support team is here to help you find the right solution.
Contact Us
Questions & Answers Title
Ask a questionWe were on a tight project schedule, so the quick delivery really helped. The AICPLIGHT high-speed cables tested smoothly and didn’t hold up our deployment.
We used it between a switch and NIC, and the connection has been solid. The cable is a bit stiffer than expected, but it was fine for a short run.
We ran it in our test environment for a few days, and it performed better than expected. The ports recognized it properly, and we didn’t see any link drops.
