1. Introduction

In the rapidly evolving high-speed networking landscape, data center upgrades often face compatibility challenges between legacy and new equipment with differing technical standards. Efficiently adapting low-speed modules to high-speed ports or bridging connections between different form factors has become a critical task for network engineers. This is where Converter Optical Modules (CVR) come into play. This article provides an in-depth analysis of CVR modules—their definition, types, working principles, and core advantages—to help you make flexible and cost-effective deployment choices.

2. What is a CVR Optical Module?

CVR stands for Converter. As a specialized category of optical modules, CVRs contain neither optical components (like lasers or receivers) nor fiber interfaces.


Their primary function is to act as a bridge between different port form factors and network speeds. These modules allow high-density, high-bandwidth modern network equipment to accommodate and utilize optical modules with different packaging formats or lower speeds. Whether downgrading high-speed ports for low-speed compatibility or interconnecting high-speed modules with differing standards, CVRs significantly enhance network configuration flexibility and asset utilization.

3. Types of CVR Modules

Optical modules have evolved over decades, with each speed breakthrough spawning multiple form factors. For instance:

  • 10G Era: While SFP+ now dominates, early standards included X2, XENPAK, and XFP.
  • 100G Era: QSFP28 is mainstream today, but CFP, CFP2, and CXP were pioneers.

3.1 Same-Rate CVR Modules

Same-rate CVR modules address form factor compatibility while maintaining identical speeds.

3.1.1 10G XENPAK to 10G SFP+

  • XENPAK: The first standardized 10GbE pluggable module (defined by XENPAK MSA in 2001). Its large size limited 1U panels to 4 ports.
  • 310G XENPAK to 10G SFP+: Due to its large form factor, XENPAK could accommodate only up to four modules in a 1U panel, leading to its eventual replacement by the smaller SFP+. However, numerous legacy devices still feature XENPAK ports requiring 10GE connectivity with newer equipment equipped with SFP+ ports. This necessitated the development of 10G XENPAK to 10G SFP+ conversion modules.
Large finned XENPAK to SFP+ CVR with a front SFP+ slot and locking screws.

3.1.2 10G X2 to 10G SFP+

  • X2: A compact successor to XENPAK (half the size) defined by X2 MSA in 2004, still bulkier than SFP+ (2006).
  • Role: Enables migration from X2-based infrastructure to SFP+ ecosystems.
X2 to SFP+ CVR with a compact metal body, front SFP+ cage, side vents, and rear edge connector.

3.1.3 100G CFP to 100G QSFP28

CFP was the earliest pluggable module standard to achieve 100Gbps transmission, designed in 2009. It initially employed a 10 x 10 configuration to attain 100G speeds. Due to its larger size and higher power consumption, it is better suited for transmission networks and carrier-grade equipment where port density requirements are less stringent.

The 100G CFP to 100G QSFP28 conversion module offers two hardware variants based on the paired QSFP28 optical module type:

  • Type A: For SR4/CWDM4/eCWDM4/PSM4 QSFP28 modules.
  • Type B: For LR4/ER4 QSFP28 modules.
CFP to QSFP28 CVR with a wide metal housing, front QSFP28 opening, and two thumb screws.

3.2 Multi-Rate CVR Modules

Different-rate CVR modules primarily enable speed downgrade compatibility, allowing high-speed ports to interoperate with low-speed modules.

3.2.1 40G QSFP+ to 10G SFP+

The 40G QSFP+ to 10G SFP+ CVR optical module enables the use of SFP or SFP+ packaged optical modules or cables on high-speed switch ports that only support QSFP packaging. It works by extracting one channel from the four signals on the QSFP port for conversion.

QSFP+ to SFP+ CVR with an SFP slot exposed and a black pull tab for removal.

Notably, it supports not only 10G SFP+ but also 1G SFP, enabling 40G to 1G down-speed applications.

3.2.2 100G QSFP28 to 25G SFP28

The 100G QSFP28 to 25G SFP28 operates similarly to the 40G QSFP+ to 10G SFP+ mechanism, but it is exclusively compatible with 25G SFP28 optical modules. It cannot be used with 10G SFP+ or 1G SFP modules.

QSFP28 to SFP28 CVR with a blue pull tab and a visible SFP-style slot inside the housing.

Since 25G SFP28 modules operate near the speed limit of NRZ modulation, they typically integrate CDR (Clock and Data Recovery) functionality and require FEC (Forward Error Correction) support from the receiving equipment during transmission. These features are absent in 10G SFP+ and 1G SFP modules, making them incompatible.

3.2.3 400G OSFP to 100G QSFP28

As 400G switches increasingly become mainstream in large enterprise data centers, their port formats vary, including OSFP, QSFP-DD, and QSFP112.

OSFP to QSFP28 CVR shown from top and bottom, with black pull tabs and QSFP-style openings.

Both QSFP-DD and QSFP112 belong to the QSFP family, offering excellent forward compatibility. Consequently, 100G QSFP28 optical modules can be directly installed in QSFP-DD or QSFP112 switches.

However, due to its larger form factor, OSFP cannot directly accommodate 100G QSFP28 optical modules. Therefore, a 400G OSFP to 100G QSFP28 CVR optical module is required to achieve compatibility.

4. CVR Module Usage

Operation: Simply insert the smaller-form-factor module (e.g., SFP+) into the CVR’s interface. For example: A 10G SFP+ module plugged into a QSFP+-to-SFP+ CVR enables 40G→10G connectivity.

A 10G SFP+ transceiver aligned with a QSFP+ to SFP+ CVR, with an arrow showing the plug-in direction.


Key Notes:

  • Role: CVR acts as a signal converter only—no optical processing.
  • Distance: Determined by the inserted module (e.g., 40km for 10G SFP+ ER vs. 300m for 10G SFP+ SR).

5. CVR Application Diagram

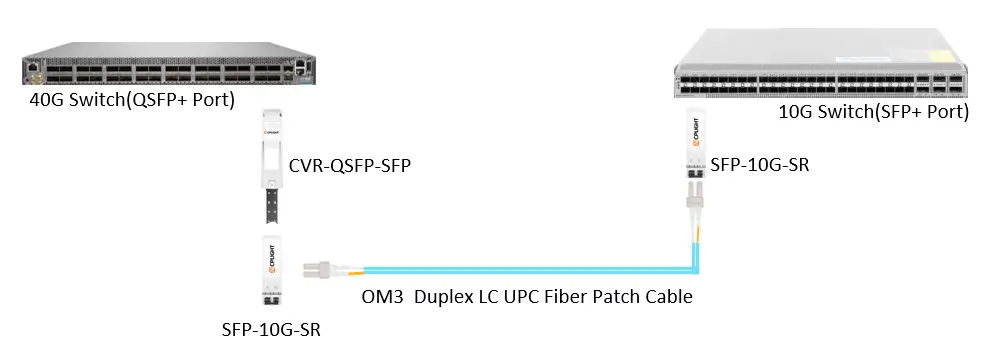

40G QSFP+ switch linked through a CVR and SFP-10G-SR modules to a 10G SFP+ switch over OM3 duplex LC fiber.

6. CVR Advantages

6.1 Enhanced Equipment Utilization

  • Value: Extends the lifespan of legacy devices (e.g., XENPAK/X2 switches) by bridging them to modern infrastructure.
  • Cost Savings: Avoids expensive “rip-and-replace” upgrades.

6.2 Speed Downgrade Flexibility

  • Use Case: Deploy 1G/10G SFP/SFP+ modules in 40G/100G QSFP+/QSFP28 ports.
  • Example: Reuse existing 10G DAC cables in 40G switches via CVR.

6.3 Strong Interoperability

  • Solution: Mix QSFP28, CFP, and OSFP modules in the same chassis.
  • Scenario: Gradually migrate from 100G CFP to QSFP28 without full hardware overhaul.

6.4 Plug-and-Play Deployment

  • Ease: Tool-free insertion/removal of CVR and host modules.
  • Maintenance: Simplifies field swaps and topology adjustments.

6.5 Reduced Power Consumption

CVR optical modules function solely as signal converters, resulting in extremely low power consumption. In contrast, larger, earlier-generation optical modules often consume significantly more power.

1. Introduction

In today’s digital world, internet access has become an essential part of our lives, supporting our work, entertainment, and daily communication. But among the various connection methods, do you truly understand their differences? From traditional Digital Subscriber Line (DSL), to widely adopted Cable Internet, and future-speed Fiber Cable, each technology has its unique principles, advantages, and limitations. This article will delve into these three technologies, helping you clearly understand their working mechanisms, performance differences, and current market positions, so you can make the best choice for your home or business.

2. What is DSL

DSL (Digital Subscriber Line) is a technology that transmits both voice and internet data over telephone lines. Although DSL connections are generally slower than cable internet, they are more affordable and do not require bandwidth sharing with neighbors like cable networks. Each DSL user has a dedicated line rather than a shared one. As an early broadband access solution, DSL was widely used in home networks, but its market share is now gradually declining, being replaced by more advanced technologies like Ethernet or fiber.

DSL diagram shows telephone poles carrying phone and internet signal to a house with a receiver, modem router, phone, and devices.

DSL has multiple variants, including HDSL, SDSL, VDSL, ADSL, and RADSL, collectively referred to as xDSL. DSL cables typically use telephone lines, commonly with 2-core, 4-core, 6-core, and 8-core types, with 4-core being the most prevalent. Two-core cables are mainly used for analog signal transmission, while four-core supports digital phone signals.

3. What is Cable Internet

Cable internet is a high-speed access technology that utilizes cable modems and coaxial cables to connect to an Internet Service Provider (ISP). Typically offered by cable television providers, this service features wide coverage and multiple speed options. ISPs provide customers with a modem—more accurately, a gateway device that integrates both modem and Wi-Fi router functionality. Installation simply requires connecting the coaxial cable in your home to the back of the modem.

Home viewing scene with a person watching a wall-mounted screen and floating media thumbnails in the cable internet section.

While cable internet offers advantages like high availability and speed options, a key drawback is that the bandwidth sharing among neighbors. During peak usage hours, simultaneous connections within the same area may result in slower speeds.

4. What is Fiber Cable

Fiber optic networks deliver the world’s fastest internet speeds by transmitting data as light pulses through glass fibers, leveraging the principle of total internal reflection. There are two main types:

  • Multimode Fiber: Uses 850 nm or 1310 nm wavelengths for short-distance transmission.
  • Single-mode Fiber: Operates at 1550 nm for long-distance connectivity.

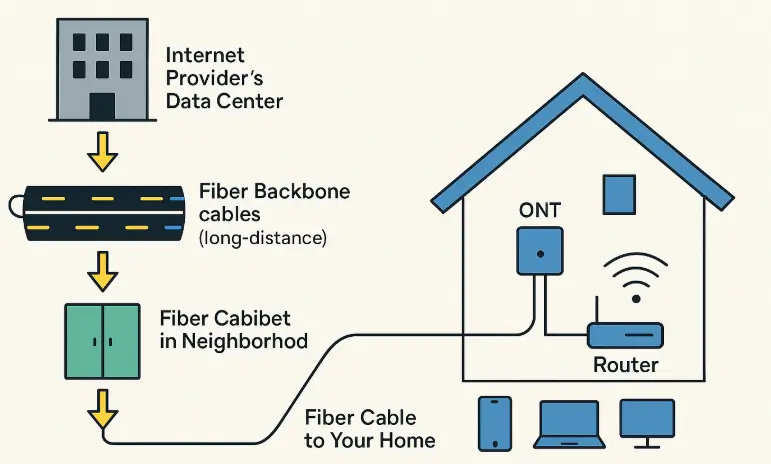

Fiber access diagram shows a provider data center, backbone cables, neighborhood cabinet, fiber cable to the home, ONT, and router.

Compared to traditional copper cables, fiber offers:

  • Greater Bandwidth: Advanced technologies maximize capacity.
  • Lower Attenuation: Quartz fibers experience minimal signal loss over long distances.
  • Enhanced Security: The outer cladding absorbs light leakage, preventing interference, crosstalk, and data interception.

5. DSL vs Cable vs Fiber: Technical Comparison

FeatureDSLCableFiber Cable
MaterialCopper telephone linesCopper coaxial cableGlass/polymer fibers
Signal TypeElectricalElectricalOptical (light)
Max Speed~52 Mbps (VDSL2)~10 Gbps (DOCSIS 4.0)Virtually unlimited (100G+ commercially available)
Range~5.5 km~100 m (node-dependent)MMF: ~2 km
SMF: ~200 km
InterferenceHighly susceptible to EMIShielded, but still affectedImmune to EMI
SecurityVulnerable to tappingVulnerable to tappingNearly impossible to intercept

5.1 Current State of DSL, Cable, and Fiber Industries

While specific data may vary over time, cable internet remains the primary broadband access method for American households, while fiber is growing rapidly and DSL continues to lose market share. Fiber is accelerating its deployment and penetration in the premium market, while fixed wireless access (FWA) stands out in meeting low-cost and mid-speed demands. Cable internet is on the defensive, maintaining its position through technological upgrades, whereas DSL is gradually being phased out.

Regardless of how technology evolves, the future winners will be those companies focused on helping customers connect efficiently, rather than providers clinging to traditional positions and creating obstacles.

6. Which Network is Right for You?


For users with extremely limited budgets, DSL may be the best choice as it is typically the most economical option, with some local support programs potentially covering its costs. Most households require internet for daily activities, and cable internet, as a widely available and affordable option, has served users for decades. As fiber networks expand to more areas at lower prices, they are quickly becoming the top choice for users seeking high-speed experiences.
