5m (16ft) HPE Aruba Compatible 25G SFP28 Passive Direct Attach Copper Twinax Cable
5m (16ft) HPE Aruba Compatible 25G SFP28 Passive Direct Attach Copper Twinax Cable
5m (16ft) HPE Aruba Compatible 25G SFP28 Passive Direct Attach Copper Twinax Cable
P/N: SFP-25G-CU
US$33.00
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 0.5W
Low Loss and Crosstalk for Better Performance
Minimum Bend Radius 21.25mm for Flexible Routing
Simplify Patching and Cost-effectively Handle Short Links
Specifications
Q&A
Reviews
Resources
5m (16ft) HPE Aruba Compatible 25G SFP28 Passive Direct Attach Copper Twinax Cable

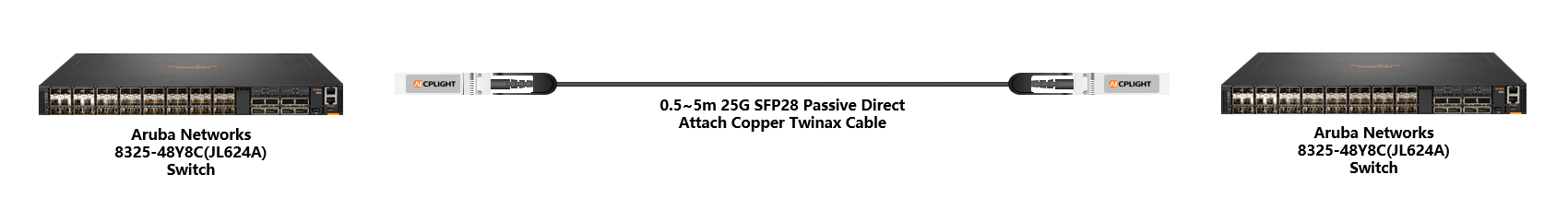

The 25G SFP28 Passive Direct Attach Copper Twinax Cable is designed for use in 25GBASE Ethernet. This cable is compliant with IEEE P802.3by Ethernet standard and SFP28 MSA Compliant. Each SFP28 connector comprises an EEPROM providing product information which can be read by the host system. With these features, this easy to install, high speed, cost-effective direct attach copper twinax Cable is suitable for short-distance connectivity within a rack or between adjacent racks in data centers.
Specifications
Part Number
SFP-25G-CU
Vendor Name
CPLIGHT
Connector Type
SFP28 to SFP28
Max Data Rate
25Gbps
Minimum Bend Radius
21.25mm
Wire AWG
30AWG
Cable Length
5m (16ft)
Jacket Material
PVC (OFNR)
Typical Power Consumption
≤0.5W
Power Supply
3.3V
Temperature
0 to 70°C (32 to 158°F)
Protocols
IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
Application
25G Ethernet, Data Center, 5G Wireless
Warranty
5 Years
Certification
