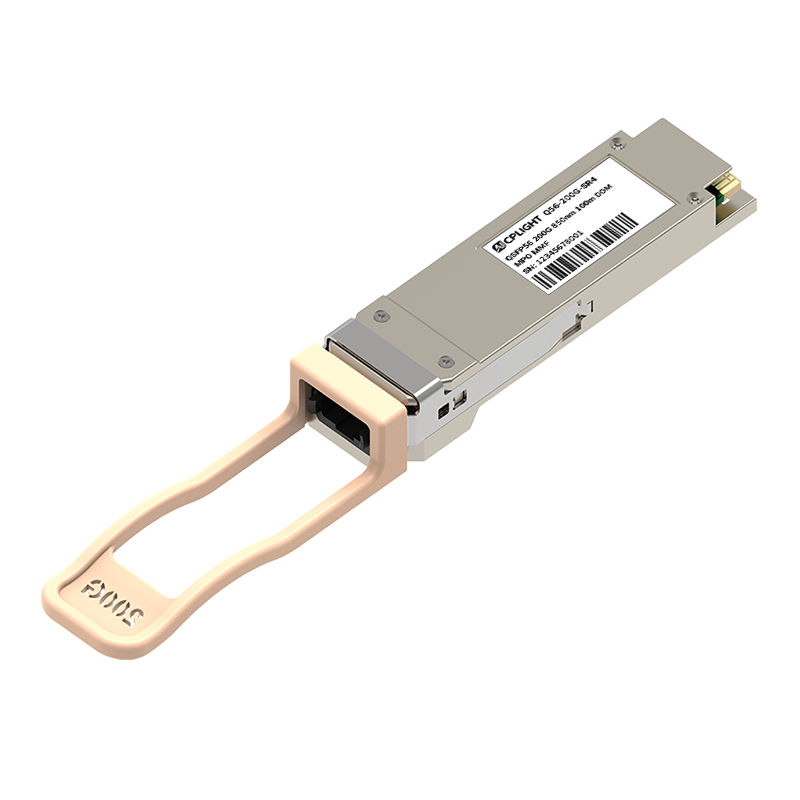

NVIDIA/Mellanox MMA1T00-HS Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12/UPC MMF InfiniBand HDR Optical Transceiver Module for Quantum Switches and ConnectX-6 HCA
P/N: Q56-200G-SR4
US$189.00
1
Solds
8
Reviews
4
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
(1000 In Stock)

Product Highlights

Qualified for InfiniBand HDR End-to-End Systems
Built-in Marvell Chip, Max. Power Consumption 5W
Support 200G-to-200G Links for Switch-to-Switch or Switch-to-Adapter
4x 50G-PAM4 Electrical to 4x 50G-PAM4 Optical Parallel
100% Verified by the Original, Perfectly Compatible with QM8700/8790 Devices and ConnectX-6 Adapters
Compliant with QSFP56 MSA, IEEE 802.3bs and Class 1 Laser Safety, with DDM Support
See more
NVIDIA/Mellanox MMA1T00-HS Compatible 200GBASE-SR4 QSFP56 850nm 100m DOM MPO-12/UPC MMF InfiniBand HDR Optical Transceiver Module for Quantum Switches and ConnectX-6 HCA
The NVIDIA/Mellanox MMA1T00-HS Compatible QSFP56 InfiniBand HDR Optical Transceiver is an InfiniBand 200Gb/s Single-port QSFP56, SR4 multimode parallel transceiver using a single, 4-channel MPO-12/UPC optical connector. The parallel multimode, short reach 4-channel (SR4) uses 50G-PAM4 modulation and has a maximum fiber reach of 100-meters using 4 multimode fibers. It is qualified for use in InfiniBand HDR end-to-end systems.
It is the ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. Used in QM8700/QM8790 switches and ConnectX-6 adapters.
Specifications
NVIDIA/Mellanox InfiniBand Compatible
MMA1T00-HS
Vendor Name
AICPLIGHT
Form Factor
QSFP56
Max Data Rate
200Gbps
Wavelength
850nm
Max Cable Distance
70m@OM3/100m@OM4
Connector
MPO-12/UPC
Media
MMF
Transmitter Type
VCSEL 850nm
Receiver Type
PIN
TX Power
-6.5~4dBm
Minimum Receiver Power
-6.5dBm
Power Budget
3.5dB
Receiver Overload
5dBm
Max Power Consumption
5W
Extinction Ratio
>3dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
4x50G-PAM4
Modulation (Optical)
4x50G-PAM4
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
No
Protocols
IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636
Application
Infiniband HDR
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Questions & Answers
edit icon Ask a question
All (4) Application (1)Compatibility (1)Installation (1)Performance (1)
Q:

Do these cables support 100Gbps per lane?

by 1***m on 2025-07-08 08:50:44

A:

Yes, some models support up to 100Gbps/lane.

by CPLIGHT on 2025-07-08 09:57:28

like icon Helpful 1
comment icon Comment 0
Q:

What fiber connectors are supported?

by K***m on 2025-07-08 08:38:49

A:

We support LC, MPO, and MTP connectors based on the module type.

by Helpful on 2025-07-08 09:03:30

like icon Helpful 0
comment icon Comment 1
Q:

Is polarity important during installation?

by 1***m on 2025-07-08 08:06:21

A:

Yes, ensure Type A/B polarity matches across the link.

by Helpful on 2025-07-08 09:41:50

like icon Helpful 0
comment icon Comment 0
Q:

Can this cable be used for GPU interconnect?

by I***m on 2025-07-08 07:50:39

A:

Yes, especially our IB and AOC cables are ideal for GPU-to-GPU communication.

by Helpful on 2025-07-08 09:16:37

like icon Helpful 1
comment icon Comment 0
