Cisco Compatible 25GBASE-LR SFP28 25G 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
P/N: SFP-25G-LR
US$338.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Macom Chip, Max. Power Consumption 1.2W
Interoperable with Other IEEE-compliant 25G Interfaces for Seamless Integration
Tested in Targeted Switch for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3by and IEEE 802.3cc
Applied in 25G Ethernet, Telecom, and Data Center
Hot Pluggable SFP28 MSA Compliant
Class 1 FDA Laser Safety and RoHS Compliant
See more
Specifications
Q&A
Reviews
Resources
Cisco Compatible 25GBASE-LR SFP28 25G 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

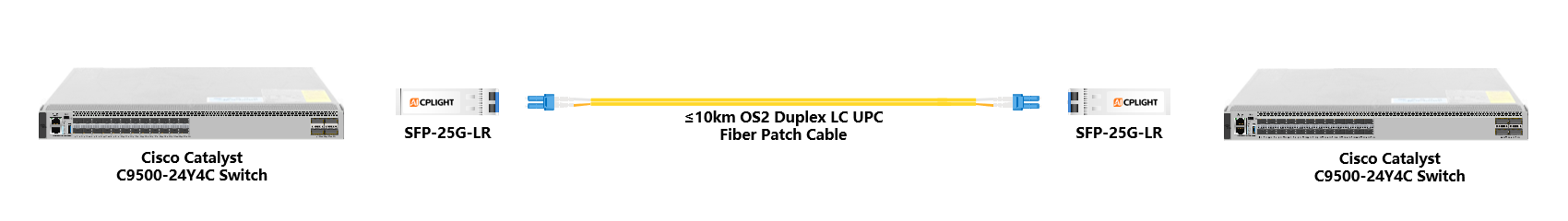

The SFP-25G-LR SFP28 transceiver provides 25GBase-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. The SFP28 transceiver works on the same 10G network cabling Infrastructure, boosting speed by at least 2.5 times. It also features DDM/DOM for real-time monitoring of operating status. This hot-swappable transceiver is pre-programmed, uniquely serialized, and tested for data traffic and application performance. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested in targeted switch, it is fully compliant with the SFP28 MSA, CPRI and eCPRI standard. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center.
Specifications
Part Number
SFP-25G-LR
Vendor Name
CPLIGHT
Form Factor
SFP28
Max Data Rate
25.78Gbps
Wavelength
1310nm
Max Cable Distance
10km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB 1310nm
Receiver Type
PIN
TX Power
-4~2dBm
Minimum Receiver Power
<-12dBm
Power Budget
8dB
Receiver Overload
2dBm
Power Consumption
≤1.2W
Extinction Ratio
3.5dB
CDR (Clock and Data Recovery)
TX & RX
Inbuilt FEC
Yes
Commercial Temperature Range
0 to 70°C (32 to 158°F)
DDM/DOM
Supported
Core Size
G.652
Packaging Technology
BOX Packaging
Protocols
MSA Compliant, CPRI, eCPRI
Warranty
5 Years
Certification
Features
