Cisco Compatible 10GBASE-LR SFP+ 10G 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
P/N: SFP-10G-LR
US$98.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Semtech Chip, Max. Power Consumption 1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable SFP+ MSA Compliant
Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
TO Package Features High Reliability and Robust Physical Protection
Class 1 FDA Laser Safety and RoHS Compliant
IEEE 802.3ae Compliant
See more
Specifications
Q&A
Reviews
Resources
Cisco Compatible 10GBASE-LR SFP+ 10G 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
The SFP-10G-LR SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
Specifications
Part Number
SFP-10G-LR
Vendor Name
CPLIGHT
Form Factor
SFP+
Max Data Rate
10.3125Gbps
Wavelength
1310nm
Max Cable Distance
10km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-8.2~0.5dBm
Receiver Sensitivity
< -14.4dBm
Power Budget
6.2dB
Receiver Overload
0.5dBm
Typical Power Consumption
≤1W
Extinction Ratio
>3.5dB
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Core Size
9/125µm
Modulation
NRZ
Protocols
IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
Ubiquiti Compatible 100GBASE-LR4 QSFP28 100G 1310nm 10km Duplex LC/UPC Module SMF Transceiver Module
US$1000.00
Arista Compatible 800G OSFP Finned Top OSFP 2x FR4 2km 1310nm Dual LC/UPC, Finned Top
US$11000.00
Huawei Compatible 10GBASE-LR SFP+ 10G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
US$98.00
NVIDIA/Mellanox Compatible 400G QSFP-DD SR4 100m 850nm MPO-12/APC Transceiver Module
US$2800.00
Finisar Compatible 100GBASE-LR4 QSFP28 100G 1310nm 10km Duplex LC/UPC Module SMF Transceiver Module
US$1000.00

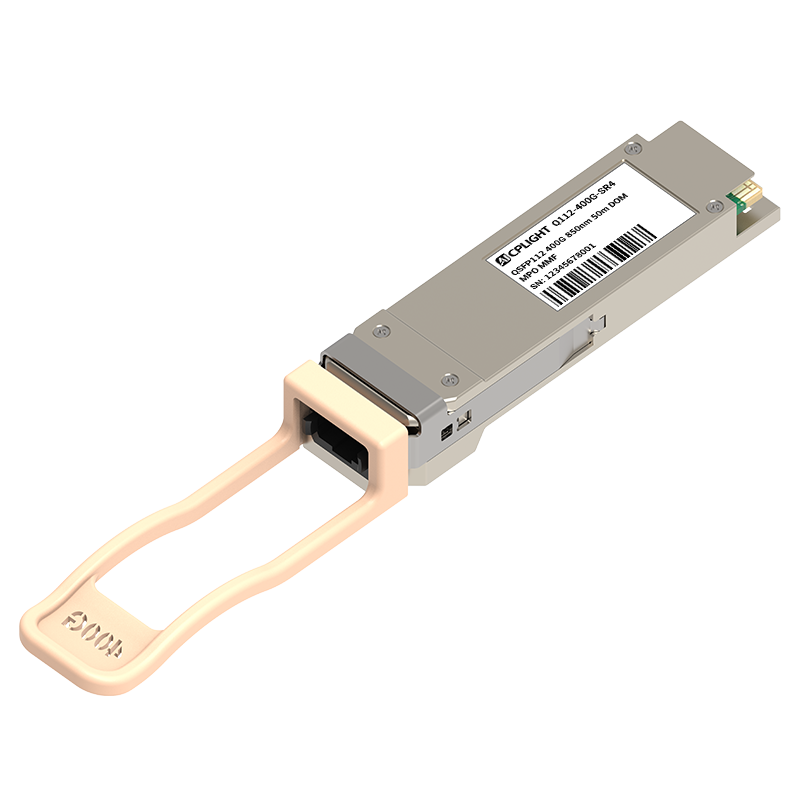

400G QSFP112 MMA1Z00-NS400 SR4 50m 850nm MPO-12/APC NDR, NVIDIA (IB)
US$2900.00
Dell Compatible 800G OSFP OSFP-800G-2xR4 2x SR4/SR8 50m 850nm Dual MPO-12/APC, Finned Top
US$6000.00
NVIDIA/Mellanox Compatible 200G QSFP56 QSFP-200G-FR4 FR4 2km 1310nm Duplex LC/UPC SMF Transceiver Module
US$4000.00
Finisar Compatible 25GBASE-SR SFP28 25G 850nm 100m Duplex LC/UPC MMF Transceiver Module
US$135.00

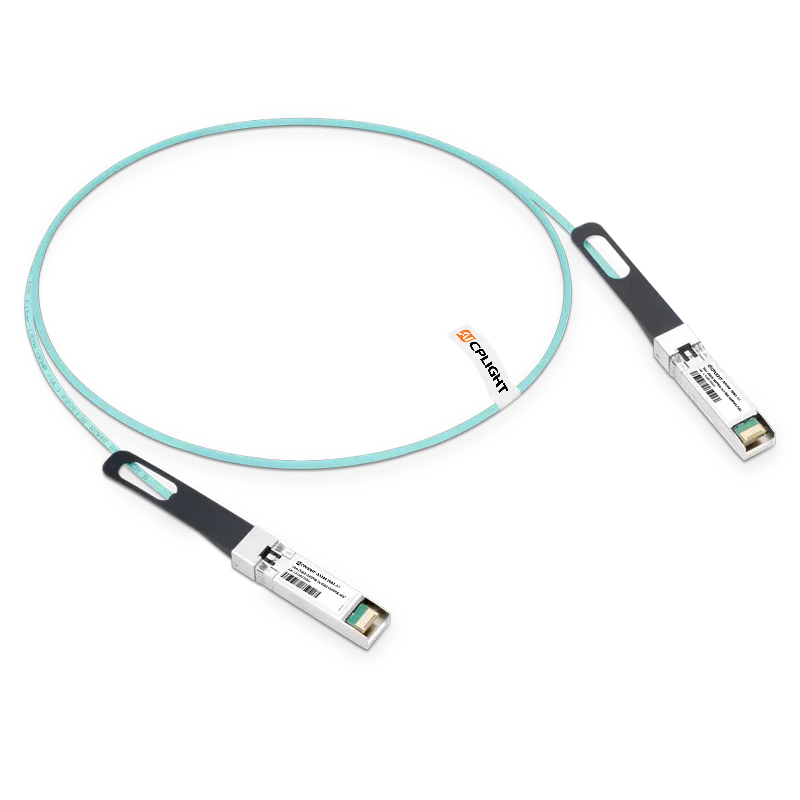

25G SFP28 AOC, 1m (3ft)
