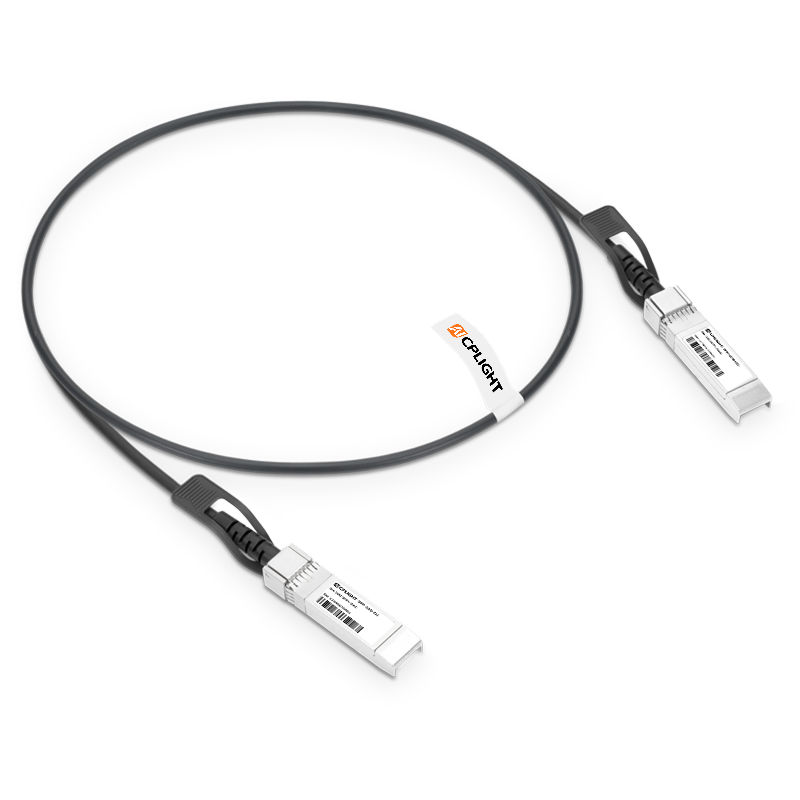

1m (3ft) Cisco SFP-H10GB-CU1M Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
US$14.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 0.1W
Switches Tested for Prime Performance, Quality, Reliability
Minimum Bend Radius 23mm for Flexible Routing
Simplified Patching and Cost-effective Short Links Solution
Specifications
Q&A
Reviews
Resources
1m (3ft) Cisco SFP-H10GB-CU1M Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
The 10G SFP+ Passive Direct Attach Copper Twinax Cable offers a cost-effective connectivity for establishing a 10-Gigabit short-distance connectivity within a rack or between adjacent racks in data centers.
The Passive Direct Attach Cable is an ideal 10GBASE Ethernet network solution that require reliability, low latency, and practically no power consumption. DAC cables are lower cost, more durable than optical fibers. This cable provides low insertion loss and ultra-low crosstalk. And it complies with IEEE 802.3, SFF-8431, and hot-pluggable QSFP28 MSA standards, ensuring reliability of your network with full system testing in targeted Switches.
Specifications
Cisco Compatible
SFP-H10GB-CU1M
Vendor Name
CPLIGHT
Connector Type
SFP+ to SFP+
Max Data Rate
10Gbps
Media
Copper
Power Supply
3.3V
Minimum Bend Radius
23mm
Wire AWG
30AWG
Cable Length
1m (3ft)
Jacket Material
PVC (OFNR)
Cable Type
Passive Twinax
Temperature
0 to 70°C (32 to 158°F)
Power Consumption
≤0.1W
Application
10G Ethernet
Protocols
1x InfiniBand QDR, DDR, SDR, 10 Gigabit Ethernet, Fibre Channel
Warranty
5 Years
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
Extreme Compatible 10GBASE-SR SFP+ 10G 850nm 300m Duplex LC/UPC MMF Transceiver Module
US$59.00
MTP-12 APC to LC UPC Harness, Female, 12 Fibers, OS2, Type B
US$186.00
Cisco Compatible 10GBASE-T Copper SFP+ 30m RJ-45 Transceiver Module
US$180.00
Dell Compatible 800G OSFP 2x DR4/DR8 500m 1310nm Dual MPO-12/APC, Finned Top
US$6800.00
Brocade Compatible 100GBASE-CWDM4 QSFP28 100G 1310nm 2km DOM Duplex LC/UPC SMF Transceiver Module
US$760.00
Huawei Compatible 10GBASE-T Copper SFP+ 30m RJ-45 Transceiver Module
US$180.00
Alcatel-Lucent Compatible 10GBASE-SR SFP+ 10G 850nm 300m Duplex LC/UPC MMF Transceiver Module
US$59.00
Dell Compatible 400G QSFP-DD SR4 100m 850nm MPO-12/APC Transceiver Module
US$2800.00
Generic Compatible 800G OSFP 2x DR4/DR8 500m 1310nm Dual MPO-12/APC, Finned Top
US$6800.00

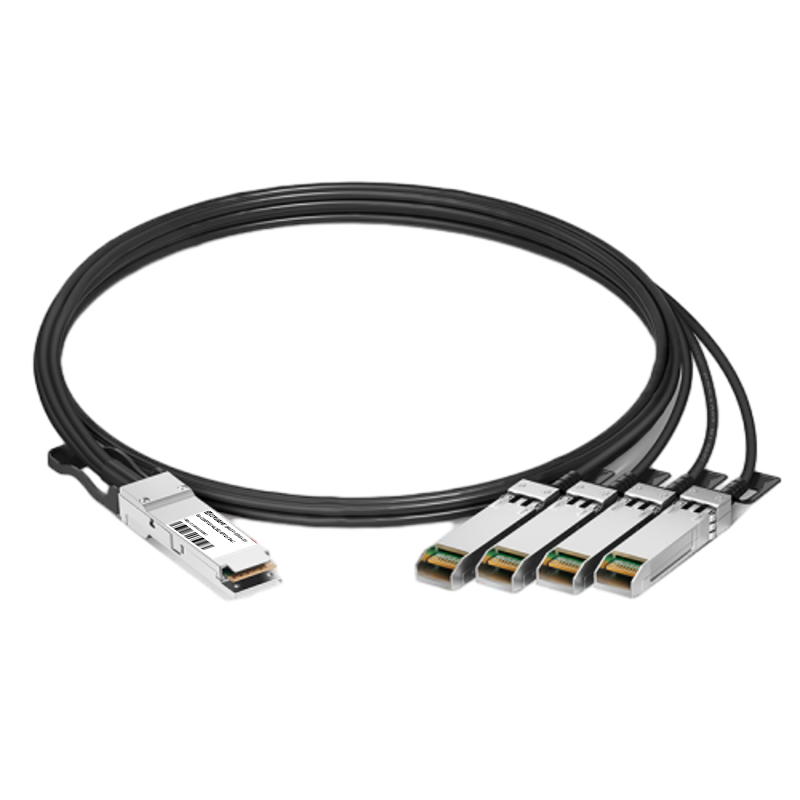

100G QSFP28 to 4x25G SFP28 Passive Breakout DAC, 1m (3ft)
