MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.20dB Max, Type B, Double Jacket, Aqua
P/N: UF12FMTPOM3B
US$211.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

US Conec MTP® Connector with Optimal 0.20dB Low IL
Corning ClearCurve® Multimode Fiber with 7.5mm Min. Bend Radius
2.0mm Small-diameter Breakout Saves Space for High-density Cabling
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded Connector Boots for Easy Identification
For Longer Distances in Cabinet-to-Cabinet Applications
See more
Specifications
Q&A
Reviews
Resources
MTP® Jumper, MTP®-12 UPC (Female) to MTP®-12 UPC (Female), 12 Fibers, Multimode (OM3), Plenum (OFNP), 0.20dB Max, Type B, Double Jacket, Aqua
MTP® jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Specifications
Connector A
MTP® Elite Female (Pinless)
Connector B
MTP® Elite Female (Pinless)
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
Minimum Bend Radius
7.5mm
Polish Type
UPC to UPC
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Cable Structure
Double Jacket
Fiber Count
12 Fibers
Breakout Length
0.5m
Cable Outside Diameter (OD)
3.6-4.5mm
Breakout Outside Diameter (OD)
2.0mm
Insertion Loss
0.20dB Max
Return Loss
≥20dB
Attenuation at 850nm
≤3.5dB/km
Attenuation at 1300nm
≤1.5dB/km
Long-term Tensile Load
100N
Short-term Tensile Load
300N
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-10 to +70°C (14 to 158℉)
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
800G OSFP Finned Top Passive DAC, 1m (3ft)
US$189.00
Arista Compatible 800G OSFP Finned Top OSFP 2x FR4 2km 1310nm Dual LC/UPC, Finned Top
US$11000.00
Huawei Compatible 25GBASE-SR SFP28 25G 850nm 100m Duplex LC/UPC MMF Transceiver Module
US$135.00
NVIDIA/Mellanox Compatible 800G OSFP MMS4X50-NM 2x FR4 2km 1310nm Dual Duplex LC/UPC, Finned Top
US$11000.00
Chelsio Compatible 100GBASE-LR4 QSFP28 100G 1310nm 10km Duplex LC/UPC Module SMF Transceiver Module
US$1000.00
Ciena Compatible 10GBASE-SR SFP+ 10G 850nm 300m Duplex LC/UPC MMF Transceiver Module
US$59.00
MTP-12 to MTP-12 UPC Jumper, Female, 12 Fibers, OM3, Type B
US$211.00

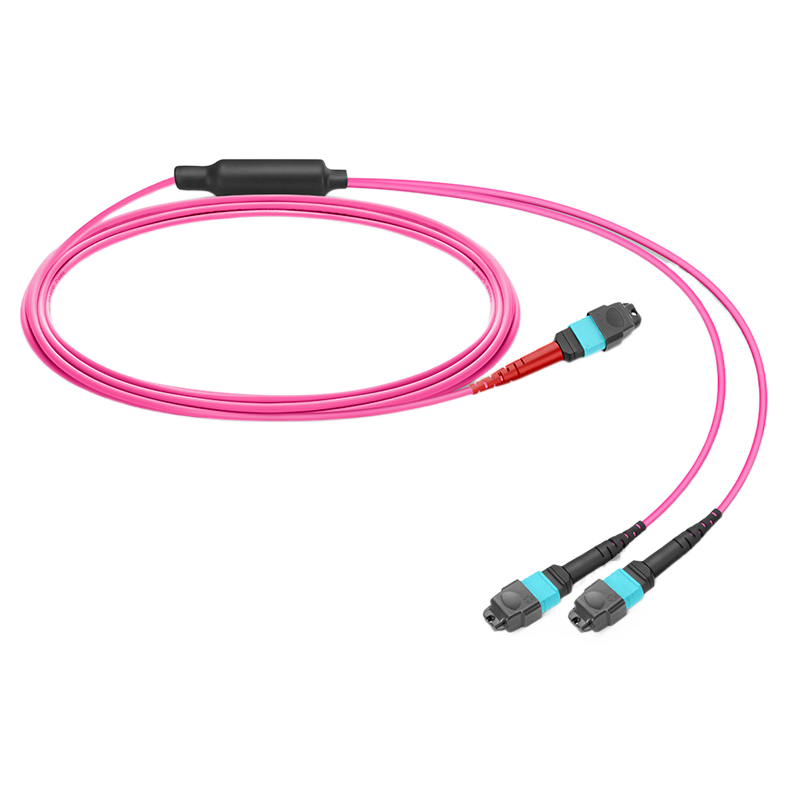

MTP-24 to 2 x MTP-12 UPC Breakout Cable, Female, 24 Fibers, OM4, Type A
