MTP® Jumper, MTP®-12 APC (Male) to MTP®-12 APC (Male), 12 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B, Double Jacket, Yellow
P/N: AM12FMTPOS2B
US$224.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

MTP® Connector with Optimal 0.35dB Low IL
2.0mm Small-diameter Breakout Saves Space for High-density Cabling
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded Connector Boots for Easy Identification
For Longer Distances in Cabinet-to-Cabinet Applications
Specifications
Q&A
Reviews
Resources
MTP® Jumper, MTP®-12 APC (Male) to MTP®-12 APC (Male), 12 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type B, Double Jacket, Yellow
MTP® jumpers, allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Specifications
Connector A
MTP® Elite Male (Pinless)
Connector B
MTP® Elite Male (Pinless)
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Minimum Bend Radius
10mm
Polish Type
APC to APC
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Cable Structure
Double Jacket
Fiber Count
12 Fibers
Breakout Length
0.5m
Cable Outside Diameter (OD)
3.6-4.5mm
Breakout Outside Diameter (OD)
2.0mm
Insertion Loss
0.35dB Max (0.15dB Typ.)
Return Loss
≥65dB
Attenuation at 1310nm
≤0.4dB/km
Attenuation at 1550nm
≤0.3dB/km
Long-term Tensile Load
100N
Short-term Tensile Load
300N
Operating Temperature
-10 to 60°C (14 to 140°F)
Storage Temperature
-10 to +70°C (14 to 158℉)
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
Intel Compatible 25GBASE-SR SFP28 25G 850nm 100m Duplex LC/UPC MMF Transceiver Module
US$135.00
MTP-12 to MTP-12 APC Jumper, Female, 12 Fibers, OS2, Type A
US$174.00
Extreme Compatible 100GBASE-SR4 QSFP28 850nm 100m MPO-12/UPC MMF Transceiver Module
US$210.00

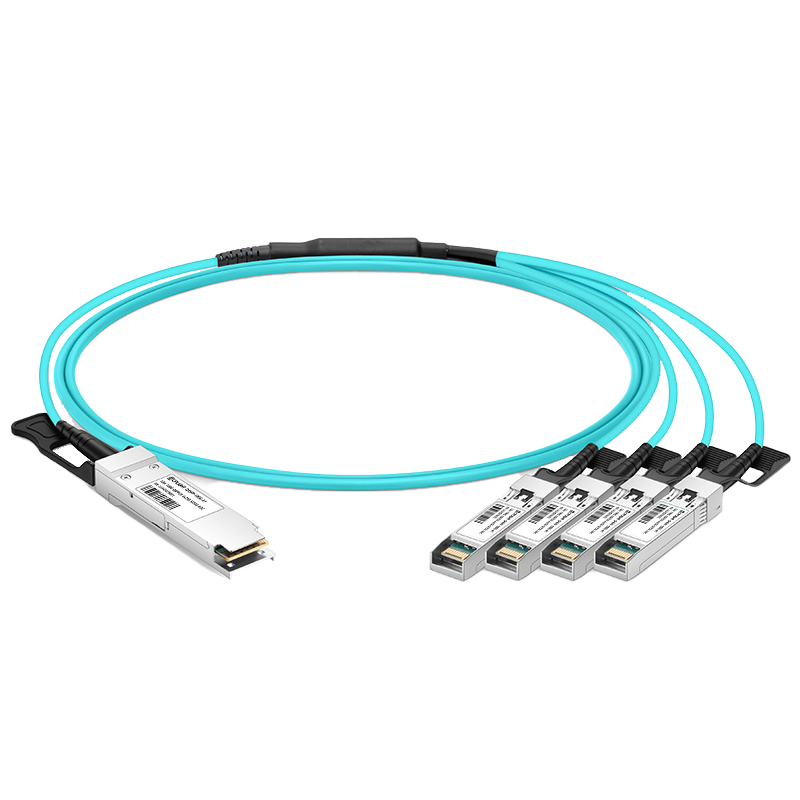

100G QSFP28 Breakout AOC
