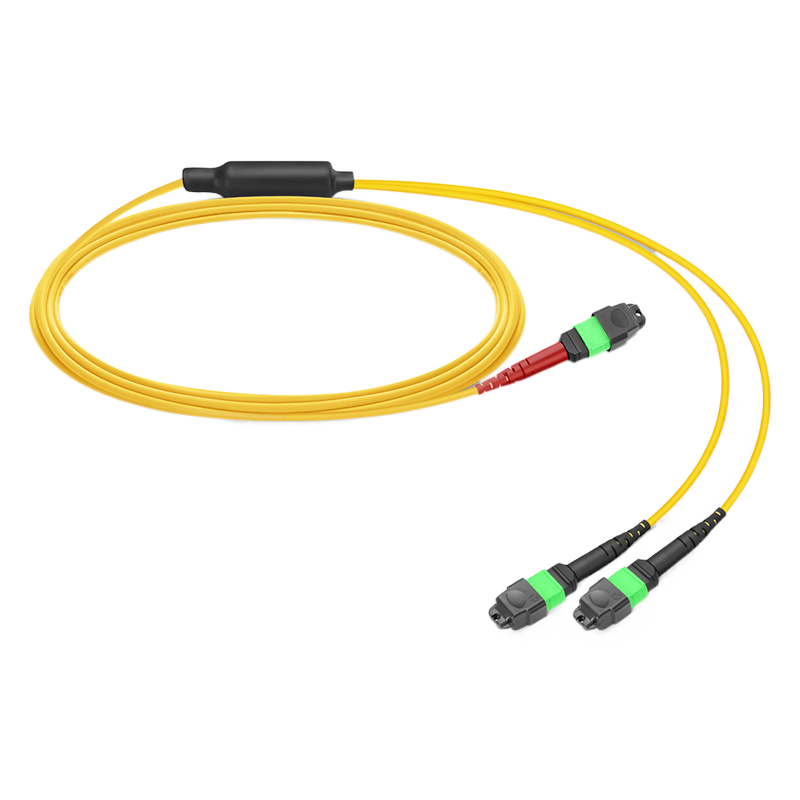

MTP® Breakout Cable, MTP®-24 APC (Female) to 2 x MTP®-12 APC (Female), 24 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type A, Yellow
P/N: AF24FMTPOS2A
US$230.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

MTP® Connector with Optimal 0.35dB Low IL
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded Connector Boots for Easy Identification
Convert from 24 to 12 Fibers for 100% Fiber Utilizations
Specifications
Q&A
Reviews
Resources
MTP® Breakout Cable, MTP®-24 APC (Female) to 2 x MTP®-12 APC (Female), 24 Fibers, Single Mode (OS2), Plenum (OFNP), 0.35dB Max, Type A, Yellow
MTP® Breakout cable is designed to provide a more flexible multi-fiber cabling system based on MTP® products. Unlike MTP® harness cable, MTP® Breakout cables are terminated with MTP® connectors on both ends and can provide more possibilities for the existing 24-fiber cabling system. The 40/100G MTP® Breakout cables eliminate the wasted fibers in current 40G transmission and upcoming 100G transmission. Compared to purchase and install separate Breakout cassettes, using MTP® Breakout cables is a more cost-effective and lower-loss option.
Specifications
Fiber Connector
MTP®
Gender
Female
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Polish Type
APC to APC
Insertion Loss
0.35dB Max (0.15dB Typ.)
Return Loss
≥60dB
Attenuation at 1310nm
≤0.32dB/km
Attenuation at 1550nm
≤0.18dB/km
Cable Jacket
Plenum (OFNP)
Minimum Bend Radius
10mm
Cable Outside Diameter (OD)
3.0mm
Breakout Length
0.5m
Installation Tensile Load
66N
Tensile Strength
80/240N (Long/Short Term)
Operating Temperature
-10 to 60°C (14 to 140℉)
Storage Temperature
-10 to 70°C (14 to 158℉)
Certification
Features
