3m (10ft) Arista Compatible 400G QSFP-DD to 2 x 200G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable
3m (10ft) Arista Compatible 400G QSFP-DD to 2 x 200G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable
3m (10ft) Arista Compatible 400G QSFP-DD to 2 x 200G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable
P/N: Q2Q56-400G-CU
US$139.00
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 0.1W Per End, and Has Near Zero-latency Delays
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Simplifies Patching and Offers a Cost-effective Way for Short Links
Supports 400G to 2x 200G Ethernet Interoperability
Hot Pluggable QSFP-DD and QSFP56 MSA Compliant
Minimum Bend Radius 33.5mm for Flexible Routing
8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
Low Insertion Loss and Ultra-low Crosstalk for Improved Performance
See more
Specifications
Q&A
Reviews
Resources
3m (10ft) Arista Compatible 400G QSFP-DD to 2 x 200G QSFP56 Ethernet Passive Direct Attach Copper Breakout Cable

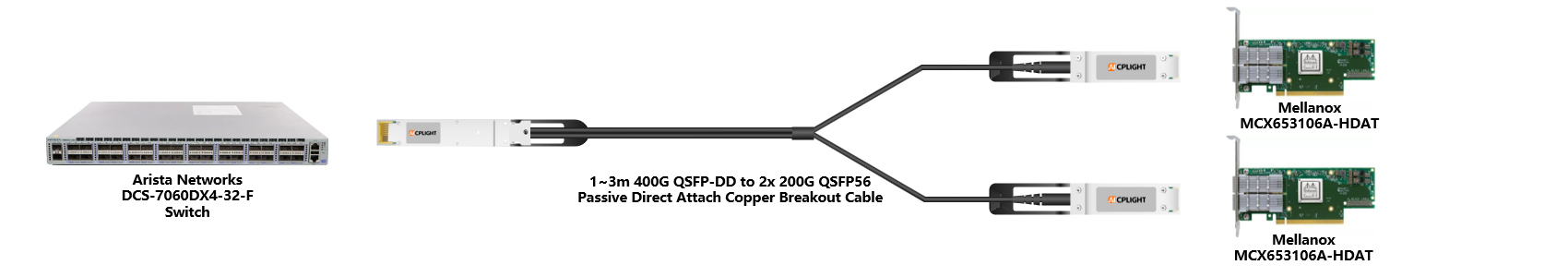

The 400G QSFP-DD to 2x 200G QSFP56 cable assembly is designed to meet the high density requirements of standard and combo connector configurations. QSFP-DD pluggable solutions enable 400G transmission. It is fully compliant with SFF-8679, QSFP-DD MSA, IEEE802.3bj, and IEEE802.3cd standards. QSFP-DD to 2x QSFP56 cable assemblies are high performance, high bandwidth and cost effective interconnect solutions that support 400G standard applications with different data rates. AICPLIGHT currently offers 400G QSFP-DD to 2x 200G QSFP56 DAC in lengths of 0.5, 1, 1.5, 2, 2.5, and 3 meters, ideal for SDN, ML, and Cloud Computing.
Specifications
Part Number
Q2Q56-400G-CU
Vendor Name
CPLIGHT
Form Factor
QSFP-DD to 2x QSFP56
Max Data Rate
400Gbps
Media
Copper
Cable Type
Passive Twinax
Cable Length
3m (10ft)
Wire AWG
30AWG
Minimum Bend Radius
33.5mm
Power Consumption
≤0.1W
Jacket Material
PVC (OFNR)
Temperature
0 to 70°C (32 to 158°F)
Modulation Technology
PAM4
Application
400G Ethernet
Protocols
IEEE802.3Bj, By, IEEE802.3CD, SFF-8679, SFF-8636
Warranty
5 Years
