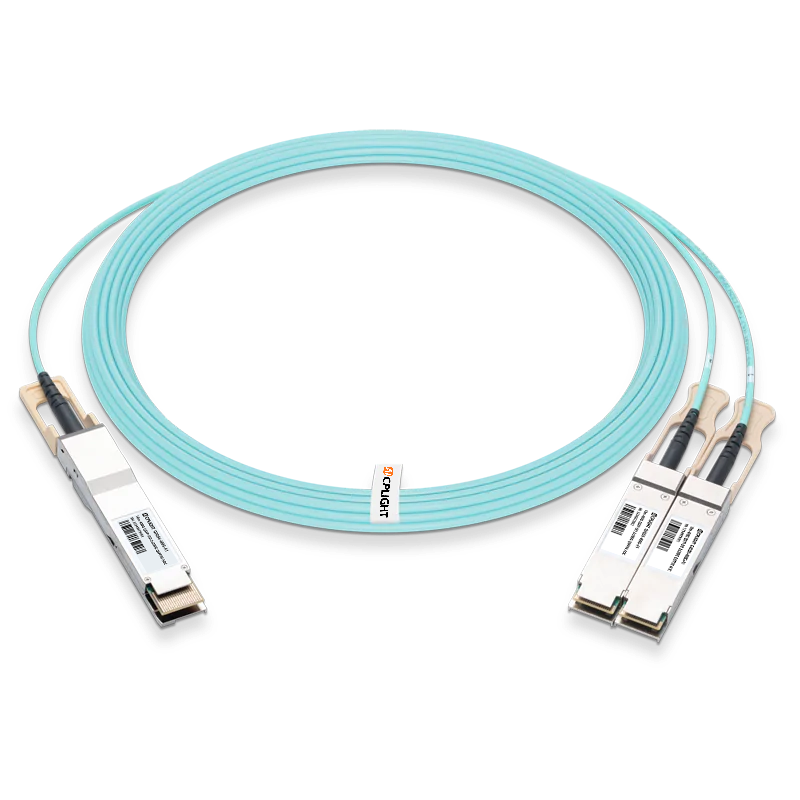

1m (3ft) NVIDIA (InfiniBand) Compatible 400G QSFP-DD to 2 x 200G QSFP56 Ethernet Active Optical Breakout Cable
P/N: Q2Q56-400G-A
US$1249.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Inphi Chip, COB Packaging
Low Power Consumption <4W (200G Per End), 8W (400G Per End)
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Increased Reliability-VCSEL, No MPO Connectors, Low BER
PAM4 Modulation, Supports 400G to 2x 200G Ethernet Interoperability
Thin and Light Weight Fiber with High Air Flow for Flexible Routing
OFNP-Rated, Hot Pluggable QSFP-DD and QSFP56 MSA Compliant
See more
Specifications
Q&A
Reviews
Resources
1m (3ft) NVIDIA (InfiniBand) Compatible 400G QSFP-DD to 2 x 200G QSFP56 Ethernet Active Optical Breakout Cable
The 400G QSFP-DD to 2x 200G NVIDIA (InfiniBand) QSFP56 breakout active optical cables operate over multi-mode fibers (MMF). This breakout cable is compliant with IEEE 802.3, QSFP-DD MSA, SFF-8024, SFF-8679, SFF-8665, OIF-CEI-04.0, and CMIS 4.0. Thin and lightweight AOC cables simplify cable management, enabling an efficient system airflow, which is critical in high-density racks. It is used extensively in cloud and supercomputers due to its low cost, high-value proposition, and increased reliability.
Specifications
Part Number
Q2Q56-400G-A
Vendor Name
CPLIGHT
Form Factor
QSFP-DD to 2x QSFP56
Max Data Rate
425Gbps(8x53.125Gb/s)
Media
Copper
Cable Type
OM3
Cable Length
1m (3ft)
Wire AWG
30AWG
Minimum Bend Radius
30mm
Transmitter Type
VSCEL
Receiver Type
PIN
Wavelength
850nm
Power Consumption
≤8W
Jacket Material
PVC (OFNR)
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Modulation Format
8x 50G-PAM4 to Dual 4x 50G-PAM4
Temperature
0 to 70°C (32 to 158°F)
DDM/DOM
Supported
FEC Function
RS-FEC
Protocols
IEEE 802.3cd, IEEE 802.3bs, QSFP-DD MSA, SFF-8024, SFF-8679, SFF-8665, CMIS 4.0, OIF-CEI-04.0
Warranty
5 Years
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line

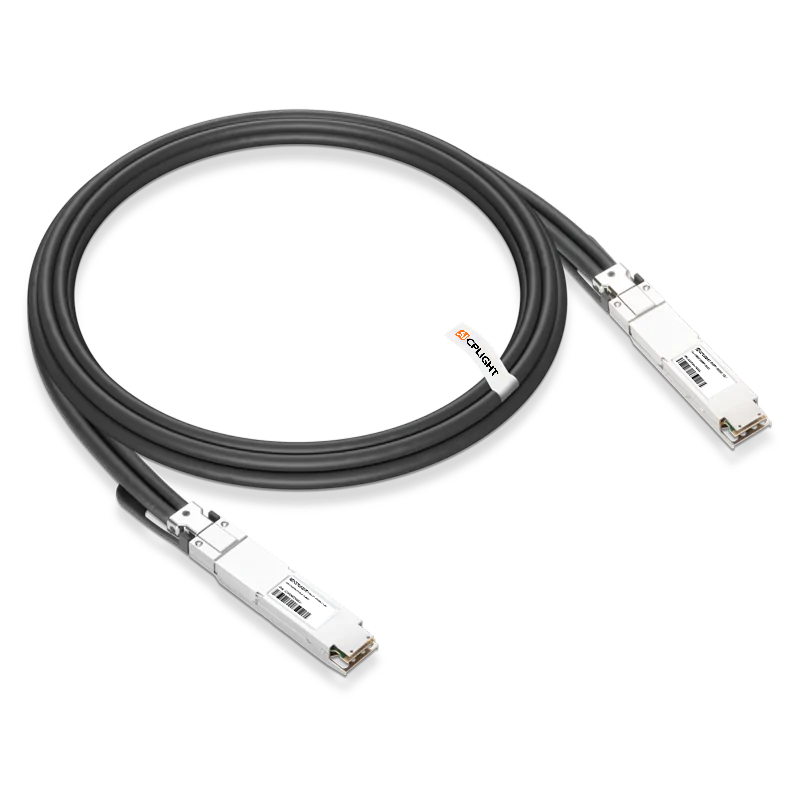

800G OSFP Finned Top Passive DAC, 1m (3ft)
US$189.00

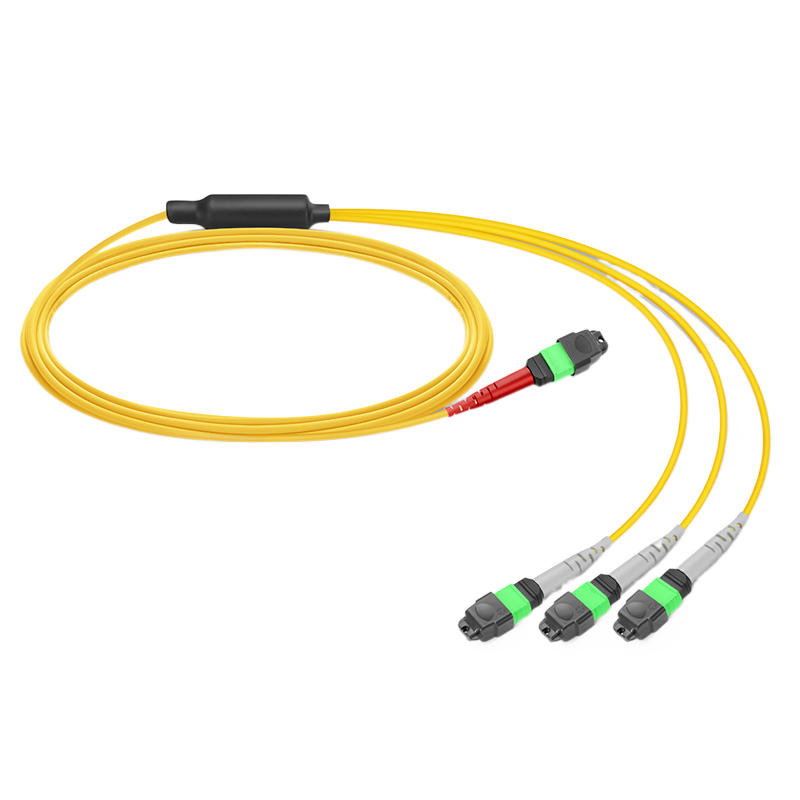

MTP-24 to 3 x MTP-8 APC Breakout Cable, Female, 24 Fibers, OS2, Type B
US$279.00

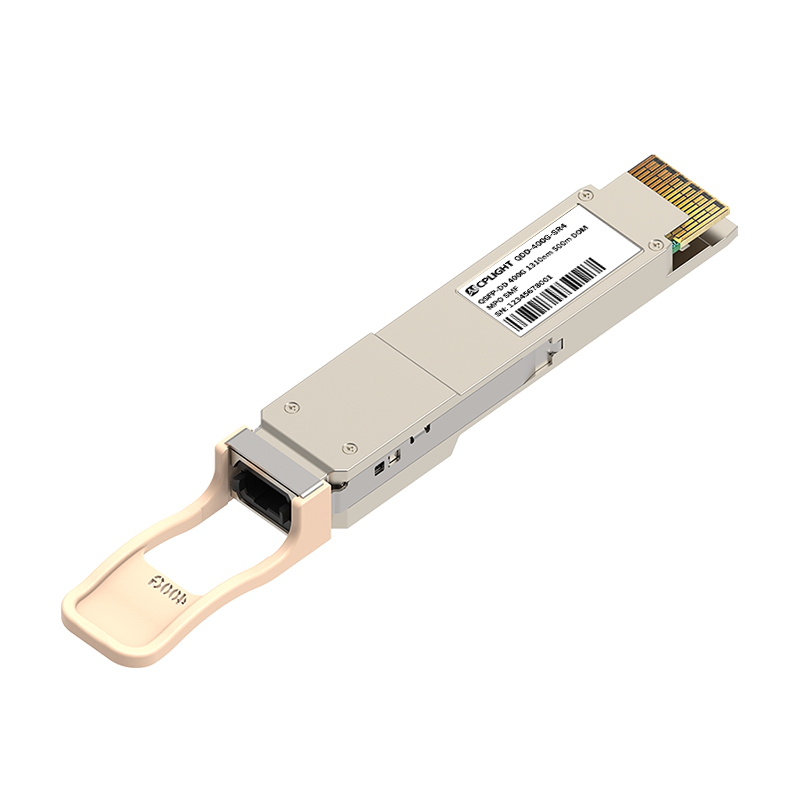

Juniper Compatible 400G QSFP-DD QDD-400G-SR8-S SR8 100m 850nm MPO-16/APC MMF Transceiver Module
US$1300.00

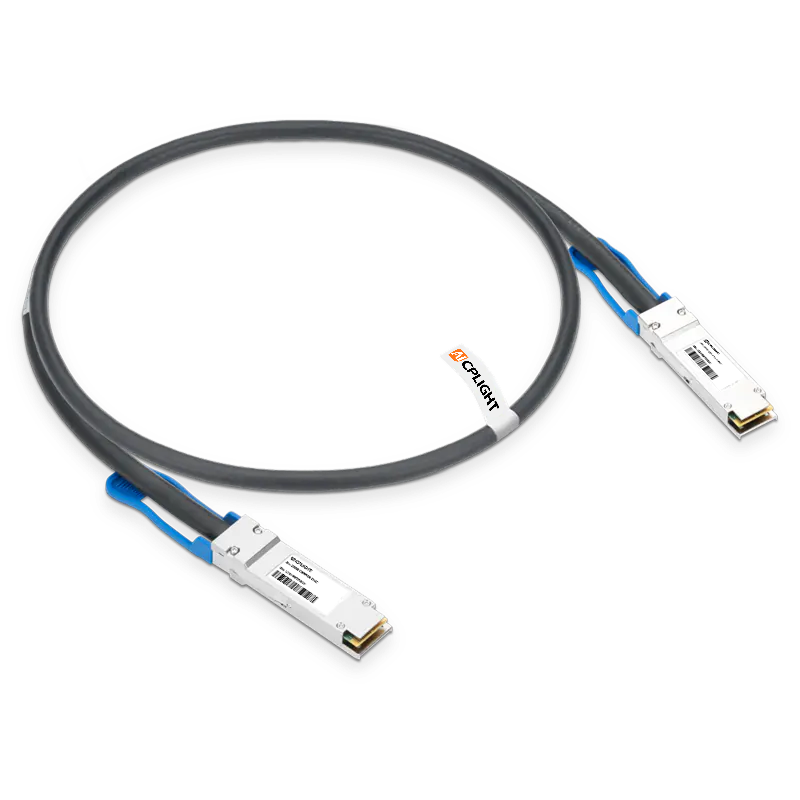

200G QSFP56 Passive DAC, 1m (3ft), NVIDIA (InfiniBand)
US$81.00

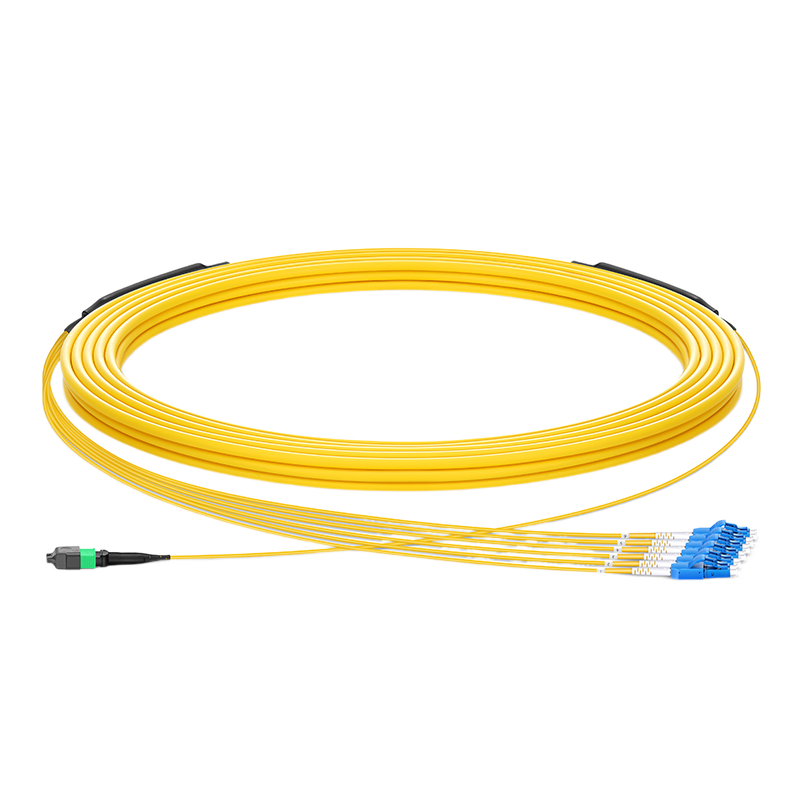

MTP-12 APC to LC UPC Harness, Female, 12 Fibers, OS2, Type B
US$186.00

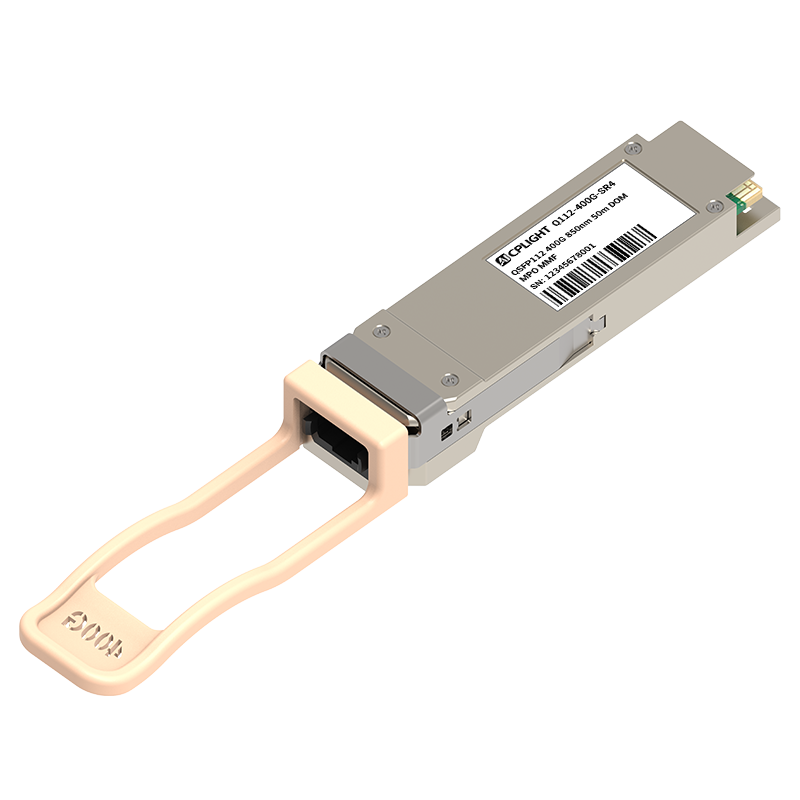

H3C Compatible 400G QSFP112 SR4 50m 850nm MPO-12/APC Transceiver Module
US$2900.00
Generic Compatible 800G OSFP OSFP-800G-2xR4 2x SR4/SR8 50m 850nm Dual MPO-12/APC, Finned Top
US$6000.00

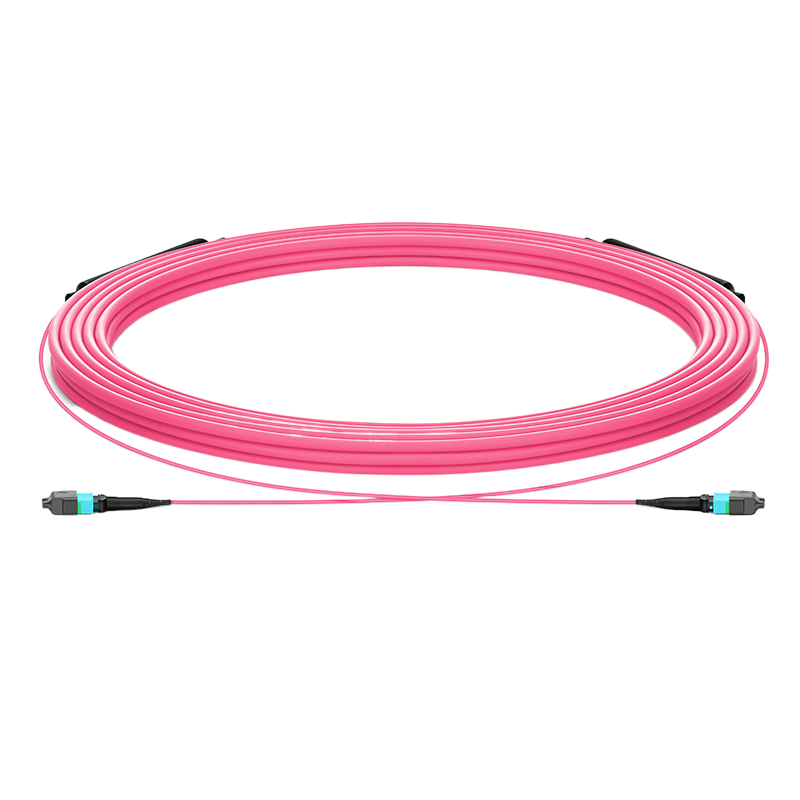

MTP-12 to MTP-12 UPC Jumper, Male, 12 Fibers, OM4, Type A
US$311.00

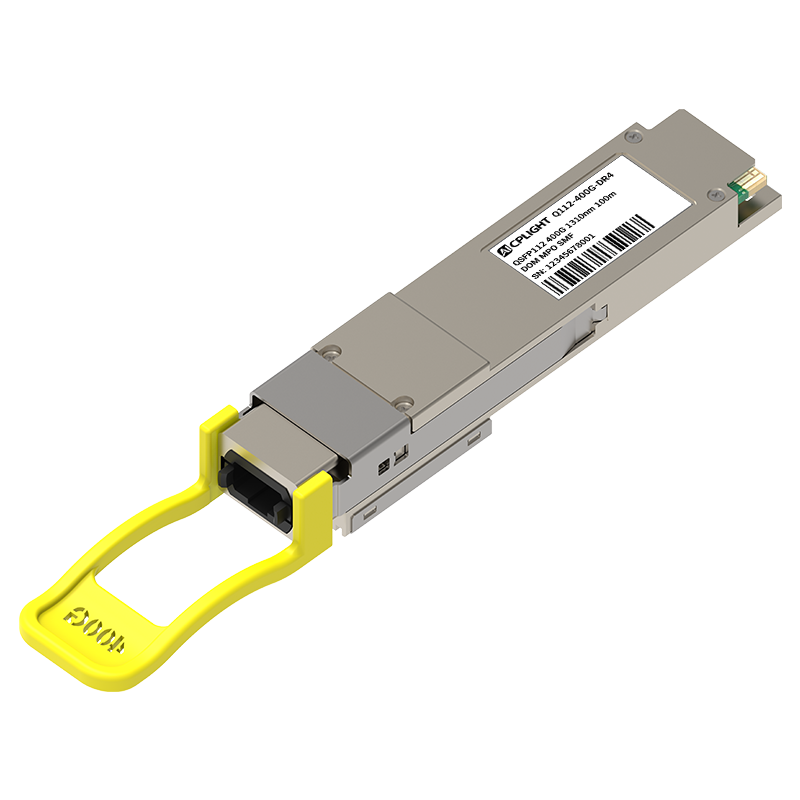

H3C Compatible 400G QSFP112 DR4 500m 1310nm MPO-12/APC Transceiver Module
