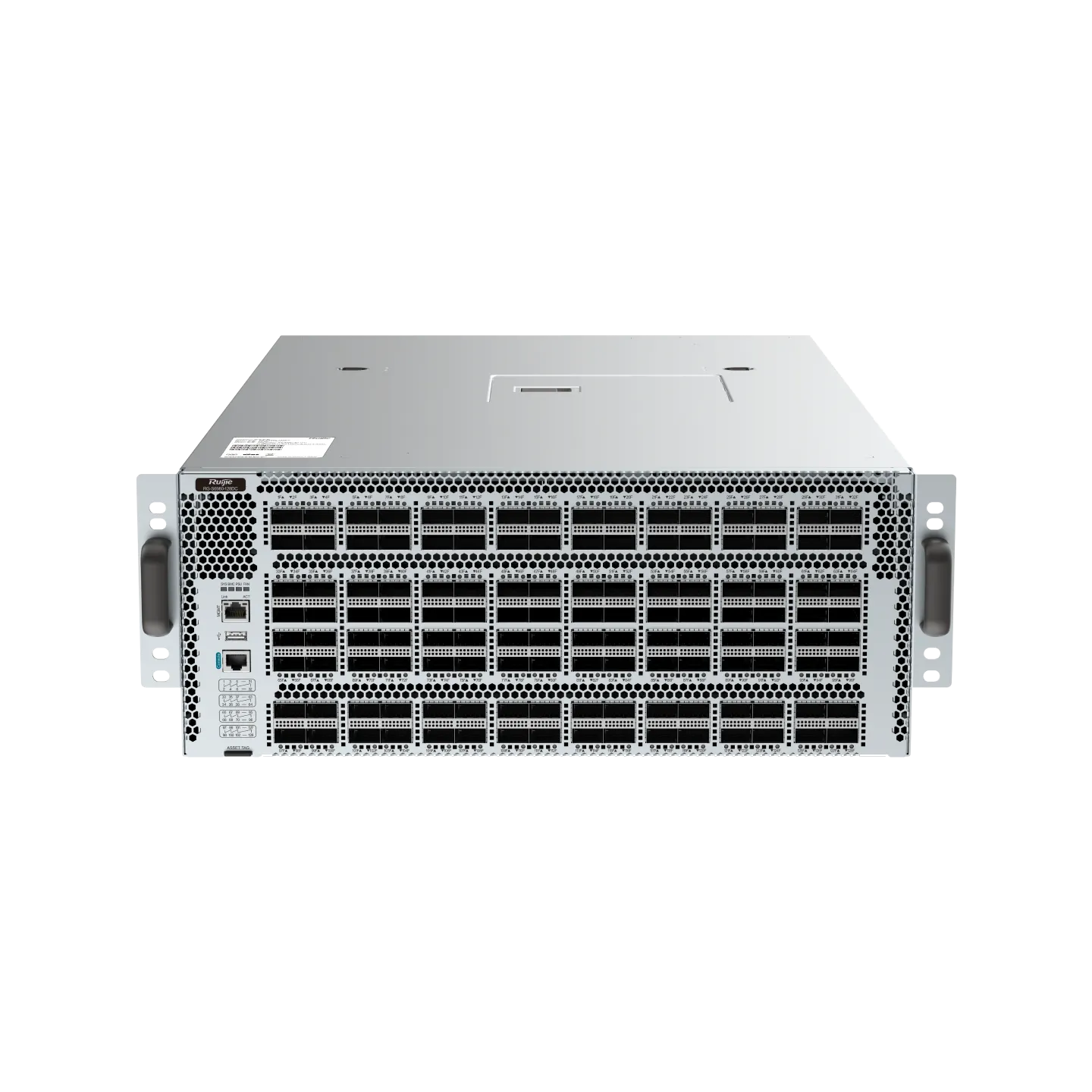

RG-S6990-128QC2XS, 128-Port 400GE, Fixed Switch for AIGC Intelligent Computing Networks
RG-S6990-128QC2XS, 128-Port 400GE, Fixed Switch for AIGC Intelligent Computing Networks
RG-S6990-128QC2XS, 128-Port 400GE, Fixed Switch for AIGC Intelligent Computing Networks
P/N: RG-S6990-128QC2XS
US$1000.00
2
Reviews
2
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1000 In Stock）

Product Highlights

High-density 400GE switch with 128 x 200GE/400GE QSFP112 ports housed in a 4-RU enclosure
Eliminating packet loss during E2E communication through RDMA, building high-performance and low-latency data center networks
Hardware-level redundancy, ensuring service continuity and preventing network downtime
Nanosecond-level hardware failover, mitigating the impact of network faults on services and securing network stability
AI-powered intelligent O&M, making management easy and efficient
Specifications
Q&A
Reviews
Resources
RG-S6990-128QC2XS, 128-Port 400GE, Fixed Switch for AIGC Intelligent Computing Networks
128 x 400GE ports and 2 x 10GE ports, RDLB and GDLB of the AI-Fabric solution to improve the bandwidth and shorten the AI training time in AIGC intelligent computing scenarios
Specifications
Switching capacity
102.4 Tbps
Packet forwarding rate
21,000 Mpps
Service port
128 x 200GE/400GE QSFP112 ports; 2 x 1GE/10GE SFP+ ports
Management port
1 x RJ45 console port; 1 x RJ45 MGMT port
USB port
1 x USB 2.0 port (Type A connector)
Slot
Four power module slots; Five fan module slots
Dimensions (W x D x H)
446 mm x 800 mm x 173.6 mm (17.56 in. x 31.5 in. x 6.84 in.)
Height
4 RU
Weight
Chassis only: 36.15 kg (79.7 lbs) Fully system: 43 kg (94.8 lbs)
Mounting option
Rack-mount
Power consumption
Max: 3180 W; Typical: 2339 W; Static: 434 W
Power input
AC input; 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50/60 Hz; HVDC input; 240 V DC
Layer 2 protocols
IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB)
Layer 3 protocols (IPv4)
BGP4, OSPFv2, RIPv1, RIPv2, LPM Routing, Policy-based Routing, Route-policy, ECMP, WCMP, VRRP
Basic IPv6 protocols
Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, IPv6 TCP/UDP, SNMPv6, IPv6 Ping/Traceroute, IPv6 RADIUS, IPv6 Telnet/SSH, IPv6 FTP/TFTP, NTPv6, IPv6 MIB for SNMP, IPv6 VRRP, IPv6 QoS
IPv6 features
Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+
Data center features
VXLAN*, BGP-EVPN; RDMA; PFC, ECN; PFC deadlock prevention; AI-powered ECN*; ECN overlay*; RDLB, GDLB
Visualization
Telemetry sFlow
High redundancy design
GR for RIP/OSPF/BGP, BFD, DLDP, REUP, Rapid Link Detection Protocol (RLDP), 2 + 2 power redundancy, fan redundancy, and hot swapping of line cards and power modules
Management mode
SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, Syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, temperature alarm
Other protocols
DHCP Client, DHCP Relay, DHCP Server, DNS Client, ARP Proxy, and Syslog
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Questions & Answers
edit icon Ask a question
All (2) Performance (1)Function (1)
Q:

Are data center switches hard to manage in large deployments?

by q***m on 2025-07-21 16:31:48

A:

Not at all. Most offer centralized SDN management, API support, telemetry, and integration with platforms like Ansible, making large-scale deployments manageable and efficient.

by CPLIGHT on 2025-07-21 16:42:16

like icon Helpful 0
comment icon Comment 0
Q:

How much bandwidth can a typical data center switch handle?

by f***m on 2025-07-21 15:15:42

A:

Modern data center switches support up to 100G, 200G, and even 400G per port, with total backplane bandwidth in the Tbps range to ensure full-speed packet forwarding.

by Helpful on 2025-07-21 16:41:19

like icon Helpful 0
comment icon Comment 0
Customer Reviews
edit icon Write a review
All (2) Reliability (1)Scalability (1)
w
w***m
2025-06-14 03:13:50
Confirmed Purchase
5.0

The modular design allowed us to scale from 32 to 96 ports without any service interruption. Ideal for fast-growing cloud environments like ours.

link icon Helpful 0
comment icon Comment 0
e
e***m
2025-05-23 21:41:28
Confirmed Purchase
5.0

These switches have been running flawlessly under heavy workloads for over 18 months without a single hardware failure. They’re absolutely data center-grade.

link icon Helpful 0
comment icon Comment 0
