RG-S5310-48SFP4XS-E, 48-Port GE Optical Layer 3 Managed Access Switch
P/N: RG-S5310-48SFP4XS-E
US$1000.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

VSU virtualization,flexible networking and high performance
QoS policy to achieve flexible allocation of network resources
Network security policies and real-time monitoring, delivering enhanced network robustness
Multiple management modes, simplified and easy network maintenance
Specifications
Q&A
Reviews
Resources
RG-S5310-48SFP4XS-E, 48-Port GE Optical Layer 3 Managed Access Switch
Full Gigabit Ethernet Access Switch for Large-sized Networks
Specifications
Port specifications
RG-S5310-48SFP4XS-E
Fixed service port
48 x 1GE SPF ports ；4 x 1GE/10GE SFP+ ports
Fixed management port
1 x RJ45 console port ；1 x RJ45 MGMT port
Module slot
2 x power module slots
System switching capacity
211 Gbps
System packet forwarding rate
158 Mpps
Maximum power consumption
108 W
Unit dimensions (W x D x H)
442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)
Flash Memory
2GB
Operating temperature
0°C to 45°C (32°F to 113°F)
Warranty duration
3 years
Power module
RG-PA150IB-F； RG-PD150IB-F
USB
1 x USB 2.0 port
CPU
Dual-core CPU, each core with the clock speed of 1.2 GHz
Real-time clock (RTC)
Supported
BootROM
16 MB
Flash memory
2 GB
Memory
1 GB
Switch buffer
3 MB
Number of MAC addresses
32,000
ARP table size
4,000/16,000 (authorized)
ND table size
2,000/8,000 (authorized)
Number of IPv4 unicast routes
8,000/12,000 (authorized)
Number of IPv4 multicast routes
2,500
Number of IPv6 unicast routes
4,000
Number of IPv6 multicast routes
1,200
Number of ACEs
Ingress: 3,500 ； Egress: 1,500
Number of IGMP groups
2,500
Number of MLD groups
1,000
Number of VSU members
4
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
RG-S5000-24GT4MS-E 24-Port Gigabit Layer 2+ Managed Switch with Four 2.5GE Uplink SFP Ports
US$1000.00
RG-S5750C-28GT4XS-H, Enterprise-Class Core/Aggregation Switch, 28 x GE Electrical Ports, Two Expansion Slots, 10GE Uplink
US$1000.00
RG-S5760C-48GT4XS-X 48-Port Layer 3 Enterprise-Class Core or Aggregation Switch, 4-Port 10GE Uplink
US$1000.00
RG-S5760C-48SFP4XS-X 48-Port Layer 3 Enterprise-Class Core or Aggregation Switch, 4-Port 10GE Uplink
US$1000.00
RG-S5760C-24SFP/8GT8XS-X 24-Port Layer 3 Enterprise-Class Core or Aggregation Switch (with Eight Combo Ports), 8-Port 10GE Uplink
US$1000.00
E1000-5P, 5 x 1Gb RJ45, L2 Unmanaged Switch
US$40.00
E1000-8P, 8 x 1Gb RJ45, L2 Unmanaged Switch
US$60.00
RG-S6110-48MG4VS2QXS-UP 48-Port 5GE Managed Multi-GE Access Switches with 40GE uplink Ports
US$1000.00

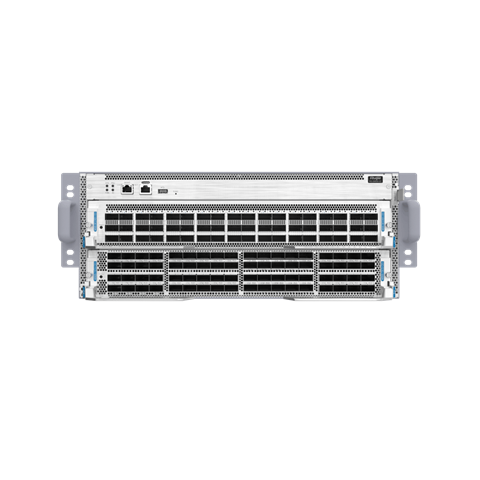

RG-S6930-2C – Next-Generation Data Center High-Density Centralized Modular Core Switch with 100GE/200GE Line Cards
