RG-S6980-128DC – 128-Port 200GE Data Center Fixed Core Switch
P/N: RG-S6980-128DC
US$1000.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

High-density 200GE switch with 128 x 200GE QSFP56 ports housed in a 4-RU enclosure
Hardware-level redundancy, ensuring service continuity and preventing network downtime
Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
Telemetry-based network monitoring and automated O&M, making management easy and efficient
Specifications
Q&A
Reviews
Resources
RG-S6980-128DC – 128-Port 200GE Data Center Fixed Core Switch
High-density 200GE fixed switch, support for 200GE optical transceivers
Specifications
Ports
128 x 200GE ports (QSFP56)
Expansion Module
Not supported
Power Modules
Four power module slots, supporting 2+2 redundancy
Fan Modules
Eight fan module slots, supporting 7+1 redundancy
Management Port
One management port, one console port, and one USB port, compliant with the USB2.0 standard
Switching Capacity
51.2 Tbps
Packet Forwarding Rate
10,300 Mpps
Dimensions (W × D × H)
442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in., 4 RU)
Net Weight
39.65 kg (87.41 lbs., including eight fan modules and four power modules)
Maximum Power Consumption
2,550 W
AC input
100 V AC to 127 V AC
High-Voltage DC
HVDC input: 240 V DC; Maximum rated input current: 6.5 A
Layer 2 Protocols
IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), jumbo frame (9 KB)
IPv4 Features
BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, PBR, routing policy, ECMP, WCMP, VRRP
IPv6 Features
Neighbor discovery, ICMPv6, path MTU discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMPv6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS, static routing, ECMP routing, PBR, OSPFv3, RIPng, BGP4+
Data Center Features
PFC, ECN; RDMA; VXLAN, BGP-EVPN; PFC deadlock prevention; * AI ECN; * ECN overlay; RALB, AILB
Visualization
Collecting data including basic switch information, real-time RoCE buffer state, interface-based QoS queue and real-time interface utilization, ECN and PFC events, and media side SNR* through telemetry; gRPC; sFlow
Hgh Availability Design
GR for RIP/OSPF/BGP, BFD, REUP, Rapid Link Detection Protocol (RLDP), 2+2 power redundancy, fan redundancy, and hot swappable line cards and power modules
Management Mode
SNMP v1/v2/v3, Telnet, console, MGMT, RMON, SSH v1/v2, FTP/TFTP, NTP, syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and overheat alarm
Other Protocols
DHCP client, DHCP relay, DHCP server, DNS client, proxy ARP, and syslog
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
RG-S5310-48SFP4XS-E, 48-Port GE Optical Layer 3 Managed Access Switch
US$1000.00

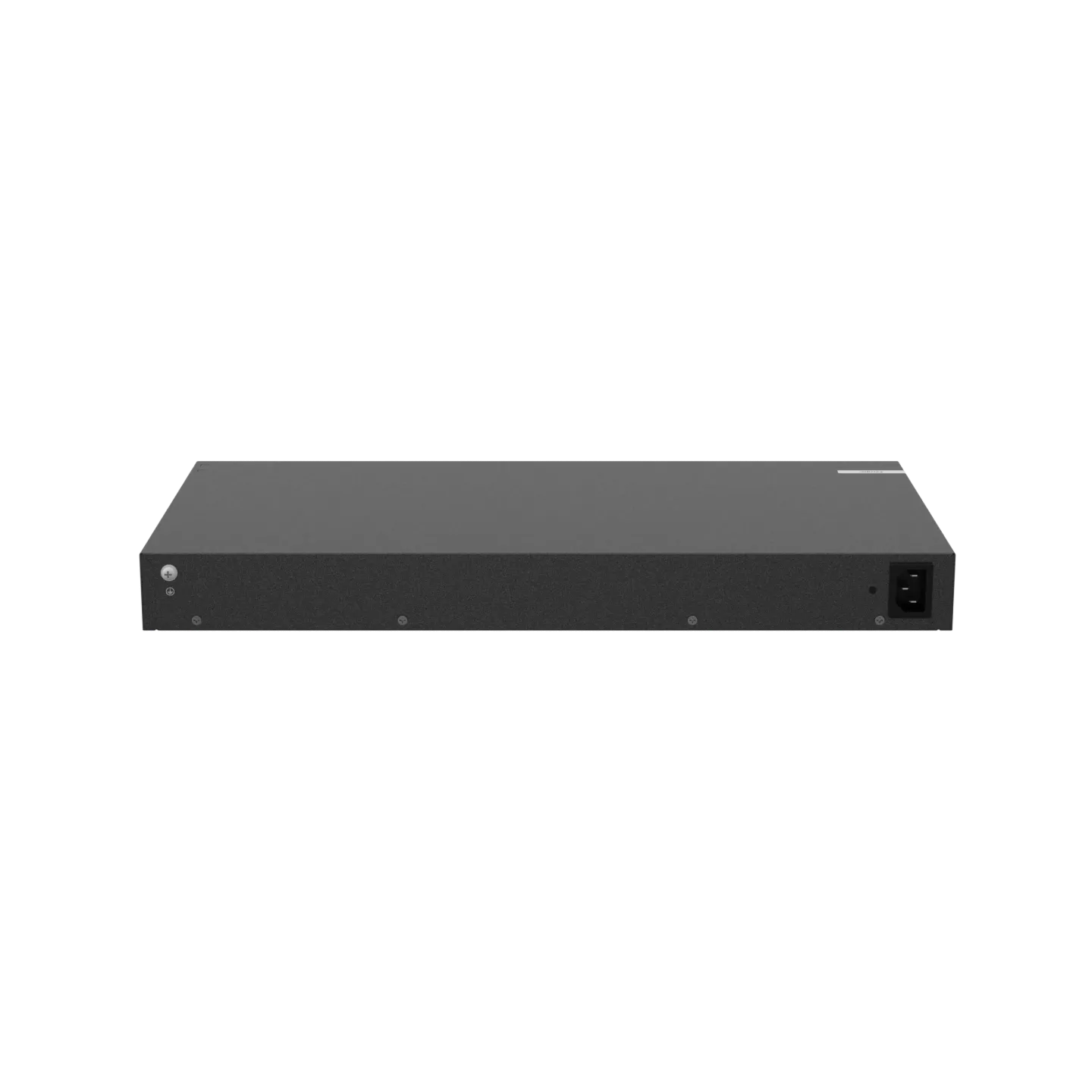

RG-S6110-24MG4VS-UP 24-Port 5GE Managed Multi-GE Access Switches with 25GE Uplink Ports
