RG-S5760C-48GT4XS-HP-X. 48-Port, Layer 3, Enterprise-Class PoE Core or Aggregation Switch, 4-Port 10G Uplink
RG-S5760C-48GT4XS-HP-X. 48-Port, Layer 3, Enterprise-Class PoE Core or Aggregation Switch, 4-Port 10G Uplink
RG-S5760C-48GT4XS-HP-X. 48-Port, Layer 3, Enterprise-Class PoE Core or Aggregation Switch, 4-Port 10G Uplink
P/N: RG-S5760C-48GT4XS-HP-X
US$1000.00
3
Reviews
2
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1000 In Stock）

Product Highlights

Rich port types, 48 x 10/100/1000BASE-T ports, PoE/PoE+ supported, and 4 x 1GE/10GE SFP+ ports for uplink
Hardware redundancy, guaranteed service continuity and network connectivity
VSU virtualization, flexible networking and high performance
Layer 3 routing control, adaptive to multiple services, efficient and guaranteed data transmission
Network security policies, real-time monitoring, CPP and NFPP, delivering enhanced network robustness
SNMP, RMON, Syslog, USB log backup features, CLI, Eweb, telnet and other management modes, simplified and easy network maintenance
See more
Specifications
Q&A
Reviews
Resources
RG-S5760C-48GT4XS-HP-X. 48-Port, Layer 3, Enterprise-Class PoE Core or Aggregation Switch, 4-Port 10G Uplink
Aggregation switch for large-sized networks, or core switch for small and medium-sized networks
Specifications
Port specifications
RG-S5760C-48GT4XS-HP-X
Fixed service port
48 x 10/100/1000BASE-T ports, supporting PoE/PoE+ 4 x 1GE/10GE SFP+ ports
Fixed management port
1 x RJ45 console port ;1 x RJ45 MGMT port
Fan
2 x pluggable fan modules
System switching capacity
787 Gbps
System packet forwarding rate
586 Mpps
Unit dimensions (W x D x H)
442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)
Operating temperature
0°C to 45°C (32°F to 113°F)
Warranty duration
3 years
Module slot
1 x expansion module slot ； 2 x power module slots； 2 x fan module slots
Expansion module
M5000X-4XS2CQ
Power module
RG-PA600I-P-F ； RG-PA1000I-P-F
Fan module
M2SFAN I-F (pre-installed 3)
USB
1 x USB 2.0 port
System packet forwarding rate *1
586 Mpps
System switching capacity *2
787 Gbps
CPU
Dual-core CPU, each core with the clock speed of 1.2 GHz
Real-time clock (RTC)
Supported
BootROM
16 MB (2 flash chips for 1+1 boot redundancy)
Flash memory
4 GB eMMC
Memory
2 GB
Switch buffer
4 MB
Power supply
2 x pluggable power modules
Maximum output power
RG-PA150IB-F: 150 W ;RG-PD150IB-F: 150 W
Maximum power consumption
105 W (excluding expansion modules) 125 W (including expansion modules)
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Questions & Answers
edit icon Ask a question
All (2) Performance (1)Scalability (1)
Q:

Are the switches easy to manage and monitor?

by B***m on 2025-07-18 16:22:22

A:

Yes. They typically offer centralized management options via SNMP, web GUI, CLI, or integration with network management systems for simplified monitoring and configuration.

by Helpful on 2025-07-18 16:54:48

like icon Helpful 0
comment icon Comment 0
Q:

Can campus switches support future network growth?

by d***m on 2025-07-18 15:29:04

A:

Yes, many campus switches support stacking, modular expansion, and flexible port configurations to accommodate network growth and evolving bandwidth needs.

by CPLIGHT on 2025-07-18 16:53:54

like icon Helpful 0
comment icon Comment 0
Customer Reviews
edit icon Write a review
All (3) Performance (1)Ease of Use (1)Security (1)
N
N***m
2025-07-04 20:47:20
Confirmed Purchase
5.0

The built-in access control and port security made it easy to enforce our internal policies without complex configurations.

link icon Helpful 0
comment icon Comment 0
1
1***m
2025-06-28 08:55:44
Confirmed Purchase
5.0

The management interface is clean and user-friendly. Even with minimal IT staff, we were able to deploy and manage everything smoothly.

link icon Helpful 0
comment icon Comment 0
S
S***m
2025-04-19 09:00:23
Confirmed Purchase
5.0

We noticed a major improvement in network performance after upgrading to campus-grade switches — seamless connectivity across departments.

link icon Helpful 0
comment icon Comment 0
Explore Our Extended Product Line
RG-S6930-2C, Next-Generation Data Center High-Density Centralized Modular Core Switch with 100GE/200GE Line Cards
RG-S6930-2C, Next-Generation Data Center High-Density Centralized Modular Core Switch with 100GE/200GE Line Cards
US$1000.00
RG-S6510-48VS8CQ 25GE Data Center Access Switch
RG-S6510-48VS8CQ 25GE Data Center Access Switch
US$1000.00
RG-S5760C-48GT4XS-X 48-Port Layer 3 Enterprise-Class Core or Aggregation Switch, 4-Port 10GE Uplink
RG-S5760C-48GT4XS-X 48-Port Layer 3 Enterprise-Class Core or Aggregation Switch, 4-Port 10GE Uplink
US$1000.00
RG-S5310-24GT4XS-E 24-Port GE Layer 3 Managed Access Switch, 4-Port 10GE Uplink
RG-S5310-24GT4XS-E 24-Port GE Layer 3 Managed Access Switch, 4-Port 10GE Uplink
US$1000.00

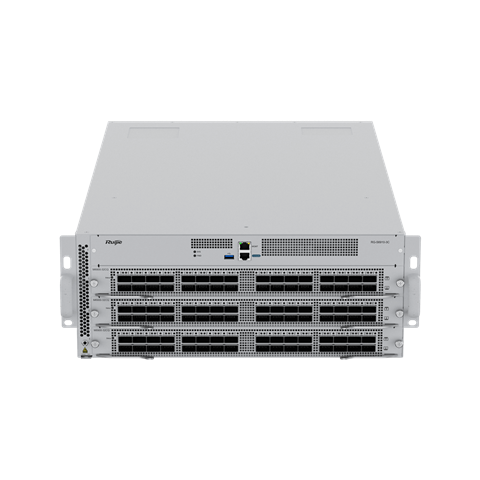

RG-S6910-3C, Data Center 100GE High-Density Modular Core Switch (Backward Compatible with 40GE) in the 4-RU Space
