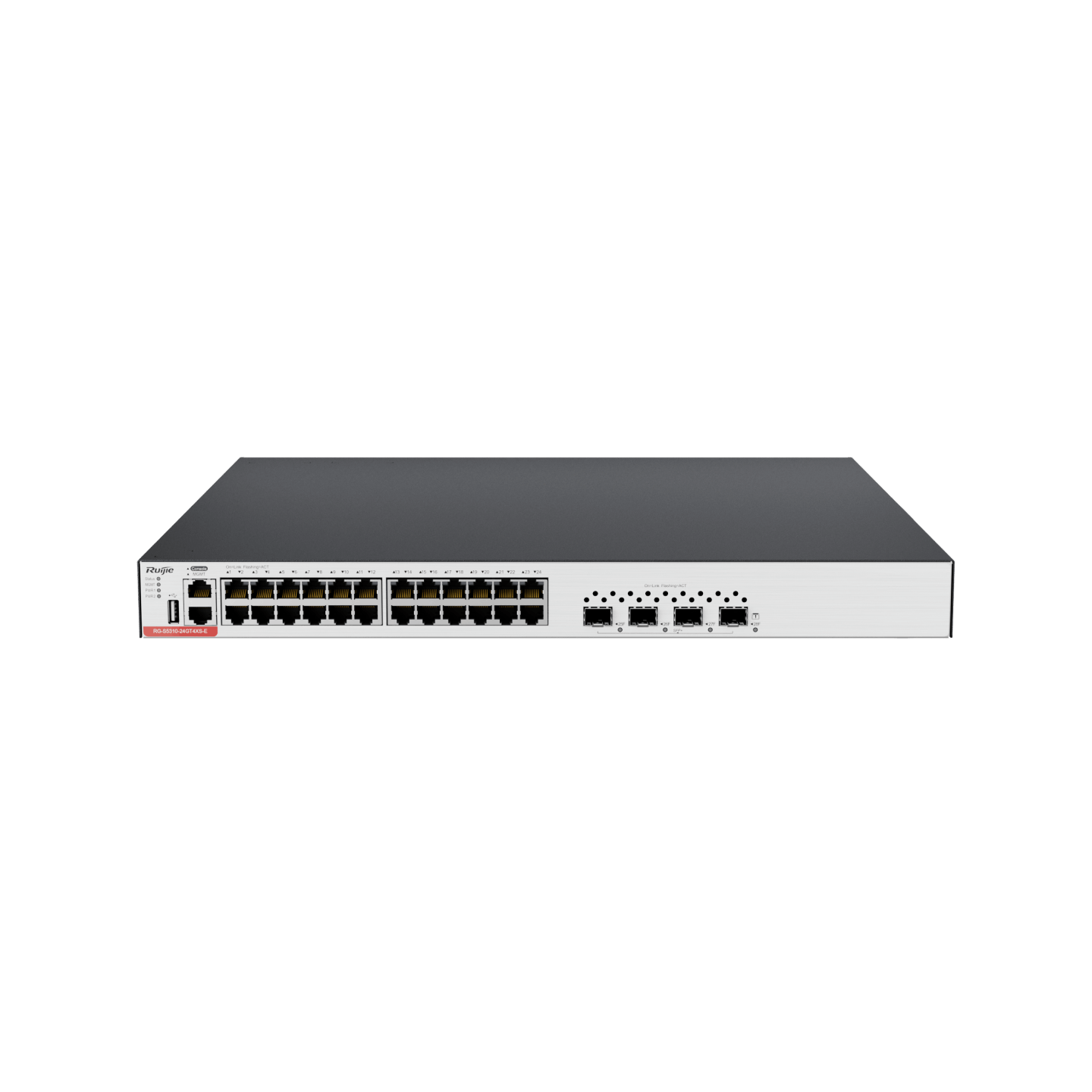

RG-S5310-24GT4XS-E 24-Port GE Layer 3 Managed Access Switch, 4-Port 10GE Uplink
US$1000.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Rich port types, 24 x 10/100/1000BASE-T ports for access, 4 x 1GE/10GE SFP+ ports for uplink
Hot-swappable dual power modules for 1+1 redundancy
VSU virtualization, flexible networking and high performance
Network security policies and real-time monitoring, delivering enhanced network robustness
Multiple management modes, simplified and easy network maintenance
See more
Specifications
Q&A
Reviews
Resources
RG-S5310-24GT4XS-E 24-Port GE Layer 3 Managed Access Switch, 4-Port 10GE Uplink
Full Gigabit Ethernet Access Switch for Large-sized Networks
Specifications
Port specifications
RG-S5310-24GT4XS-E
Fixed service port
24 x 10/100/1000BASE-T ports ；4 x 1GE/10GE SFP+ ports
Fixed management port
1 x RJ45 console port ；1 x RJ45 MGMT port
Module slot
2 x power module slots
System switching capacity
154 Gbps
System packet forwarding rate
115 Mpps
Maximum power consumption
40 W
Unit dimensions (W x D x H)
442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)
Flash Memory
2GB
Operating temperature
0°C to 45°C (32°F to 113°F)
Warranty duration
3 years
Power module
RG-PA150IB-F ； RG-PD150IB-F ； RG-PA70IB
USB
1 x USB 2.0 port
CPU
Dual-core CPU, each core with the clock speed of 1.2 GHz
Real-time clock (RTC)
Supported
BootROM
16 MB
Flash memory
2 GB
Memory
1 GB
Switch buffer
3 MB
Number of MAC addresses
32,000
ARP table size
4,000/16,000 (authorized)
ND table size
2,000/8,000 (authorized)
Number of IPv4 unicast routes
8,000/12,000 (authorized)
Number of IPv4 multicast routes
2,500
Number of IPv6 unicast routes
4,000
Number of IPv6 multicast routes
1,200
Number of ACEs
Ingress: 3,500 ； Egress: 1,500
Number of IGMP groups
2,500
Number of MLD groups
1,000
Number of VSU members
4
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line
RG-S5760C-48GT4XS-X 48-Port Layer 3 Enterprise-Class Core or Aggregation Switch, 4-Port 10GE Uplink
US$1000.00
RG-S5000-48GT4MS-E 48-Port Gigabit Layer 2+ Managed Switch with Four 2.5GE Uplink SFP Ports
US$1000.00

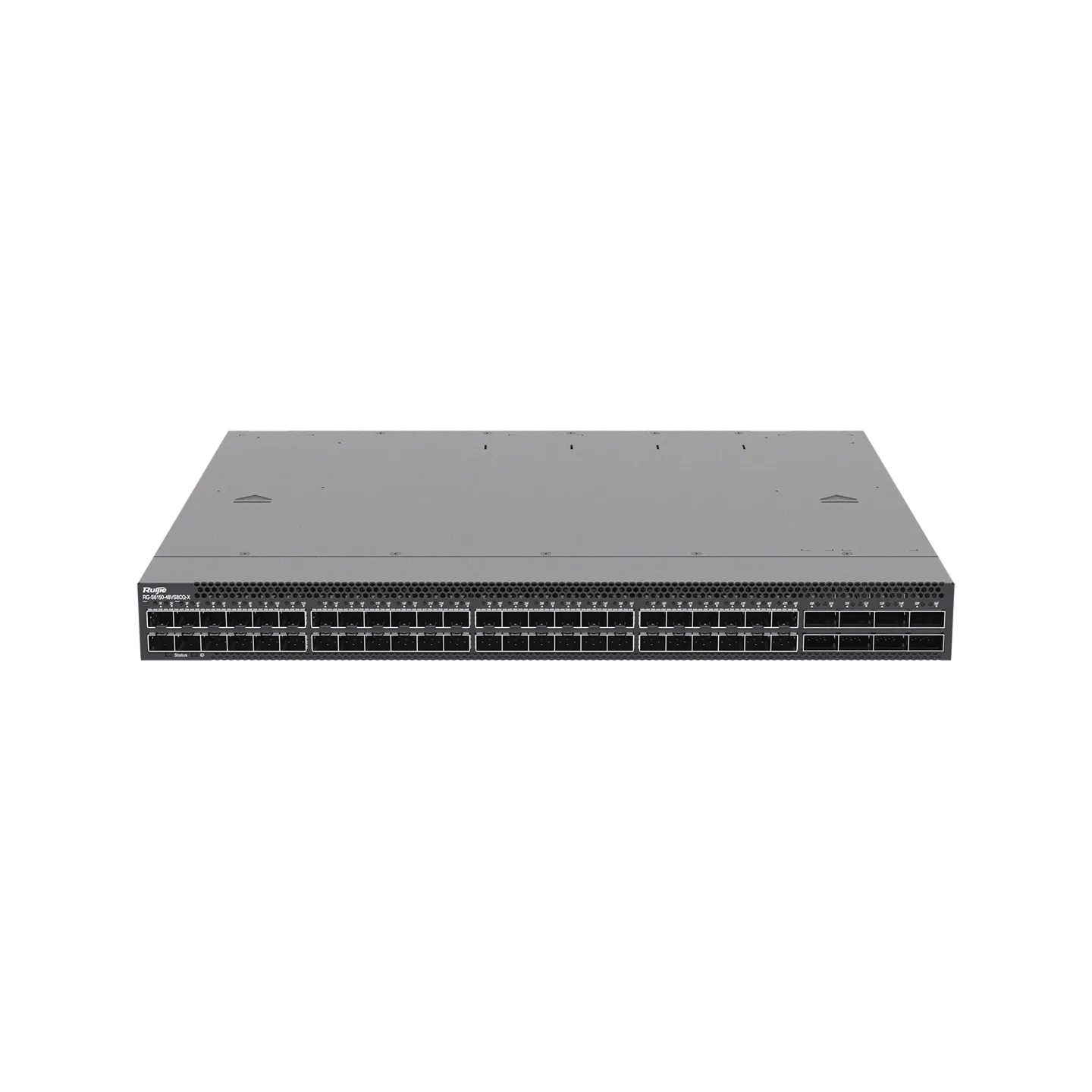

RG-S6510-48VS8CQ 25GE Data Center Access Switch
