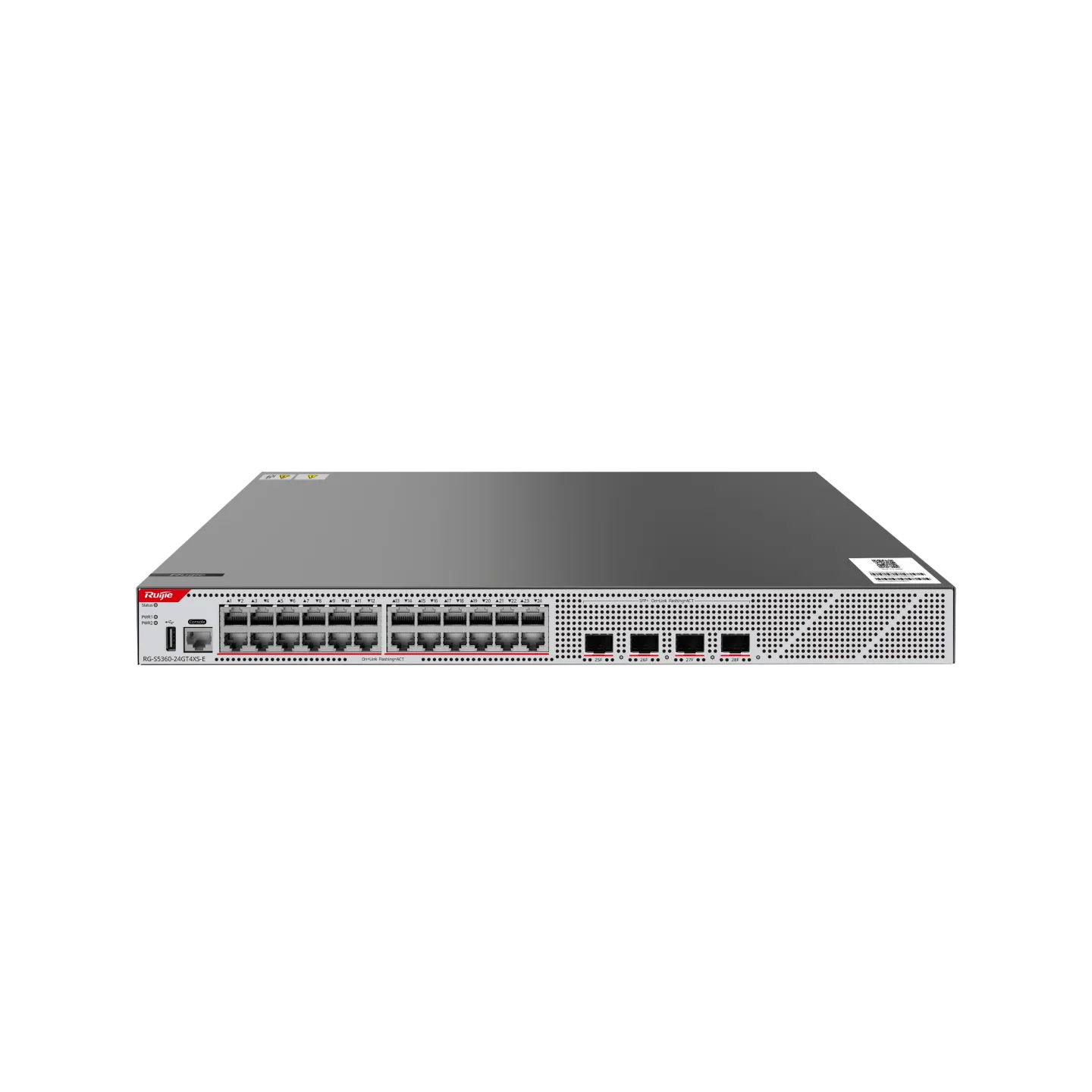

RG-S5360-24GT4XS-E 24-Port GE Layer 3 Managed Access Switch, 4-Port 10GE Uplink
P/N: RG-S5360-24GT4XS-E
US$1000.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Multiple port types with full gigabit access, flexible 10GE uplink, and PoE/PoE+ for enhanced speed and performance
Nano Coating Protection for Enhanced Durability
Hot-pluggable Dual Power Modules for Higher Reliability
Stronger Interference Resistance with Wide Temperature Range & 10kV Surge Protection
INC Provides Easy and Efficient O&M
See more
Specifications
Q&A
Reviews
Resources
RG-S5360-24GT4XS-E 24-Port GE Layer 3 Managed Access Switch, 4-Port 10GE Uplink
Ideal for large enterprises, campuses, and institutions, providing gigabit access, secure networking, and efficient support for IP phones, APs, cameras, and server clusters.
Specifications
Port specifications
RG- S5360-24GT4XS-E
Fixed service port
24 x 10/100/1000BASE-T ports；4 x 1GE/2.5GE/10GE SFP+ ports
Module slot
2 x power module slots
Power module
PA70IB
Fixed management port
1 x RJ45 console port
USB
1 x USB 2.0 port
System packet forwarding rate*1
115 Mpps
System switching capacity*2
154 Gbps
CPU
Dual-core CPU, each core with the clock speed of 1.0 GHz
Real-time clock (RTC)
Supported
BootROM
16 MB (storing boot software for 1+1 boot redundancy)
Flash memory
512 MB
Memory
1GB DDR4
Switch buffer
4 MB
Number of MAC addresses
16,000
ARP table size
4,000
ND table size
4,000
Number of IPv4 unicast routes
6,000
Number of IPv4 multicast routes
1,000
Number of IPv6 unicast routes
2,000
Number of IPv6 multicast routes
750
Number of ACEs
Ingress: 1,750 ；Egress: 800
Number of IGMP groups
1,000
Number of MLD groups
750
Number of VSU members
4
Power supply
2 x pluggable power modules
Power module redundancy
1+1 redundancy
Maximum output power
RG-PA70IB: 70 W
Maximum power consumption
25 W
Energy saving
Supported
Rack height
1 RU
Unit weight
4.4 kg (9.70 lbs)
Mounting
Mounting on a workbench or in a rack (cabinet)
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line

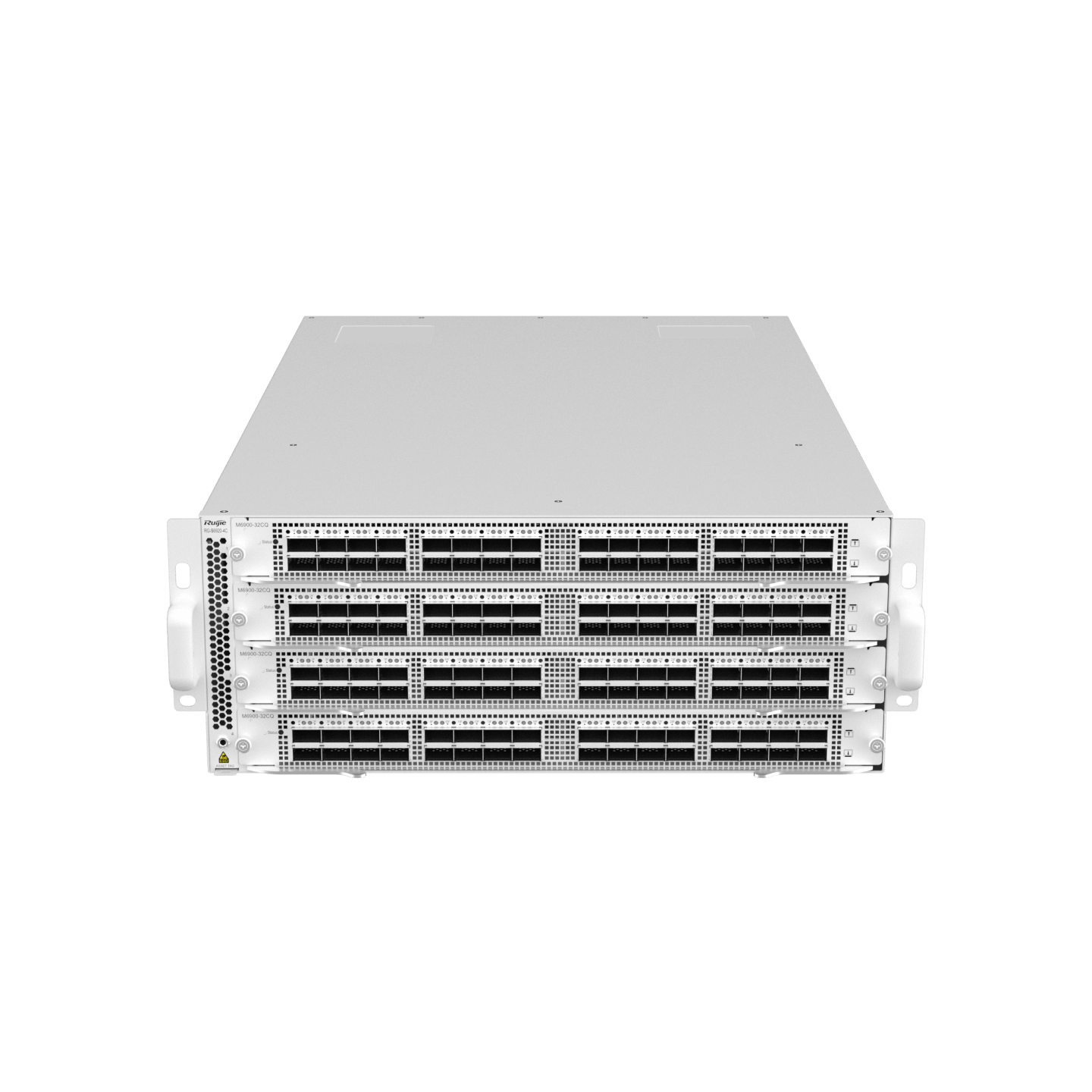

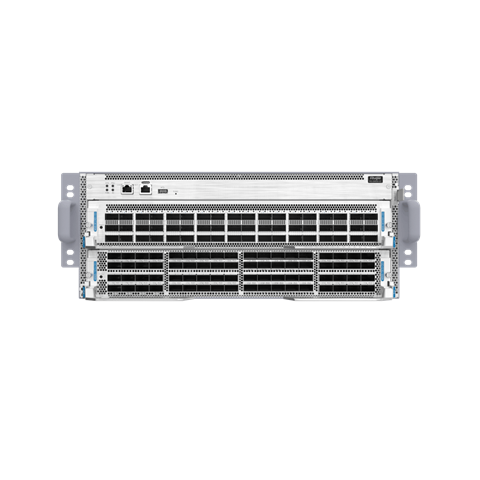

RG-S6920-4C – Next-Generation Data Center 100GE Switch with 100GE/400GE Line Cards
US$1000.00

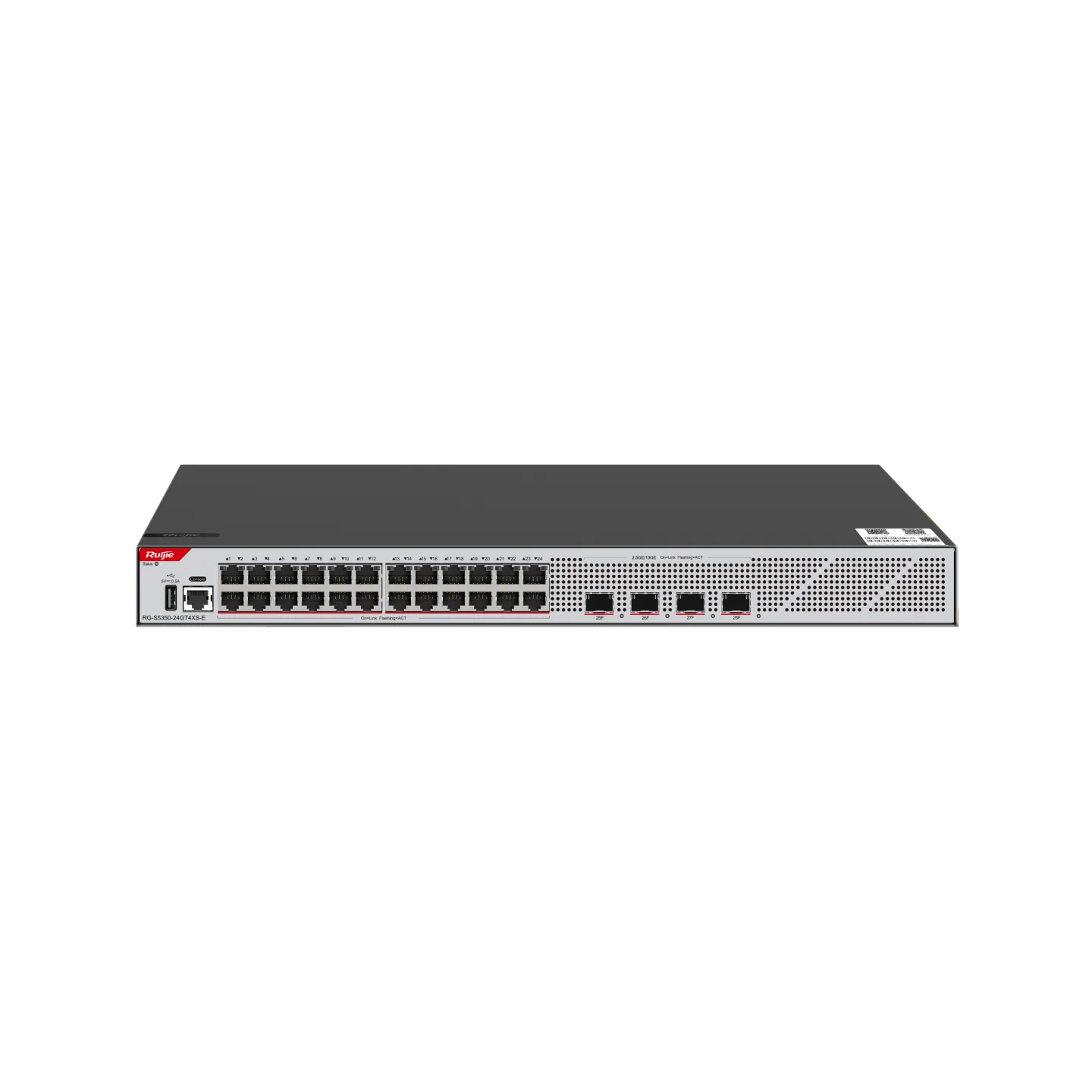

RG-S5350-24GT4XS-E 24-Port GE Layer 3 Managed Access Switch, 4-Port 10GE Uplink
US$1000.00

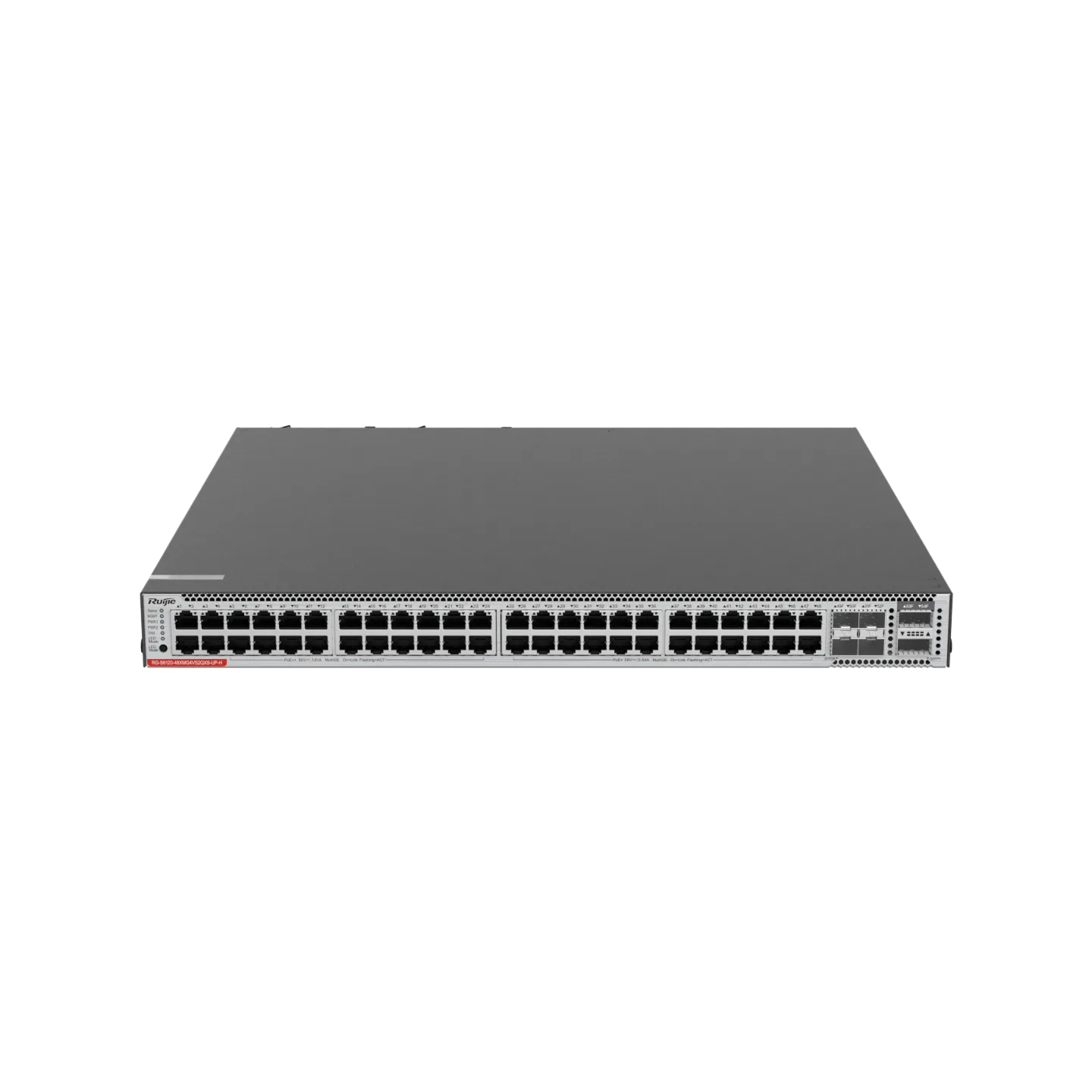

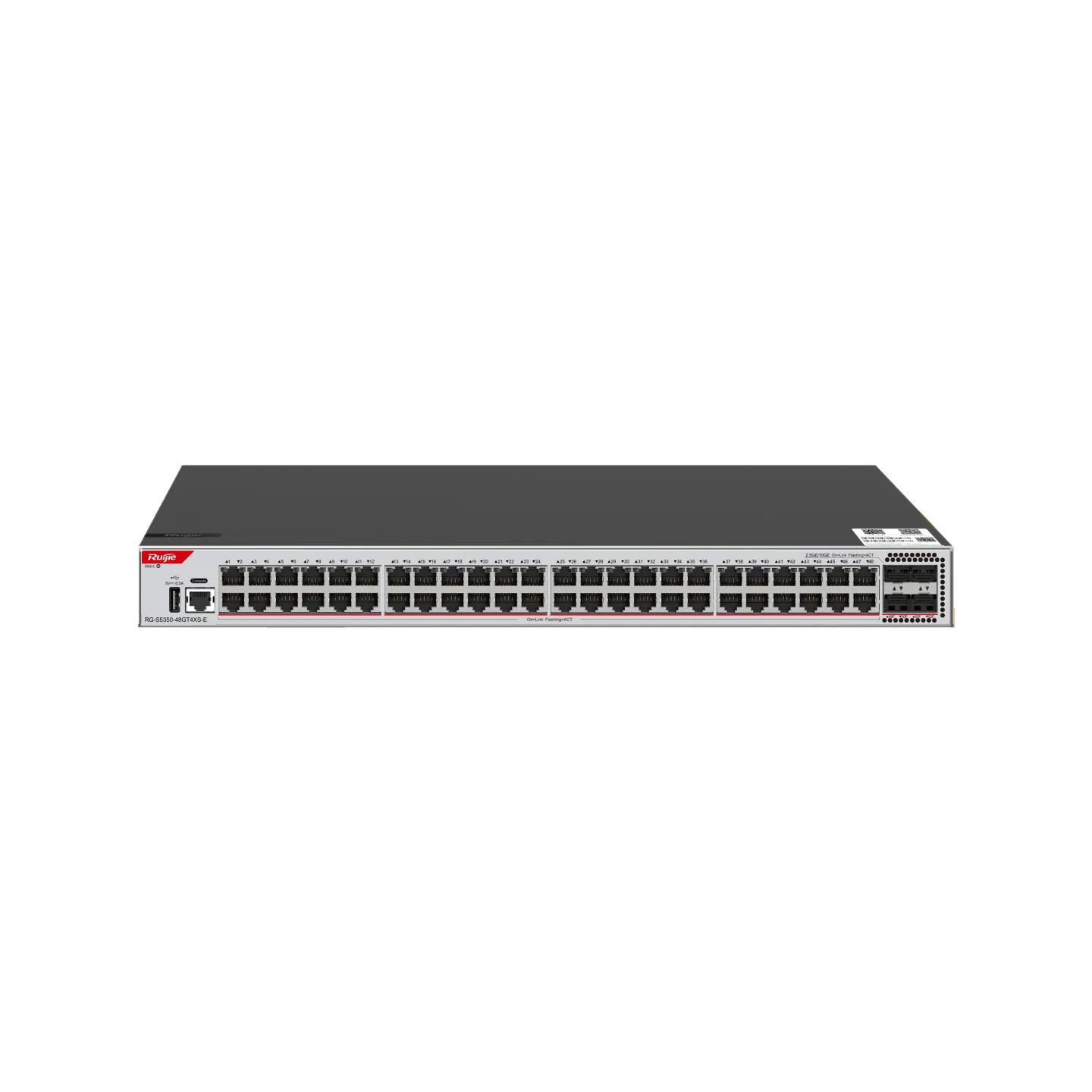

RG-S5350-48GT4XS-E 48-Port GE Layer 3 Managed Access Switch, 4-Port 10GE Uplink
US$1000.00

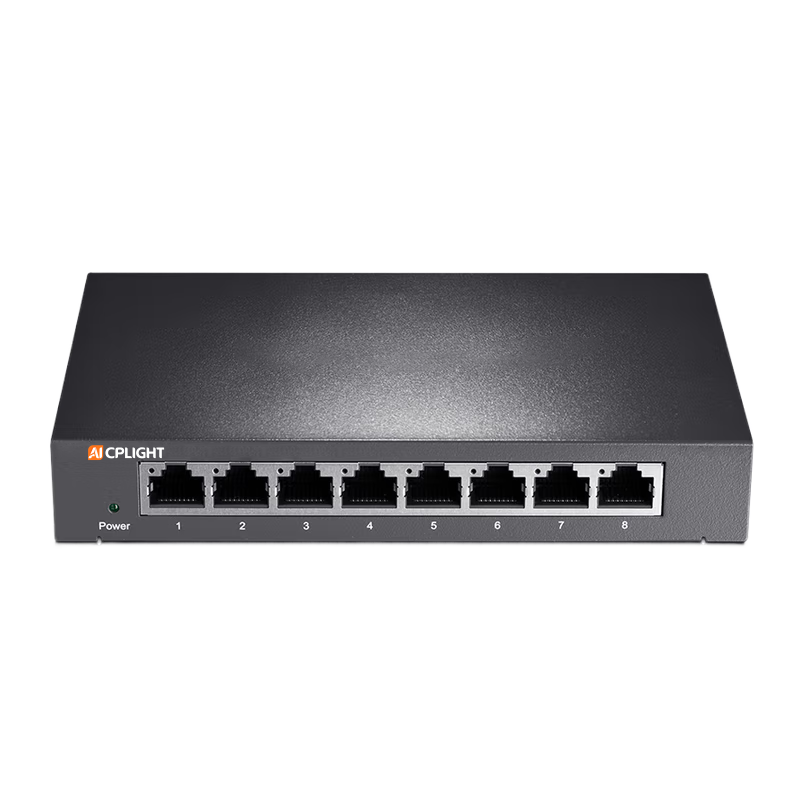

E1000-8P, 8 x 1Gb RJ45, L2 Unmanaged Switch
US$60.00
RG-S6930-2C – Next-Generation Data Center High-Density Centralized Modular Core Switch with 100GE/200GE Line Cards
US$1000.00
RG-S5000-24GT4MS-E 24-Port Gigabit Layer 2+ Managed Switch with Four 2.5GE Uplink SFP Ports
US$1000.00

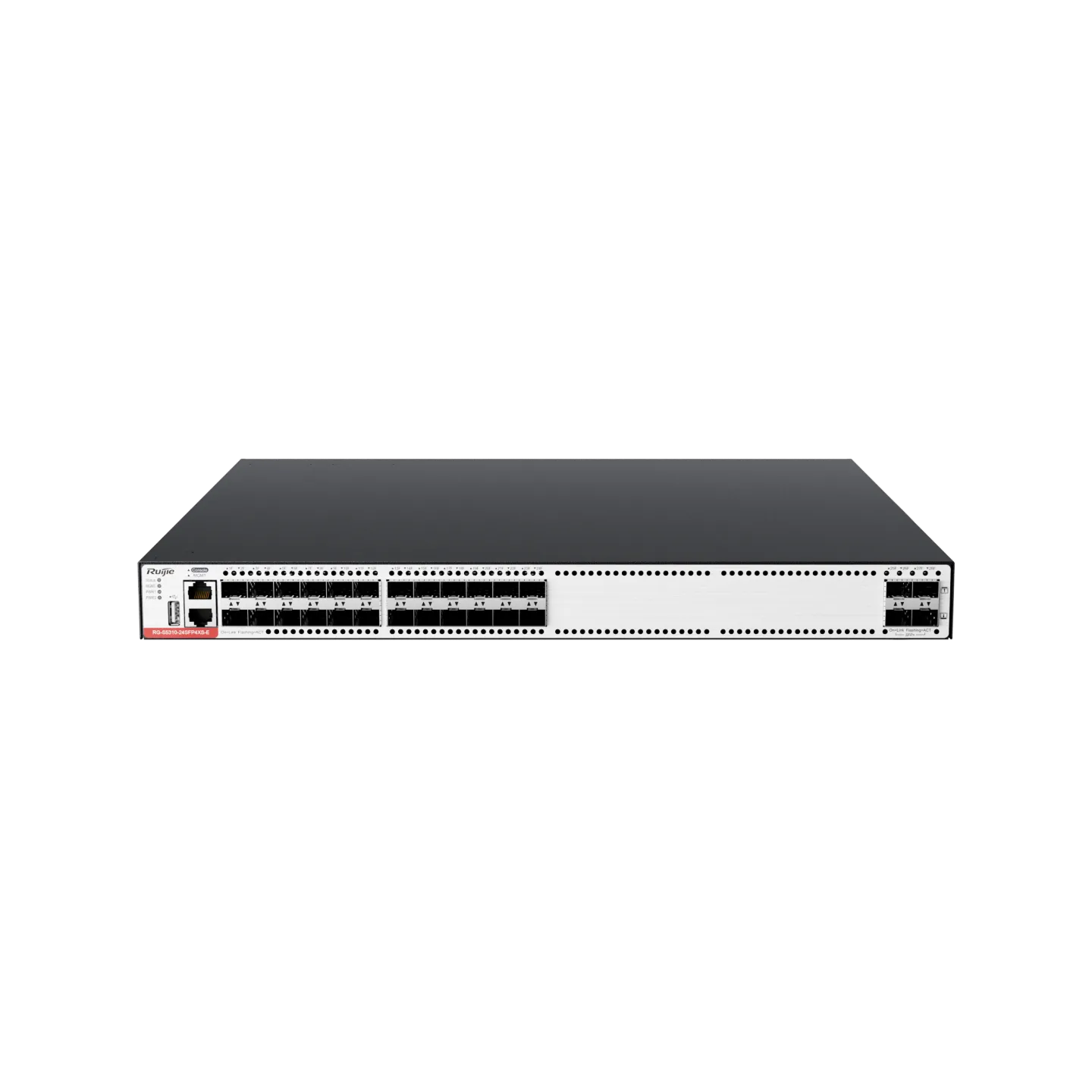

RG-S5310-48SFP4XS-E, 48-Port GE Optical Layer 3 Managed Access Switch
US$1000.00
RG-S5310-24SFP4XS-E,24-Port GE Optical Layer 3 Managed Access Switch
US$1000.00

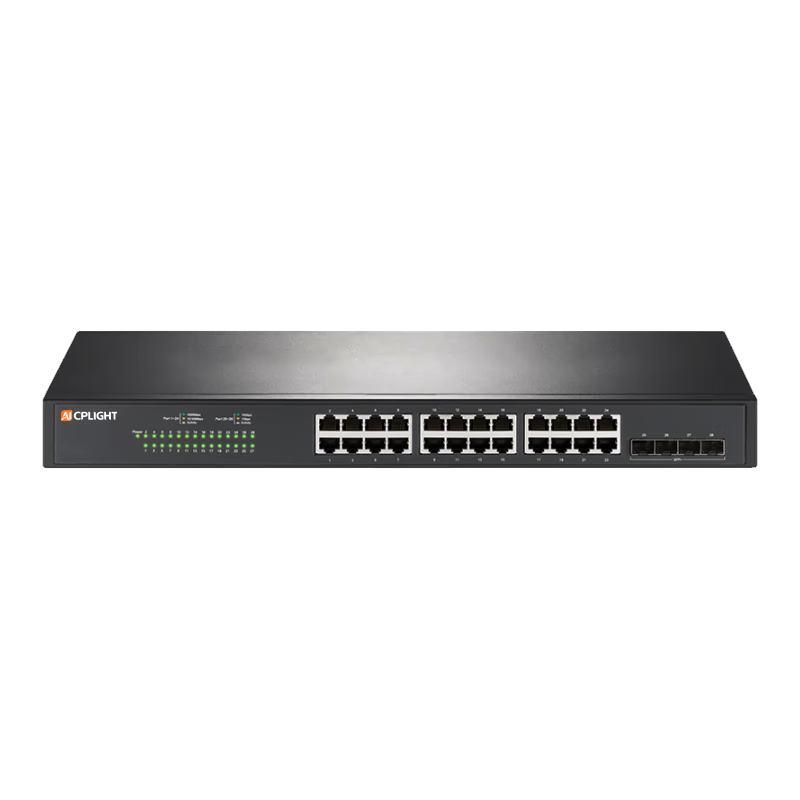

E1000PL-24P2X, 24 x 1Gb RJ45, 2 Gigabit Uplink Ports, 2 x 1G SFP, L2 Managed Switch
