Juniper JNP-SFP-25G-SR Compatible 25GBASE-SR SFP28 25G 850nm 100m DOM Duplex LC/UPC MMF Ethernet Optical Transceiver Module
Juniper JNP-SFP-25G-SR Compatible 25GBASE-SR SFP28 25G 850nm 100m DOM Duplex LC/UPC MMF Ethernet Optical Transceiver Module
Juniper JNP-SFP-25G-SR Compatible 25GBASE-SR SFP28 25G 850nm 100m DOM Duplex LC/UPC MMF Ethernet Optical Transceiver Module
P/N: SFP-25G-SR
$19.00
6
Solds
7
Reviews
5
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Built-in Macom Chip, Max. Power Consumption 1W
Interoperable with Other IEEE-compliant 25G Interfaces for Seamless Integration
Tested in Targeted Switch for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3by and IEEE 802.3cc
Support 4x25G Fan out and Easy Migration to 100G Platforms
Applied in 25G Ethernet, Telecom, and Data Center
Hot Pluggable SFP28 MSA Compliant
See more
Specifications
Certification
Connectivity Solutions
Comparison Table
Q&A
Reviews
Resources
Juniper JNP-SFP-25G-SR Compatible 25GBASE-SR SFP28 25G 850nm 100m DOM Duplex LC/UPC MMF Ethernet Optical Transceiver Module
The SFP-25G-SR SFP28 transceiver adopts LC duplex connectors, reaching a link up to 100m over OM4 MMF (70m over OM3). The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DDM/DOM functions monitor the real-time operating status. This hot-swappable transceiver is pre-programmed, uniquely serialized, and tested for data traffic and application performance. Besides, it offers interoperability, laying a foundation for the next-generation network upgrade. Each SFP28 transceiver module is individually tested on a series of Cisco switches, and is fully compliant with the SFP28 MSA, RoHS, CPRI, and the eCPRI standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center.
Specifications
Form Factor
SFP28
Data Rate
25.78125Gbps
Media
MMF
Wavelength
850nm
Connector
Duplex LC UPC
Distance
70m@OM3 100m@OM4
Transmitter Type
VCSEL
Receiver Type
PIN
Electrical Modulation
1x 25.78125G NRZ
Optical Modulation
1x 25.78125G NRZ
Power Consumption
≤1.0W
Case Operating Temperature
0 to 70°C (32 to 158°F)
Protocol
25 Gigabit Ethernet 16G Fiber Channel
Application
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Connectivity Solutions

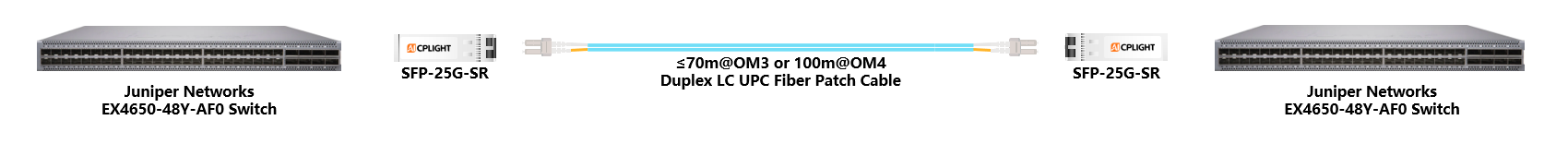

Juniper Switch links：25G SFP28 to 25G SFP28
All
Juniper Switch links：25G SFP28 to 25G SFP28
Comparison Table
Cisco Compatible 25GBASE-SR SFP28 25G 850nm 100m Duplex LC/UPC MMF Transceiver Module
SFP-25G-SR
Cisco Compatible 25GBASE-LR SFP28 25G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
SFP-25G-LR
Form Factor SFP28SFP28
Data Rate 25.78125Gbps25.78125Gbps
Media MMFSMF
Wavelength 850nm1310nm
Connector Duplex LC UPCDuplex LC UPC
Distance 70m@OM3 100m@OM410km
Transmitter Type VCSELDFB
Receiver Type PINPIN
Electrical Modulation 1x 25.78125G NRZ1x 25.78125G NRZ
Optical Modulation 1x 25.78125G NRZ1x 25.78125G NRZ
Power Consumption ≤1.0W≤1.2W
Case Operating Temperature 0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Protocol 25 Gigabit Ethernet 16G Fiber Channel25 Gigabit Ethernet 16G Fiber Channel
Application Swicth to Switch Switch to NIC Router to NIC Other Optical LinksSwicth to Switch Switch to NIC Router to NIC Other Optical Links
Form Factor
Data Rate
Media
Wavelength
Connector
Distance
Transmitter Type
Receiver Type
Electrical Modulation
Optical Modulation
Power Consumption
Case Operating Temperature
Protocol
Application
Cisco Compatible 25GBASE-SR SFP28 25G 850nm 100m Duplex LC/UPC MMF Transceiver Module
SFP-25G-SR
Cisco Compatible 25GBASE-LR SFP28 25G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
SFP-25G-LR
SFP28
SFP28
25.78125Gbps
25.78125Gbps
MMF
SMF
850nm
1310nm
Duplex LC UPC
Duplex LC UPC
70m@OM3 100m@OM4
10km
VCSEL
DFB
PIN
PIN
1x 25.78125G NRZ
1x 25.78125G NRZ
1x 25.78125G NRZ
1x 25.78125G NRZ
≤1.0W
≤1.2W
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
25 Gigabit Ethernet 16G Fiber Channel
25 Gigabit Ethernet 16G Fiber Channel
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
