Brocade 10G-SFPP-LR Compatible 10GBASE-LR SFP+ 10G 1310nm 10km DOM Duplex LC/UPC SMF Ethernet Optical Transceiver Module
Brocade 10G-SFPP-LR Compatible 10GBASE-LR SFP+ 10G 1310nm 10km DOM Duplex LC/UPC SMF Ethernet Optical Transceiver Module
Brocade 10G-SFPP-LR Compatible 10GBASE-LR SFP+ 10G 1310nm 10km DOM Duplex LC/UPC SMF Ethernet Optical Transceiver Module
P/N: SFP-10G-LR
$11.90
5
Solds
8
Reviews
5
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Built-in Semtech Chip, Max. Power Consumption 1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable SFP+ MSA Compliant
Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
TO Package Features High Reliability and Robust Physical Protection
Class 1 FDA Laser Safety and RoHS Compliant
IEEE 802.3ae Compliant
See more
Specifications
Certification
Connectivity Solutions
Comparison Table
Q&A
Reviews
Resources
Brocade 10G-SFPP-LR Compatible 10GBASE-LR SFP+ 10G 1310nm 10km DOM Duplex LC/UPC SMF Ethernet Optical Transceiver Module
The SFP-10G-LR SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.
Specifications
Form Factor
SFP+
Data Rate
10.3125Gbps
Media
SMF
Wavelength
1310nm
Connector
Duplex LC UPC
Distance
10km
Transmitter Type
DFB
Receiver Type
PIN
Electrical Modulation
1x 10.3125G NRZ
Optical Modulation
1x 10.3125 NRZ
Power Consumption
≤1.0W
Case Operating Temperature
0 to 70°C (32 to 158°F)
Protocol
10 Gigabit Ethernet 4G/8G/10G Fiber Channel
Application
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Connectivity Solutions

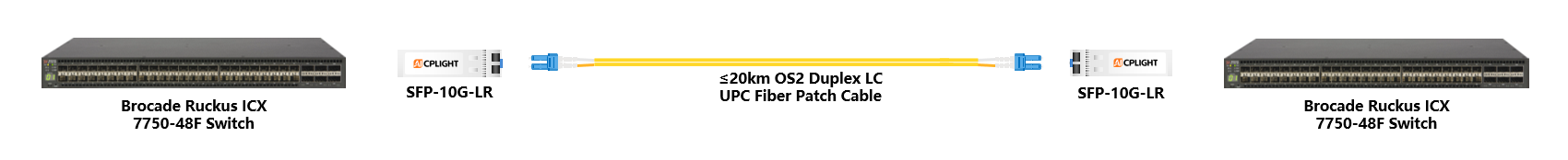

Brocade ICX Switch links：10G SFP+ to 10G SFP+
All
Brocade ICX Switch links：10G SFP+ to 10G SFP+
Comparison Table
Cisco Compatible 10GBASE-SR SFP+ 10G 850nm 300m Duplex LC/UPC MMF Transceiver Module
SFP-10G-SR
Cisco Compatible 10GBASE-LR SFP+ 10G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
SFP-10G-LR
Form Factor SFP+SFP+
Data Rate 10.3125Gbps10.3125Gbps
Media MMFSMF
Wavelength 850nm1310nm
Connector Duplex LC UPCDuplex LC UPC
Distance 300m@OM3 400m@OM410km
Transmitter Type VCSELDFB
Receiver Type PINPIN
Electrical Modulation 1x 10.3125G NRZ1x 10.3125G NRZ
Optical Modulation 1x 10.3125 NRZ1x 10.3125 NRZ
Power Consumption ≤1.0W≤1.0W
Case Operating Temperature 0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Protocol 10 Gigabit Ethernet 4G/8G/10G Fiber Channel10 Gigabit Ethernet 4G/8G/10G Fiber Channel
Application Swicth to Switch Switch to NIC Router to NIC Other Optical LinksSwicth to Switch Switch to NIC Router to NIC Other Optical Links
Form Factor
Data Rate
Media
Wavelength
Connector
Distance
Transmitter Type
Receiver Type
Electrical Modulation
Optical Modulation
Power Consumption
Case Operating Temperature
Protocol
Application
Cisco Compatible 10GBASE-SR SFP+ 10G 850nm 300m Duplex LC/UPC MMF Transceiver Module
SFP-10G-SR
Cisco Compatible 10GBASE-LR SFP+ 10G 1310nm 10km Duplex LC/UPC SMF Transceiver Module
SFP-10G-LR
SFP+
SFP+
10.3125Gbps
10.3125Gbps
MMF
SMF
850nm
1310nm
Duplex LC UPC
Duplex LC UPC
300m@OM3 400m@OM4
10km
VCSEL
DFB
PIN
PIN
1x 10.3125G NRZ
1x 10.3125G NRZ
1x 10.3125 NRZ
1x 10.3125 NRZ
≤1.0W
≤1.0W
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
10 Gigabit Ethernet 4G/8G/10G Fiber Channel
10 Gigabit Ethernet 4G/8G/10G Fiber Channel
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
