5m(16ft) Arista CAB-SFP-SFP-5M Compatible 10G SFP+ Ethernet Passive Direct Attach Copper Twinax Cable
5m(16ft) Arista CAB-SFP-SFP-5M Compatible 10G SFP+ Ethernet Passive Direct Attach Copper Twinax Cable
5m(16ft) Arista CAB-SFP-SFP-5M Compatible 10G SFP+ Ethernet Passive Direct Attach Copper Twinax Cable
P/N: S10-S10-C5
$15.00
4
Solds
10
Reviews
2
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Max. Power Consumption 0.1W
Switches Tested for Prime Performance, Quality, Reliability
Minimum Bend Radius 26mm for Flexible Routing
Simplified Patching and Cost-effective Short Links Solution
Specifications
Certification
Connectivity Solutions
Comparison Table
Q&A
Reviews
Resources
5m(16ft) Arista CAB-SFP-SFP-5M Compatible 10G SFP+ Ethernet Passive Direct Attach Copper Twinax Cable
The 10G SFP+ Passive Direct Attach Copper Twinax Cable offers a cost-effective connectivity for establishing a 10-Gigabit short-distance connectivity within a rack or between adjacent racks in data centers.
The Passive Direct Attach Cable is an ideal 10GBASE Ethernet network solution that require reliability, low latency, and practically no power consumption. DAC cables are lower cost, more durable than optical fibers. This cable provides low insertion loss and ultra-low crosstalk. And it complies with IEEE 802.3, SFF-8431, and hot-pluggable QSFP28 MSA standards, ensuring reliability of your network with full system testing in targeted Switches.
Specifications
Connector Type
SFP+ to SFP+
Data Rate
10.3125Gbps to 10.3125Gbps
Media
Copper
Cable Type
DAC
Cable Length
0.5m~7m(2ft~23ft)
Outer Diameter
0.5m~3m@AWG 30 4m~7m@AWG 24
Jacket Material
PVC
Minimum Bend Radius
23mm@AWG 30 38mm@AWG 24
Power Consumption
≤0.1W
Case Operating Temperature
0 to 70°C (32 to 158°F)
Protocol
10 Gigabit Ethernet 10G Infiniband SDR
Application
Swicth to Switch Switch to NIC Router to NIC Other Links
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Connectivity Solutions

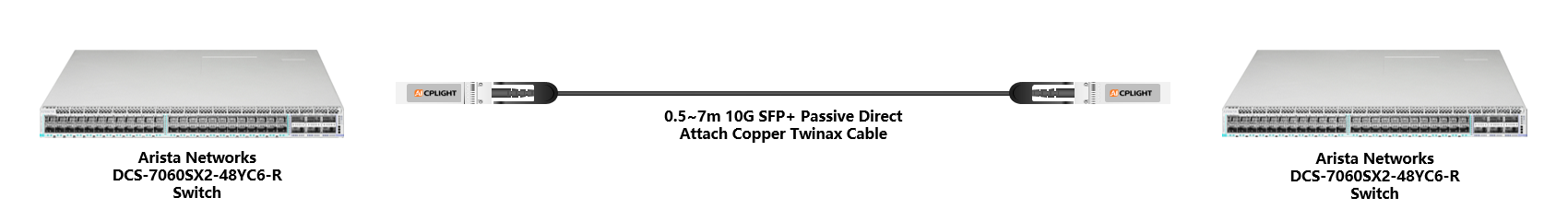

Arista Switch links：10G to 10G
All
Arista Switch links：10G to 10G
Comparison Table
Cisco Compatible 10G SFP+ Passive DAC, 1m (3ft)
S10-S10-C1
Cisco Compatible 10G SFP+ AOC, 1m (3ft)
S10-S10-A1
Connector Type SFP+ to SFP+SFP+ to SFP+
Data Rate 10.3125Gbps to 10.3125Gbps10.3125Gbps to 10.3125Gbps
Media CopperFiber
Cable Type DACAOC
Cable Length 0.5m~7m(2ft~23ft)1m~100m(3ft~328ft)
Outer Diameter 0.5m~3m@AWG 30 4m~7m@AWG 243.0mm
Jacket Material PVCOFNP
Minimum Bend Radius 23mm@AWG 30 38mm@AWG 2430mm
Power Consumption ≤0.1W≤0.8W
Case Operating Temperature 0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Protocol 10 Gigabit Ethernet 10G Infiniband SDR10 Gigabit Ethernet 10G Infiniband SDR 4G/8G/10G Fiber Channel
Application Swicth to Switch Switch to NIC Router to NIC Other LinksSwicth to Switch Switch to NIC Router to NIC Other Optical Links
Connector Type
Data Rate
Media
Cable Type
Cable Length
Outer Diameter
Jacket Material
Minimum Bend Radius
Power Consumption
Case Operating Temperature
Protocol
Application
Cisco Compatible 10G SFP+ Passive DAC, 1m (3ft)
S10-S10-C1
Cisco Compatible 10G SFP+ AOC, 1m (3ft)
S10-S10-A1
SFP+ to SFP+
SFP+ to SFP+
10.3125Gbps to 10.3125Gbps
10.3125Gbps to 10.3125Gbps
Copper
Fiber
DAC
AOC
0.5m~7m(2ft~23ft)
1m~100m(3ft~328ft)
0.5m~3m@AWG 30 4m~7m@AWG 24
3.0mm
PVC
OFNP
23mm@AWG 30 38mm@AWG 24
30mm
≤0.1W
≤0.8W
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
10 Gigabit Ethernet 10G Infiniband SDR
10 Gigabit Ethernet 10G Infiniband SDR 4G/8G/10G Fiber Channel
Swicth to Switch Switch to NIC Router to NIC Other Links
Swicth to Switch Switch to NIC Router to NIC Other Optical Links
