5m (16ft) Huawei Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
5m (16ft) Huawei Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
5m (16ft) Huawei Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
P/N: SFP-10G-CU
US$14.00
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Max. Power Consumption 0.1W
Switches Tested for Prime Performance, Quality, Reliability
Minimum Bend Radius 29mm for Flexible Routing
Simplified Patching and Cost-effective Short Links Solution
Specifications
Q&A
Reviews
Resources
5m (16ft) Huawei Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable

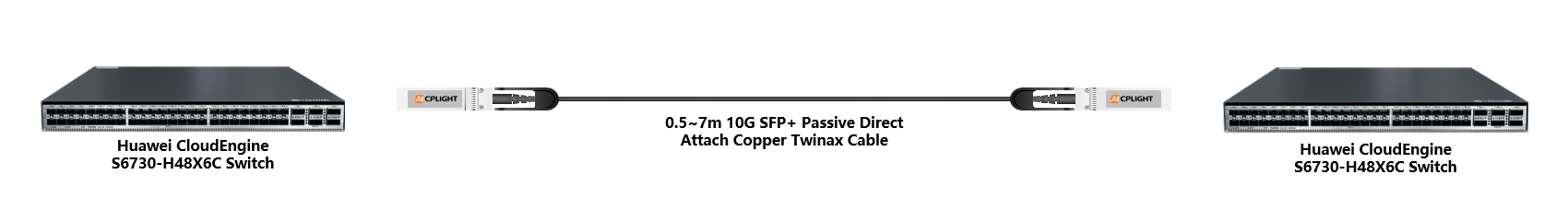

The 10G SFP+ Passive Direct Attach Copper Twinax Cable offers a cost-effective connectivity for establishing a 10-Gigabit short-distance connectivity within a rack or between adjacent racks in data centers.
The Passive Direct Attach Cable is an ideal 10GBASE Ethernet network solution that require reliability, low latency, and practically no power consumption. DAC cables are lower cost, more durable than optical fibers. This cable provides low insertion loss and ultra-low crosstalk. And it complies with IEEE 802.3, SFF-8431, and hot-pluggable QSFP28 MSA standards, ensuring reliability of your network with full system testing in targeted Switches.
Specifications
Part Number
SFP-10G-CU
Vendor Name
CPLIGHT
Connector Type
SFP+ to SFP+
Max Data Rate
10Gbps
Media
Copper
Power Supply
3.3V
Minimum Bend Radius
23mm
Wire AWG
30AWG
Cable Length
5m (16ft)
Jacket Material
PVC (OFNR)
Cable Type
Passive Twinax
Temperature
0 to 70°C (32 to 158°F)
Power Consumption
≤0.1W
Application
10G Ethernet
Protocols
1x InfiniBand QDR, DDR, SDR, 10 Gigabit Ethernet, Fibre Channel
Warranty
5 Years
Certification
