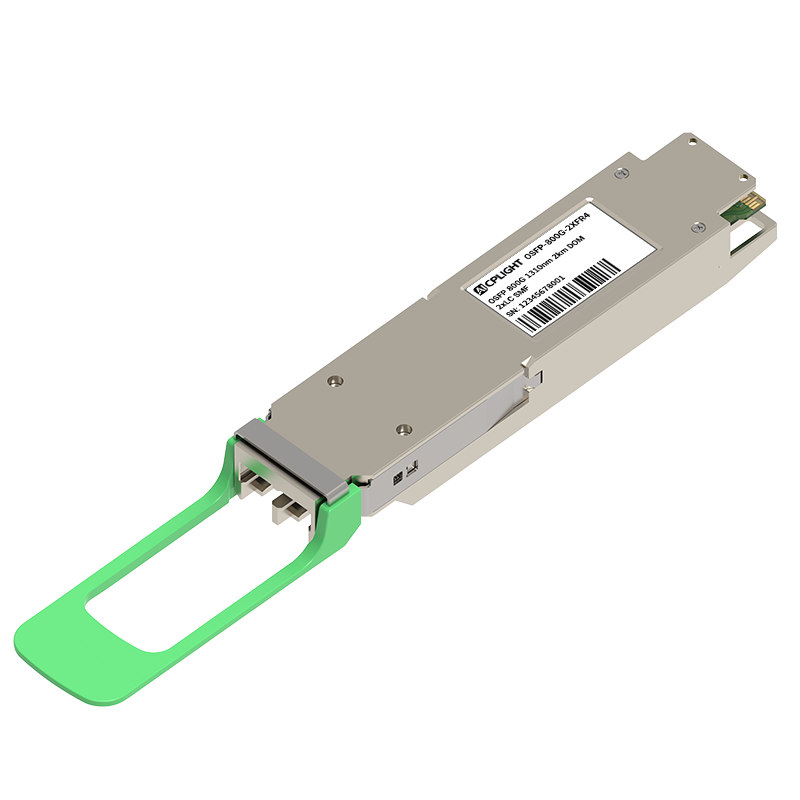

NVIDIA/Mellanox MMS4X50-NM Compatible 800GBASE 2 x FR4 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 Switches
P/N: OSFP-800G-2xFR4
US$1199.00
8
Reviews
7
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
(1000 In Stock)

Product Highlights

Qualified for InfiniBand NDR End-to-End Systems
Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 16.5W
Finned-Top OSFP Used in Quantum-2 Air-Cooled Switches
Support 800G-to-Two 400G ConnectX-7 Links
8x 100G-PAM4 Electrical to Dual 4x 100G-PAM4 Optical Multiplexed
100% Verified by the Original, Perfectly Compatible with NVIDIA QM9700/9790 Devices
Compliant with OSFP MSA, IEEE 802.3ck, RoHS, and Class 1 Laser Safety, with DDM Support
See more
NVIDIA/Mellanox MMS4X50-NM Compatible 800GBASE 2 x FR4 OSFP Finned Top PAM4 1310nm 2km DOM Dual Duplex LC/UPC SMF InfiniBand NDR Optical Transceiver Module for Quantum-2 Switches
The InfiniBand MMS4X50-NM Compatible OSFP Optical Transceiver is an 800Gb/s 2x400Gb/s Twin-port OSFP, 2xFR4 single mode, Multiplexed, 8-channel transceiver using two, 2-fiber, LC Duplex optical connectors each carrying 4-channels of 100G-PAM4. The dual Far Reach 8-channel (2xFR4) design uses 100G-PAM4 electrical and optical modulation based on the CWDM4 serial, multiplexed 1310nm wavelength grid. It is qualified for use in InfiniBand NDR end-to-end systems.
It is the ideal solution for supercomputing, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnectivity. Used in Quantum-2 air-cooled switches.
Specifications
NVIDIA/Mellanox InfiniBand Compatible
MMS4X50-NM
Vendor Name
AICPLIGHT
Form Factor
Twin-port OSFP Finned Top
Max Data Rate
850Gbps (8x 106.25Gbps)
Wavelength
1271nm, 1291nm, 1311nm and 1331nm
Max Cable Distance
2km
Connector
Dual Duplex LC/UPC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-3.2~4.4dBm
Minimum Receiver Power
-7.2dBm
Power Budget
4dB
Receiver Overload
4.4dBm
Max Power Consumption
16.5W
Extinction Ratio
>3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
8x100G-PAM4
Modulation (Optical)
Dual 4x100G-PAM4
Protocols
IEE802.3ck, IEEE 802.3cu, OSFP MSA
Warranty
5 Years
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
