MPO-12 vs. MPO-16 vs. MPO-24: How to Match MPO Cables with Optical Transceivers

In modern data centers, especially those supporting AI workloads and 400G/800G deployments, fiber cabling is not just about connectivity but plays a crucial role in maintaining network reliability and scalability. Choosing the wrong MPO cable can result in link failures, fiber wastage, and costly rework. This guide explains how to properly match MPO fiber optic cables with the right optical transceivers.

The relationship between MPO cables and optical transceivers is governed by optical lanes. Each transceiver uses multiple transmit and receive channels (lanes), and each lane requires a fiber pair. This results in different fiber counts depending on the transceiver's lane configuration. For example, a 4-lane SR4 module requires 8 fibers (4 transmit + 4 receive), while an 8-lane SR8 module needs 16 fibers (8 transmit + 8 receive). Selecting the correct MPO cable for fiber transceiver setup depends on understanding this relationship.

Understanding how fiber counts align with transceiver architectures is essential for building a scalable, efficient network. MPO connectors come in several fiber counts, including 8, 12, 16, and 24 fibers. Each of these is designed to support specific lane configurations and applications, helping to optimize network performance. Below is a breakdown of how these fiber counts match various transceiver types and their practical uses in 400G and 800G environments.

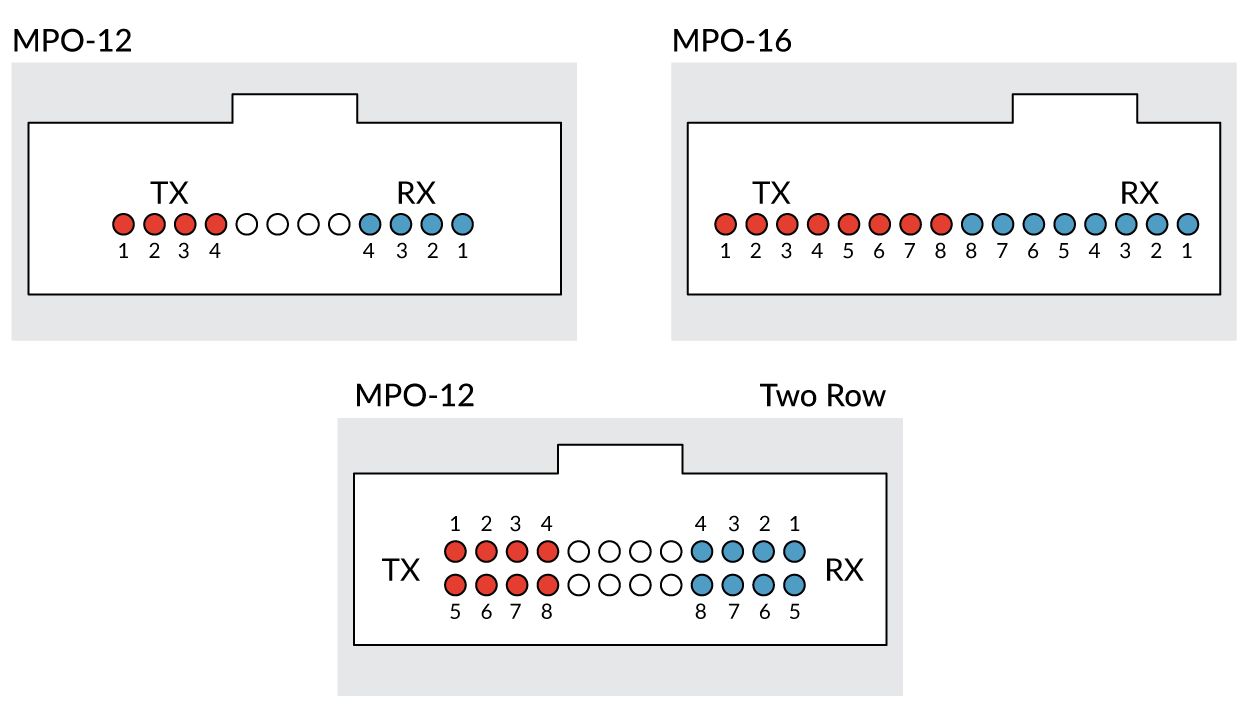

Figure 1: An illustration showing the TX (Transmit) and RX (Receive) lane assignments for three connector types: Single-row MPO-12, Single-row MPO-16, and Two-row MPO-12/24. Red dots indicate TX lanes, blue dots indicate RX, and white dots represent unused pins.

MPO-12 Cable: Traditionally the standard for parallel optics, commonly used for 40G, 100G and 200G. For example, 40GBASE-SR4 QSFP+ transceiver, 100GBASE-SR4 QSFP28 optical transceiver and 200GBASE-SR4 QSFP56 transceiver all transmit over MPO-12/UPC multimode fiber cable. However, for 400GBASE-SR4 OSFP/QSFP112/QSFP-DD optical transceiver, MPO-12/APC multimode fiber cables are needed. For modern applications like 800G, dual MPO-12 APC fiber cables are used for 800GBASE 2xSR4 and 800GBASE 2xDR4 OSFP transceivers.

MPO-16 Cable: A perfect fit for 8-lane architectures in 400G and 800G, commonly used for AI clusters and advanced data center fabrics. For example, 400GBASE-SR8 QSFP-DD optical transceiver module transmits up to 100m over MPO-16/APC OM4 fiber cables.

MPO-24 Cable: Primarily used for high-density backbone and breakout applications, suitable for legacy transceivers or environments that require more than 8 lanes.

Here's a practical approach for selecting the right MPO cable type for various transceiver configurations:

MPO-12 cables are the go-to solution for many data centers, especially those working with parallel optical modules. They are highly compatible with 40G, 100G, and 400G applications.

Transceiver Compatibility: The MPO-12 cable supports 4-lane transceivers like 400G SR4 and DR4, where it uses 8 of the 12 fibers for transmission (4 Tx and 4 Rx). The remaining fibers are unused. For 800G 2xSR4/2xDR4 optical transceiver, the MPO-12 cable can still be used by employing dual MPO-12 APC connectors. This configuration supports up to 16 fibers, making it ideal for 800G deployments in data centers looking for flexibility.

Recommendation: Use MPO-12 cables for networks that deploy up to 400G and plan for future 800G applications. For scenarios where fiber utilization is critical, the MPO-8 cable is more efficient and can seamlessly transition to MPO-16 cables using breakout solutions.

MPO-16 cables support 8-lane transceivers, making them ideal for the next generation of high-speed networks. With 16 fibers, they support 8 transmit and 8 receive channels, providing efficient parallel transmission with no fiber wastage.

Transceiver Compatibility: For 400G SR8 (8x50G) and 800G SR8 (8x100G): The MPO-16 cable is designed to support these 8-lane architectures, which is becoming the industry standard for 400G and 800G networks.

Recommendation: MPO-16 cables are ideal for 800G deployments, including AI and large-scale data center fabrics. They help ensure maximum efficiency in modern high-speed data transmission while reducing fiber waste.

MPO-24 cables are designed for high-density backbone applications. They are typically used for transceivers that require more than 8 lanes or in trunking solutions that need to aggregate multiple fiber connections.

Transceiver Compatibility: For legacy transceivers (e.g., 100G CFP SR10): These transceivers use 20 out of the 24 fibers, making the MPO-24 ideal for older architectures.

For high-density trunking: MPO-24 serves as a backbone cable that supports multiple MPO-12 or MPO-8 links. These can be broken out into individual connections using conversion cassettes or breakout cables (e.g., MPO-24 to 3×MPO-8).

Recommendation: MPO-24 cables are best used in backbone networks and high-density environments. They also serve well in breakout scenarios where multiple fiber links need to be aggregated into a single cable.

Here is a brief summary of selecting the suitable MPO cable for optical transceivers.

The correct selection of MPO cables is crucial to building a reliable, efficient, and scalable network. By understanding the fiber count and lane configuration of your transceivers, you can choose the right MPO cable to maximize performance and minimize fiber wastage. AICPLIGHT MPO cables are engineered to support a wide range of transceivers and network architectures, providing reliable performance for 40G, 100G, 400G, and 800G environments. By selecting the appropriate cable, you can ensure that your network is built for the future while meeting the high-performance demands of today's AI, cloud, and high-speed data applications.
