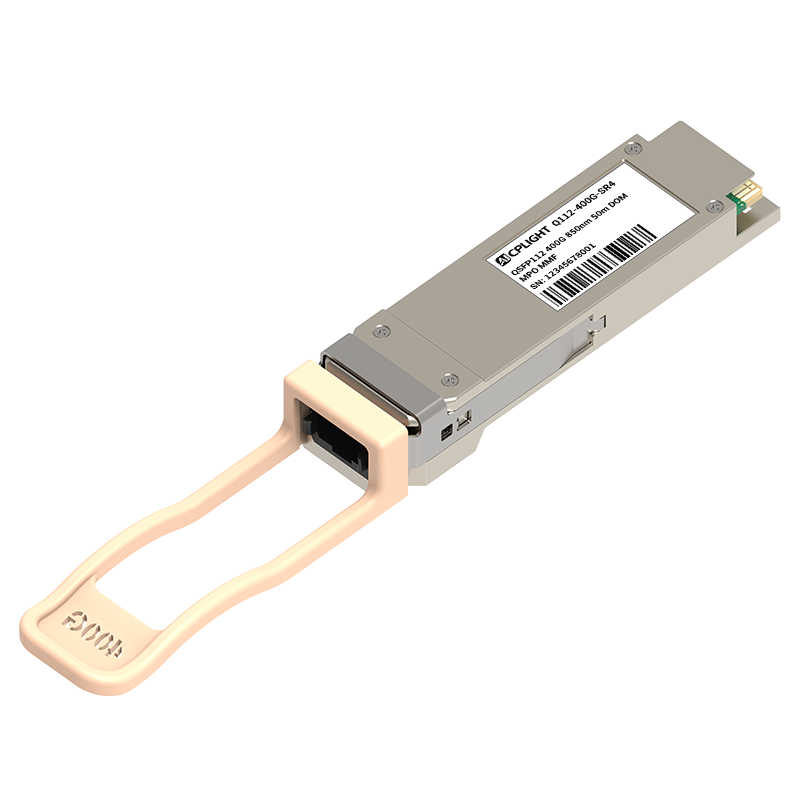

NVIDIA/Mellanox MMA1Z00-NS400 Compatible 400GBASE-SR4 QSFP112 PAM4 850nm 50m DOM MPO-12/APC MMF InfiniBand NDR Optical Transceiver Module for ConnectX-7 HCA
P/N: Q112-400G-SR4
US$339.00
10
Reviews
4
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
(1000 In Stock)

Product Highlights

Qualified for InfiniBand NDR End-to-End Systems
Built-in Broadcom 7nm Chip, Max. Power Consumption 9W
Support 800G-to-Two 400G Links for Switch-to-Adapter
Support Configuration at 1/2 speed for 200G (2x 100G)
4x 106.25G PAM4 Retimed 400GAUI-4 Electrical Interface
Hot-pluggable QSFP112 Form Factor
Compliant with QSFP112 MSA CMIS Rev4.0, IEEE 802.3db and Class 1 Laser Safety
100% Verified by the Original, Perfectly Compatible with ConnectX-7 Adapters
See more
NVIDIA/Mellanox MMA1Z00-NS400 Compatible 400GBASE-SR4 QSFP112 PAM4 850nm 50m DOM MPO-12/APC MMF InfiniBand NDR Optical Transceiver Module for ConnectX-7 HCA
The NVIDIA/Mellanox MMA1Z00-NS400 Compatible QSFP112 InfiniBand NDR Optical Transceiver is an InfiniBand 400Gb/s Single-port QSFP112, SR4 multimode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Short Reach 4-channel (SR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using OM4 multi-mode fibers. Used in ConnectX-7/QSFP112 adapters linked to Twin-port transceivers in 2x400G IB switches. When connected to a 1:2 splitter fiber cable, there are only 2 channels on the split end and only 2-channels in the 400G transceiver will be activated, automatically producing 200G speeds and reducing power.
It is an ideal solution for supercomputing and is suitable for InfiniBand NDR end-to-end systems, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnection.
Specifications
NVIDIA/Mellanox InfiniBand Compatible
MMA1Z00-NS400
Vendor Name
AICPLIGHT
Form Factor
QSFP112
Max Data Rate
425Gbps (4x106.25Gb/s)
Wavelength
850nm
Max Cable Distance
30m@OM3/50m@OM4
Connector
MPO-12 (APC)
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-4.6~4dBm
Minimum Receiver Power
-6.4dBm
Power Budget
1.8dB
Receiver Overload
4.0dBm
Max Power Consumption
9W
Extinction Ratio
>2.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
4x100G-PAM4
Modulation (Optical)
4x100G-PAM4
CDR (Clock and Data Recovery)
TX & RX
Inbuilt FEC
Yes
Protocols
IEEE Std 802.3db, QSFP112 MSA, CMIS 4.0
Warranty
5 Years
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Questions & Answers
edit icon Ask a question
All (4) Application (1)Product (1)Compatibility (1)Installation (1)
Q:

What should I do if there is no signal?

by Y***m on 2025-07-08 08:42:45

A:

Check polarity, cleanliness, and compatibility first.

by Helpful on 2025-07-08 09:43:55

like icon Helpful 0
comment icon Comment 0
Q:

Can I use this module in AI training environments?

by i***m on 2025-07-08 08:29:28

A:

Yes, our IB and high-speed Ethernet modules are suitable for AI workloads.

by CPLIGHT on 2025-07-08 09:15:14

like icon Helpful 0
comment icon Comment 0
Q:

Are MSA standards followed?

by l***m on 2025-07-07 16:54:20

A:

Yes, all modules conform to the appropriate MSA standards.

by Helpful on 2025-07-07 17:38:43

like icon Helpful 0
comment icon Comment 0
Q:

What is the average power consumption of this transceiver?

by o***m on 2025-07-07 13:57:56

A:

The average power consumption varies by model, but it typically ranges between 3W to 12W.

by CPLIGHT on 2025-07-07 14:50:04

like icon Helpful 0
comment icon Comment 0
