Ubiquiti Compatible 10GBASE-SR SFP+ 10G 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module
P/N: SFP-10G-T-30
US$180.00
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Marvell Chip, Max. Power Consumption 2.9W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Terminated RJ45 Connectors, Allowing 10G Bandwidth over Cat6a/7 Cable
Hot Pluggable SFP+ MSA , IEEE 802.3an and IEEE 802.3az Compliant
Specifications
Q&A
Reviews
Resources
Ubiquiti Compatible 10GBASE-SR SFP+ 10G 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module

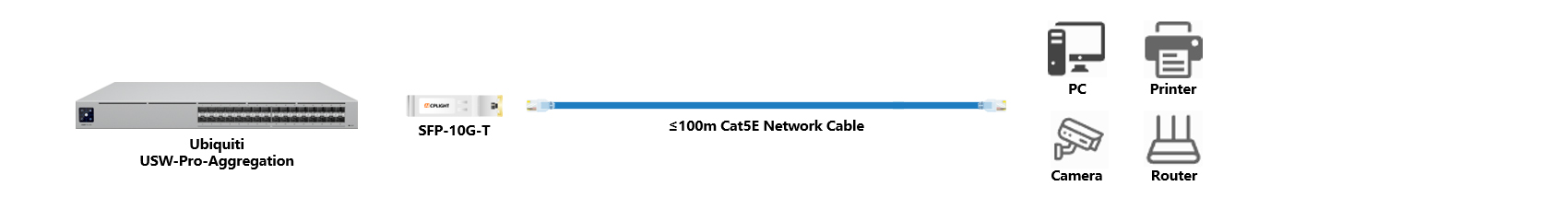

The 10GBASE-T module offers connectivity options at 10Gbps data rates. The module features an SFP+ form factor and an RJ-45 interface, enabling the use of CAT6A/CAT7 cables for connecting to endpoints with embedded 10GBASE-T ports. It supports distances of up to 30 meters, providing a cost-effective solution for intra-rack and inter-rack connections.
This transceiver is compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFP+ MSA. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
Specifications
Part Number
SFP-10G-T-30
Vendor Name
CPLIGHT
Form Factor
SFP+
Max Data Rate
10Gbps
Cable Distance
30m@Cat6a/Cat7 or Better
Typical Power Consumption
≤2.9W
MTBF
5,000,000 Hours
Commercial Temperature Range
0 to 70°C (32 to 158°F)
EMC (Electro Magnetic Compatibility)
Supported
Protocols
IEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431
Certification
Features
