Arista Compatible 800GBASE 2 x SR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF Optical Transceiver Module
P/N: OSFP-800G-2xSR4
US$6000.00
8
Questions
4-Year Warranty
30-Day Returns
30-Day Exchange

Product Highlights

Built-in Marvell 6nm DSP Chip, Max. Power Consumption 16W
Parameter Tests for Superior Performance, Quality, and Reliability
High-speed Connectivity Compliant to IEEE 802.3ck
Hot Pluggable OSFP MSA Compliant
Support 2x 400G or 4x 200G Breakout for Higher Port Density
8x106.25G PAM4 Retimed 8x100GAUI-8 C2M Electrical Interface
For Higher Bandwidth in Hyperscale Data Centers and Cloud Infrastructure
Class 1 Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
See more
Specifications
Q&A
Reviews
Resources
Arista Compatible 800GBASE 2 x SR4/SR8 OSFP Finned Top PAM4 850nm 50m DOM Dual MPO-12/APC MMF Optical Transceiver Module
The 800GBASE-SR8 OSFP Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 50m over OM4 multimode fiber (MMF) using a wavelength of 850nm via dual MTP/MPO-12 connectors. This transceiver is compliant with IEEE P802.3ck, OSFP MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center and Breakout 2x 400G SR4 application.
Specifications
Part Number
OSFP-800G-2xSR4
Vendor Name
CPLIGHT
Form Factor
Twin-port OSFP Finned Top
Max Data Rate
850Gbps (8x 106.25Gbps)
Wavelength
850nm
Max Cable Distance
30m@OM3/50m@OM4
Connector
Dual MTP/MPO-12 APC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PD
TX Power
-4.6~4dBm
Minimum Receiver Power
-6.4dBm
Power Budget
1.8dB
Receiver Overload
4dBm
Max Power Consumption
16W
Extinction Ratio
＞2.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Modulation (Electrical)
8x100G-PAM4
Modulation (Optical)
Dual 4x100G-PAM4
CDR (Clock and Data Recovery)
TX & RX Built-in CDR
Inbuilt FEC
Yes
Protocols
OSFP MSA 5.0 CMIS 5.1
Warranty
5 Years
Certification
Features
Questions & Answers
Ask a question
all (23) params (12)database (1)product (1)test2 (3)Application (6)
Q:

test

by q***m on 2025-05-14 09:43:37

A:

555555

by CPLIGHT on 2025-05-14 10:42:04

Helpful 0
Comment 0
Q:

tset

by 9***m on 2025-05-14 09:35:34

A:

eeee

by CPLIGHT on 2025-05-14 09:35:40

Helpful 0
Comment 0
Customer Reviews
Write a review
all (0)
Resources
Explore Our Extended Product Line

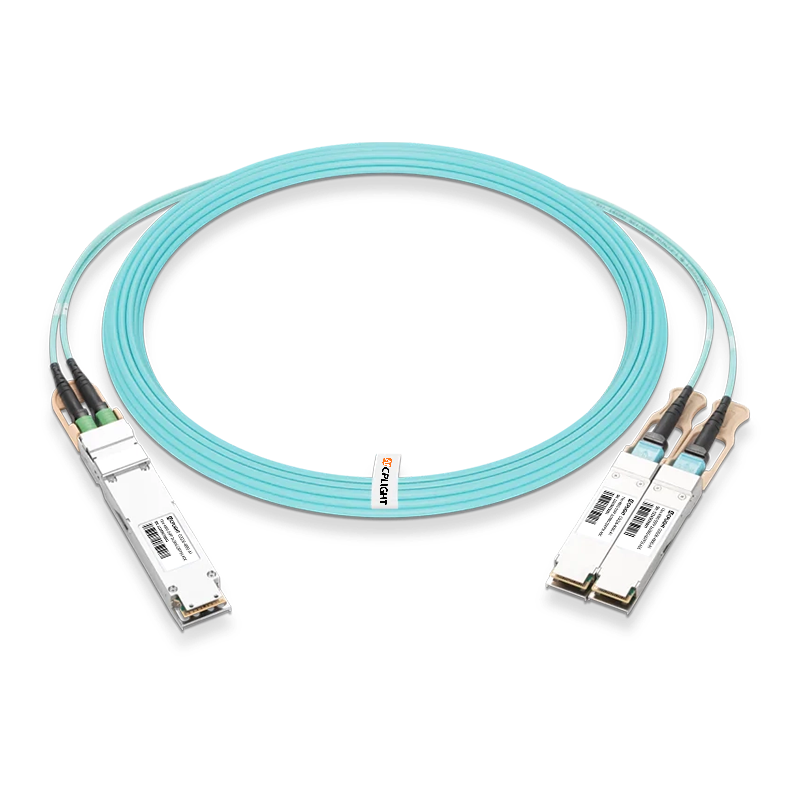

400G OSFP Finned Top to 2x 200G QSFP56 Breakout AOC, 3m (10ft)
