Cisco OSFP-800G-DR8 Compatible 800GBASE 2xDR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Ethernet Optical Transceiver Module
Cisco OSFP-800G-DR8 Compatible 800GBASE 2xDR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Ethernet Optical Transceiver Module
Cisco OSFP-800G-DR8 Compatible 800GBASE 2xDR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Ethernet Optical Transceiver Module
P/N: OSFP-800G-2xDR4
US$599.00
4
Solds
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1000 In Stock）

Product Highlights

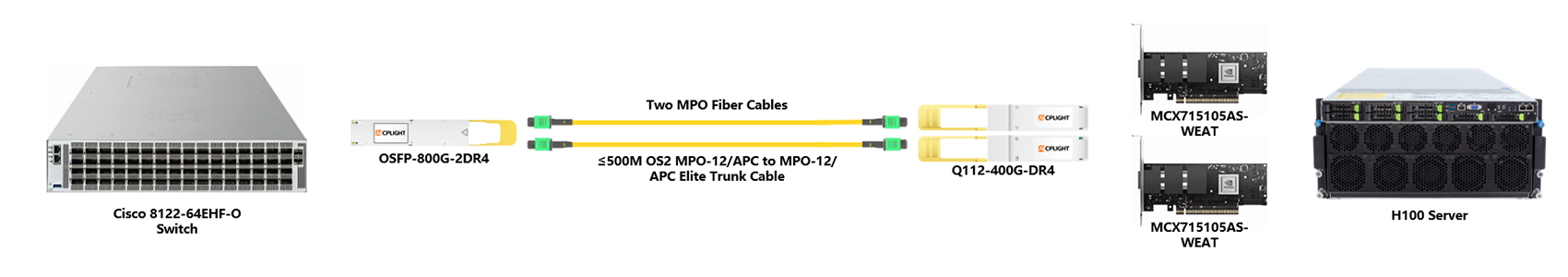

Connect New 800G Sites to Legacy 400G Sites via 2x400G Breakout
Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 16.5W
Support 2x 400G, 4x 200G or 8x 100G Breakout for Higher Port Density
8x106.25G PAM4 Retimed 800GAUI-8 Electrical Interface
High-speed Connectivity Compliant to IEEE 802.3ck and IEEE 802.3cu-2021
Parameter Tests for Superior Performance, Quality, and Reliability
Hot Pluggable OSFP MSA Compliant
Self-developed 53G EML Laser Chip to Ensure Production
See more
Specifications
Q&A
Reviews
Resources
Cisco OSFP-800G-DR8 Compatible 800GBASE 2xDR4/DR8 OSFP Finned Top PAM4 1310nm 500m DOM Dual MPO-12/APC SMF Ethernet Optical Transceiver Module
The 800GBASE-DR8 OSFP transceiver supports up to 500m link lengths over single-mode fiber (SMF) via dual MTP/MPO-12 connectors. This transceiver is compliant with IEEE 802.3ck, IEEE 802.3cu and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Breakout 2x 400G DR4 or 8x 100G DR, Data Center and Cloud Networks.
Specifications
Part Number
OSFP-800G-2xDR4
Vendor Name
AICPLIGHT
Form Factor
Twin-port OSFP Finned Top
Max Data Rate
850Gbps (8x 106.25Gbps)
Wavelength
1310nm
Max Cable Distance
500m
Connector
Dual MTP/MPO-12 APC
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-2.9~4.0dBm
Minimum Receiver Power
-5.9dBm
Power Budget
3dB
Receiver Overload
5dBm
Max Power Consumption
16.5W
Extinction Ratio
＞3.5dB
Modulation (Electrical)
8x100G-PAM4
Modulation (Optical)
Dual 4x100G-PAM4
Packaging Technology
COB (Chip on Board) Packaging
Modulation Format
PAM4
CDR (Clock and Data Recovery)
TX & RX Built-in DSP
Inbuilt FEC
No
Protocols
IEE802.3ck, IEEE 802.3cu, OSFP MSA
Warranty
5 Years
