NVIDIA/Mellanox MMS4A20-XM800(980-9IAT0-00XM00) Compatible 800G DR4 OSFP224 Flat Top PAM4 1310nm 500m DOM MTP/MPO-12 APC InfiniBand XDR Optical Transceiver Module
NVIDIA/Mellanox MMS4A20-XM800(980-9IAT0-00XM00) Compatible 800G DR4 OSFP224 Flat Top PAM4 1310nm 500m DOM MTP/MPO-12 APC InfiniBand XDR Optical Transceiver Module
NVIDIA/Mellanox MMS4A20-XM800(980-9IAT0-00XM00) Compatible 800G DR4 OSFP224 Flat Top PAM4 1310nm 500m DOM MTP/MPO-12 APC InfiniBand XDR Optical Transceiver Module
P/N: OSFP-800G-DR4
$1619.00
3
Solds
2
Reviews
2
Questions
safeguard
4-Year Warranty
30-Day Returns
30-Day Exchange
（1 In Stock）

Product Highlights

Qualified for InfiniBand XDR End-to-End Systems
Built-in Broadcom DSP Chip, Max. Power Consumption 16W
Flat-Top OSFP224 for ConnectX-8 Adapter
Support 1.6T-to-Two 800G Links for Switch-to-Adapter
4x 200G-PAM4 Electrical to 4x 200G-PAM4 Optical Parallel
106G EML Laser Chip Support High-frequency Response with Minimal Signal Distortion
Parameter Tests for Superior Performance, Quality, and Reliability
Compliant with OSFP MSA, IEEE802.3dj, RoHS, and Class 1 Laser Safety, with DDM Support
See more
Specifications
Certification
Connectivity Solutions
Comparison Table
Q&A
Reviews
NVIDIA/Mellanox MMS4A20-XM800(980-9IAT0-00XM00) Compatible 800G DR4 OSFP224 Flat Top PAM4 1310nm 500m DOM MTP/MPO-12 APC InfiniBand XDR Optical Transceiver Module
The OSFP224-DR4-800G-FL is an 800Gb/s single-mode optical transceiver supporting the XDR 800Gb/s InfiniBand protocol. The line rate is 200Gb/s using Pulse Amplitude Modulation of 4- channels denoted as 200G-PAM4. It is used to link the Quantum-X800 QM3x00 switches using Twin-port OSFP224 2x 800Gb/s transceivers to the dual 800Gb/s ConnectX-8 mezzanine card located internally in the GB200-based, liquid cooled system. The length of OSFP224 DR4 is up to 500 meters over SMF MTP/MPO-12 APC cable. This transceiver is compliant with IEEE 802.3dj, CMIS Rev 5.2 and OSFP MSA Specification Rev 5.1. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It's suitable for 800G InfiniBand, Data Centers and Cloud Networks and supports interconnection between the same type of modules.
Specifications
Form Factor
OSFP224(Flat Top)
Data Rate
850Gbps
Media
SMF
Wavelength
1310nm
Connector
MTP/MPO-12 APC
Distance
500m
Transmitter Type
EML
Receiver Type
PIN
Electrical Modulation
4x 212.5G PAM4
Optical Modulation
4x 212.5G PAM4
Power Consumption
≤15.0W
Case Operating Temperature
0 to 70°C (32 to 158°F)
Protocol
800 Gigabit Ethernet 800G RoCE 800G Infiniband XDR
Application
NIC to Switch NIC to NIC Other Optical Links
Certification
Product
Product
Product
Product
Product
Product
Product
Product
Product
Product
Connectivity Solutions

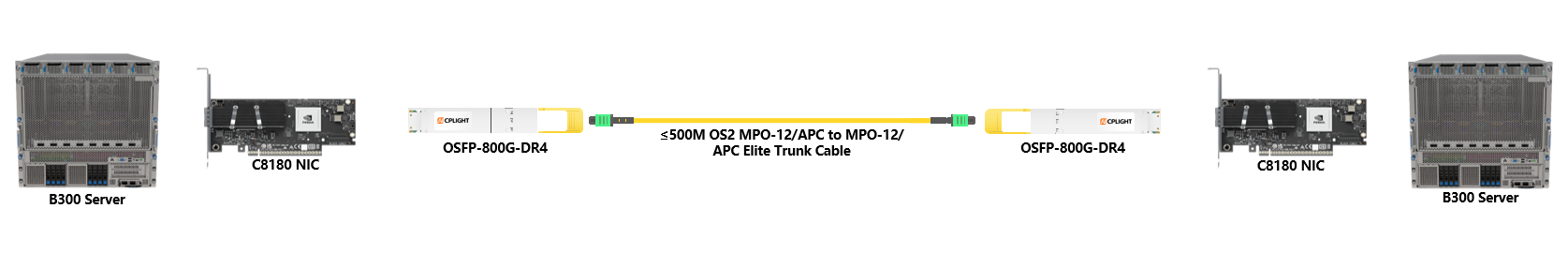

NVIDIA 800G NIC links：800G OSFP to 800G OSFP
All
NVIDIA 800G NIC links：800G OSFP to 800G OSFP
Comparison Table
1.6T 2xDR4/DR8 OSFP Finned Top 1310nm 500m Dual MPO-12/APC XDR Module, NVIDIA(IB)
OSFP-1.6T-2DR4
1.6T 2xFR4/FR8 OSFP Finned Top 1310nm 2km Dual Duplex LC/UPC XDR Module, NVIDIA(IB)
OSFP-1.6T-2FR4
800G OSFP224 Flat Top MMS4A20 DR4 500m 1310nm MPO-12/APC XDR, NVIDIA(IB)
OSFP-800G-DR4
Form Factor OSFP224(Finned Top)OSFP224(Finned Top)OSFP224(Flat Top)
Data Rate 1700Gbps1700Gbps850Gbps
Media SMFSMFSMF
Wavelength 1310nm1310nm1310nm
Connector Dual MTP/MPO-12 APCDual Duplex LC UPCMTP/MPO-12 APC
Distance 500m2km500m
Transmitter Type DFBDFBEML
Receiver Type PINPINPIN
Electrical Modulation 8x 212.5G PAM48x 212.5G PAM44x 212.5G PAM4
Optical Modulation Dual 4x 212.5G PAM4Dual 4x 212.5G PAM44x 212.5G PAM4
Power Consumption ≤25.0W≤26.0W≤15.0W
Case Operating Temperature 0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)0 to 70°C (32 to 158°F)
Protocol 1600 Gigabit Ethernet 1600G RoCE 2x 800G Infiniband XDR1600 Gigabit Ethernet 1600G RoCE 2x 800G Infiniband XDR800 Gigabit Ethernet 800G RoCE 800G Infiniband XDR
Application Switch to Switch Switch to NIC Other Optical LinksSwitch to Switch Other Optical LinksNIC to Switch NIC to NIC Other Optical Links
Form Factor
Data Rate
Media
Wavelength
Connector
Distance
Transmitter Type
Receiver Type
Electrical Modulation
Optical Modulation
Power Consumption
Case Operating Temperature
Protocol
Application
1.6T 2xDR4/DR8 OSFP Finned Top 1310nm 500m Dual MPO-12/APC XDR Module, NVIDIA(IB)
OSFP-1.6T-2DR4
1.6T 2xFR4/FR8 OSFP Finned Top 1310nm 2km Dual Duplex LC/UPC XDR Module, NVIDIA(IB)
OSFP-1.6T-2FR4
800G OSFP224 Flat Top MMS4A20 DR4 500m 1310nm MPO-12/APC XDR, NVIDIA(IB)
OSFP-800G-DR4
OSFP224(Finned Top)
OSFP224(Finned Top)
OSFP224(Flat Top)
1700Gbps
1700Gbps
850Gbps
SMF
SMF
SMF
1310nm
1310nm
1310nm
Dual MTP/MPO-12 APC
Dual Duplex LC UPC
MTP/MPO-12 APC
500m
2km
500m
DFB
DFB
EML
PIN
PIN
PIN
8x 212.5G PAM4
8x 212.5G PAM4
4x 212.5G PAM4
Dual 4x 212.5G PAM4
Dual 4x 212.5G PAM4
4x 212.5G PAM4
≤25.0W
≤26.0W
≤15.0W
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
1600 Gigabit Ethernet 1600G RoCE 2x 800G Infiniband XDR
1600 Gigabit Ethernet 1600G RoCE 2x 800G Infiniband XDR
800 Gigabit Ethernet 800G RoCE 800G Infiniband XDR
Switch to Switch Switch to NIC Other Optical Links
Switch to Switch Other Optical Links
NIC to Switch NIC to NIC Other Optical Links
Questions & Answers
edit icon Ask a question
All (2) Application (2)
Q:

Is this product designed for enterprise LANs?

by 3***m on 2025-09-10 03:52:27

A:

Yes, lower speed modules are ideal for LAN and campus networks.

by AICPLIGHT on 2025-09-10 23:18:23

like icon Helpful 0
comment icon Comment 0
Q:

What are the application scenarios for OSFP-1.6T-2DR4?

by z***m on 2025-06-03 17:29:58

A:

This module is primarily used on the ConnectX-8 network card side, connected via a 12-fiber direct or breakout MPO jumper to the OSFP-DR8-1.6T-FL module in the QuantumX-800 QM3400 or QM3200 switches.

by AICPLIGHT on 2025-06-04 08:35:42

like icon Helpful 0
comment icon Comment 0
Customer Reviews
edit icon Write a review
All (2) Compatibility (1)Customer Support (1)
J
J***m
2025-08-11 12:18:03
Confirmed Purchase
5.0

Full compliance with MSA standards made cross-vendor deployment easy. It worked perfectly in our mixed-brand environment.

link icon Helpful 0
comment icon Comment 0
p
p***m
2025-07-15 23:44:08
Confirmed Purchase
5.0

Post-sales follow-up ensured we were satisfied and fully operational. This level of care is rare these days.

link icon Helpful 0
comment icon Comment 0
